DBI-SALA X200 harness class A Vest
FPH1402022CA
$474.70
3M DBI-SALA ExoFit X200 Class A (fall arrest) harness. Patented double-locking buckles, stand-up dorsal ring, sub-pelvic strap. CSA Z259.10-18 compliant. Small, Medium, Large, X-Large, 2X-Large.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
DBI-SALA X200 harness class A Vest

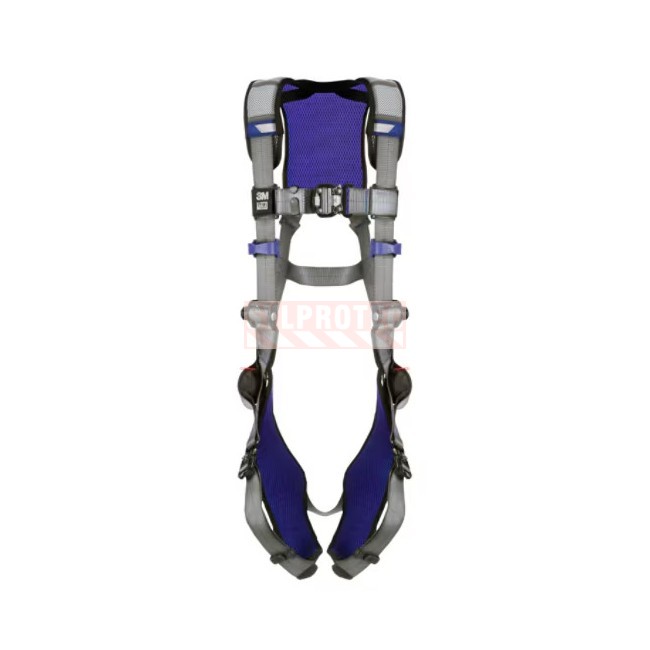

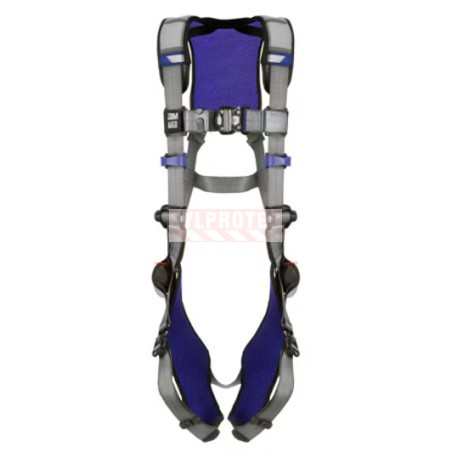

The ExoFit X200 Class A (fall arrest) harness by 3M DBI-SALA is designed for professionals demanding reliability, comfort and safety during work at height. Ideal for: commercial construction, industrial maintenance and regular work at height. Made in the USA, compliant with CSA Z259.10-18. This harness is vest style, with vertical shoulder straps for easy donning and optimal comfort.
| Size | Sylprotec Code | DBI-SALA Model | 3M Purchase Code |
|---|---|---|---|
| Small | FPH1402020CA | 1402020C | 7012817753 |
| Medium | FPH1402021CA | 1402021C | 7012817755 |
| Large | FPH1402022CA | 1402022C | 7012817757 |
| X-Large | FPH1402023CA | 1402023C | 7012817759 |
| 2X-Large | FPH1402024CA | 1402024C | 7012817761 |
Technical description : features and components
This ExoFit X200 safety harness features a dorsal D-ring with automatic vertical positioning (stand-up) and anti-slip plate. The patented 3M double-locking quick-connect buckles keep the adjustment secure throughout the shift, eliminating frequent readjustments. The torso buckle is swivel and lockable. The sub-pelvic strap prevents orthostatic suspension syndrome in the event of a fall.
The 6,000 lb polyester webbing offers superior UV and chemical resistance. Zinc-plated alloy steel hardware is unpainted for easy visual inspection. Available in: Small, Medium, Large, X-Large, 2X-Large.
Load capacity and certified safety standards
Maximum load: 310 lb / 140 kg including clothing, tools and equipment. Compliant with CSA Z259.10-18 for the Canadian market. Made to order by 3M. Allow approximately 1 month lead time.
Materials : strength, durability and light weight
6,000 lb (27 kN) polyester webbing: superior resistance to acids and UV. Unpainted hardware: facilitates visual defect inspection. The quick-connect leg buckles use a hybrid aluminum-alloy and zinc-plated-steel construction, combining light weight and strength at the highest-stress points; this advanced material engineering, specific to 3M DBI-SALA harnesses, outperforms entry-level harnesses by reducing fatigue without sacrificing durability. Multi-color webbing: quick identification of anchor points and adjustments. Plastic tips on webbing ends: prevent fraying over time.
Application and recommended uses
Suitable for: commercial construction, industrial maintenance and regular work at height. Meets the requirements of Canadian Labour Code and CNESST (Quebec) regulations for work at height. Sizes available: Small, Medium, Large, X-Large, 2X-Large.
Inspection and service life : verification guide
Inspect before each use: check for cuts, fraying, broken stitching and deformed hardware. Inspection by a qualified person is required at least annually. Recommended service life: 5 years with regular use. Any harness subjected to a fall must be removed from service and destroyed immediately. Sylprotec offers annual inspection by a qualified technician.
Care and cleaning to extend service life
Clean with mild soap and lukewarm water (max 37 C / 98.6 F). Never use bleach, solvents or abrasive products. Air dry away from direct sunlight. Store hanging in a clean, dry location away from chemicals and heat sources.
FAQ : frequently asked questions about this product
Is this harness compliant with Canadian standards?
Yes. The ExoFit X200 Class A (fall arrest) harness complies with CSA Z259.10-18, the mandatory Canadian standard for safety harnesses. The "C" suffix in the 3M model code confirms the Canadian-certified variant. For CNESST inspections in Quebec, a harness bearing only ANSI (American) certification would not be accepted. CSA compliance is mandatory on Quebec construction sites and under the Canada Labour Code.
What is the recommended service life?
The recommended service life is 5 years maximum from the date of first use under regular conditions. This may be reduced by exposure to UV, chemicals or heat. Annual inspection by a qualified person is required. Any harness subjected to a fall arrest load or showing visible damage must be immediately removed from service and destroyed by cutting the webbing to prevent accidental reuse. Sylprotec offers qualified technician inspection.
What is the difference between the X200 and other ExoFit series?
The X100, X200 and X300 series all share the same 310 lb capacity and 6,000 lb polyester webbing. The X200 stands out with its patented 3M double-locking quick-connect buckles that stay in place without constant readjustment. Compared to the X300, the X200 uses alloy steel instead of aluminum hardware and does not include the RFID Connected Safety ID system. It is the ideal choice for regular professional use combining durability and ergonomics.
Complementary suggestions
To complete your fall protection system, add a leading-edge SRL retractable (FPLR80302-12LE) or an energy-absorbing lanyard (FPL54000) as your fall arrest connection. Protect the head with a Peak T2 helmet with integrated chin strap (TA222), the eyes with safety glasses (YASF401BG) and hearing with earplugs (OA101). For the job, add suitable gloves (GMXVSB) and a flame-resistant garment (V7705).
Under “Accessories” at the bottom of the page. For safe storage and transport of your equipment at height, a Peakworks bag (FPBAG) keeps your gear clean and inspection-ready.
FPH1402022CA
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- ExoFit X200
- Product code
- FPH1402022CA
- Product use
- Designed for construction work
- Approved/Certified
- Compliant with CSA Z259.10-18
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Choice of format
- Size small (S) to double extra large (2XL) available
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Patented 3M double-locking quick-connect buckles
- Additional Features
- Integrated SRL adapter and 3M Connected Safety ID (RFID)
- Characteristic adding safety
- Polyester webbing with a 6,000 lb (26.7 kN) strength rating
- Comfort features
- Equipped with a sub-pelvic strap providing greater comfort during suspension
- Characteristics of metal parts
- Unpainted metal parts for easy visual inspection; patented 3M self-locking quick-connect leg buckles made of aluminum alloy and zinc-plated steel (hybrid construction), combining light weight and strength
- Post-suspension relief strap
- Includes trauma straps to allow the fallen worker to stand up while awaiting recovery and avoid losing consciousness
- Includes
- With 1 zinc-plated steel dorsal D-ring in automatic vertical position
- Includes 3
- The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
- Type of retaining straps
- Auto-resetting lanyard keepers
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Classification
- Class A — dorsal D-ring (A) for fall arrest
- Function of attachment points
- Dorsal D-ring: fall arrest
- Type of harness
- Vest-style harness
- Material1
- Polyester
- Material2
- Aluminum
- Material3
- Aluminum alloy / zinc-plated steel
- Washable
- Wash with mild soap and lukewarm water at 98.6°F / 37°C. Never use bleach or abrasive chemicals. Air dry only
- Length (in/cm)
- 11 in / 27.94 cm
- Width (in/cm)
- 11 in / 27.94 cm
- Height (in/cm)
- 4 in / 10.16 cm
- Weight (lb/kg)
- 5.87 lb / 2.66 kg
- Availability
- Please note: Available only on special order
- Sold by
- Unit
- Color
- Gray/Blue
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker wearing this harness is 310 lb / 140.6 kg, including clothing, tools, etc
