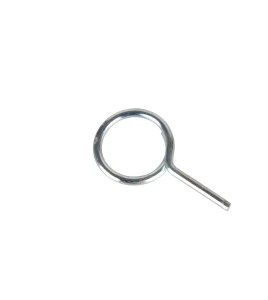

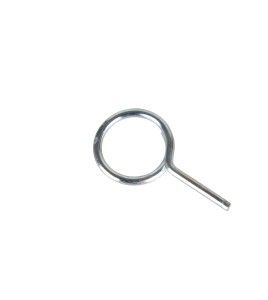

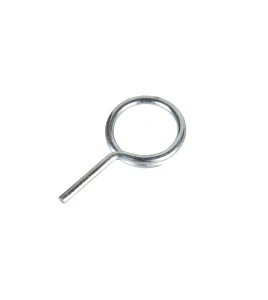

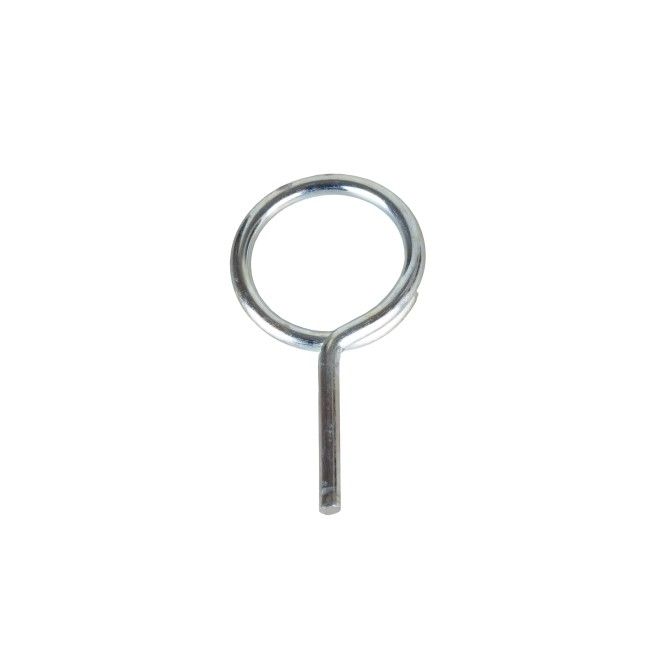

Single-point pull pin for Diamond and Strike First extinguishers

Safety Pin for Diamond and Strike First Extinguishers

This specific safety pin is designed exclusively to fit the triggering mechanisms of Diamond and Strike First brand fire extinguishers. It ensures the integrity of the equipment by locking the activation handle, preventing accidental discharge while guaranteeing rapid removal during an emergency.

For 5 lbs Strike-First fire extinguishers, it is harder to state whether the IPGOUP or the IPGOUPD pull pin is suitable, as the manufacturer has alternated between them over the years. You must measure the pinhole and select the correct pin based on its diameter. For 5 lbs Strike-First portable fire extinguisher manufactured after 2015, the suitable pull pin is this one (IPGOUPD).

2 ½ lbs Strike-First extinguishers require the other model of pull pin (IPGOUP).

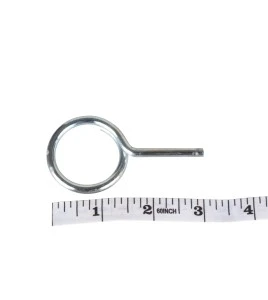

Dimensions: Length 7.8 cm (3 1/16”), diameter 4.5 mm (3/16”).

Material: Steel.

Why use a safety pull pin?

The purpose of a safety pull pin is to prevent the accidental activation of a fire extinguisher. You will understand its importance if you ever activate a powder extinguisher indoors. In few seconds, you will have a huge cloud of yellow powder that reaches into every nook and cranny and will require hours of cleaning.

What to do if the safety pull pin is missing?

If during the inspection you notice that the safety pull pin of the extinguisher is missing, ask yourself the following question: Has the extinguisher been used? If that is the case, we recommend to contact our customer service and schedule a maintenance service by one of our technicians. Our price list is available under the Services tab. We serve the Greater Montreal area.

Remember that chemical powder fire extinguishers become depressurized following activation. The compressed propellant gas escapes and renders the extinguisher non-functional even if some powder still remains inside. This is why it is important to ensure the extinguisher is in proper working condition before reinstalling it. You can use a replacement safety pull pin to secure your fire extinguisher.

Why Choose This Specific Safety Pin?

• Precise Fit: Unlike universal models that may have play, this pin is calibrated exactly for the dimensions of Diamond and Strike First valves.

• Operational Reliability: Its design ensures it will not get stuck in the mechanism, allowing for immediate intervention during a fire.

• Industrial Strength: Made of robust metal, it resists vibrations and demanding work environments without deforming.

• Certified Safety: Essential for keeping your equipment compliant with safety standards after an inspection or use.

Technical Specifications

• Compatibility: Diamond and Strike First extinguishers only.

• Material: High-strength metal.

• Usage: Replacement of the safety lock.

• Type: Specialized pin.

Frequently Asked Questions (FAQ)

Can I use this pin on an Amerex extinguisher?

No, this pin is specifically engineered for Diamond and Strike First models. For an Amerex extinguisher, it is best to use the universal standard safety pin model.

Why is it important to use the manufacturer's exact pin?

An ill-fitting pin could either fall out too easily (risk of accidental discharge) or be too difficult to remove in a moment of panic. Using the dedicated model guarantees optimal operation.

Is the pin corrosion-resistant?

Yes, it features a protective coating that prevents rust, which is essential for extinguishers installed in humid or industrial areas.

How do I secure this pin once installed?

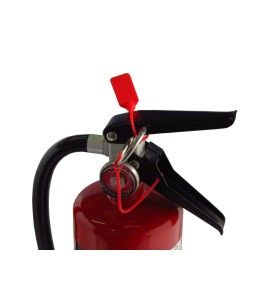

It must be accompanied by a tamper seal. The seal holds the pin in place and breaks easily when you pull the pin to use the extinguisher.

OHS Expert Advice

"During your monthly inspections, always check that the pin is straight and not bent. A bent pin on a Strike First or Diamond extinguisher can make the device unusable when you need it most. If it shows signs of weakness or deformation, replace it immediately to ensure the safety of your occupants."

Do you need additional safety equipment?

Check out these items:  18-inch orange warning cone (EPTCONE), yellow plastic monthly inspection tag (IPTAG4), 10 lb class ABC portable powder fire extinguisher (EXABC10), outdoor plastic surface cabinet (EC9), 20 lb portable powder fire extinguisher (EXABC20).

Under “Accessories” at the bottom of the page. If you are looking for work equipment, check out the following products: Stopper II cover without local alarm (ECSTI1200FRE), manual wall-mounted fire alarm station (ECST270), or Weather Stopper cover (ECSTI3150FRE).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.
