Wall hanger brackets for Flag brand 5 lb CO2 portable fire extinguishers

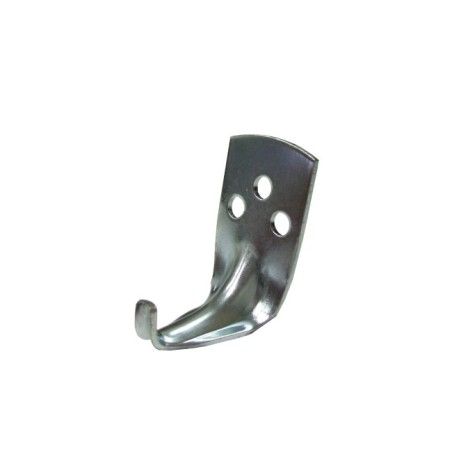

Flag wall hook for 5 lb CO2 extinguisher

This wall hook is designed for 5 lb (2.27 kg) Flag CO2 portable extinguishers. This bracket is also compatible with other extinguisher models from various manufacturers; please contact Sylprotec customer service to confirm your extinguisher's compatibility.

Specifications of the Flag wall hook

• Type: wall hook for portable extinguisher.

• Compatibility: 5 lb (2.27 kg) Flag CO2 portable extinguishers.

• Dimensions: height 1.5 in (3.81 cm) x length 3 in (7.6 cm) x width 3 in (7.6 cm).

• Weight: 0.18 lb (0.081 kg).

We offer several sizes of the same hook (le CFL10 or le CFL15). When it comes to the pound rating, it refers to the agent content, not the total weight; the hook is designed for the extinguisher's total weight. The key point is that the cylinder hangs properly on the hook.

Location of the portable extinguisher

Per NFPA 10, the operational readiness of a portable extinguisher is essential: it should always be kept in the same place; you should never have to look for an extinguisher.

• Strategic location: place the extinguisher where it is easily accessible and clearly visible.

• Not too close to fire: avoid being right next to a potential fire source such as the stove or heating appliances.

• Within reach: install it within reach but out of children's reach, and never set on the floor.

Every workplace is different: the equipment needed depends on the risk level (low, moderate or high), often several at once, and on the fire types possible (class A, B, C, D or K). Almost every workplace has class A, B and C fire risks. To assess your needs, use Sylprotec's portable-extinguisher inspection and maintenance service.

Wall installation of the hook

Make sure the hook fits your extinguisher; an extinguisher must always be installed on a purpose-built bracket or cabinet, securely screwed to the wall. The larger the extinguisher cylinder, the longer the hook must be: once installed, the extinguisher must be perfectly vertical, otherwise it will hang diagonally.

• Height: mount the hook so the extinguisher is at least 10 cm (4 in) and at most 1.5 m (5 ft) from the floor, for easy, ergonomic handling.

• Heavy extinguishers: NFPA 10 prescribes a height of 1.06 m (3 1/2 ft) from the floor for extinguishers of 40 lb and more (total weight) to avoid back injuries. At Sylprotec, we advise installing any extinguisher over 30 lb total weight at 3 1/2 ft.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation for all extinguishers; an extinguisher is only laid down when empty, and most hooks allow only the vertical position.

Maintenance and mounting tips

• Screw choice: the type of screw used to fix the hook to the wall does not affect the hook itself, unless you used the wrong screws for your wall material.

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the Flag wall hook

Which extinguishers does this hook fit?

5 lb (2.27 kg) Flag CO2 portable extinguishers. It also accommodates other models from different brands; contact Sylprotec to confirm compatibility.

How do I choose the right size?

The larger the cylinder, the longer the hook must be so the extinguisher stays perfectly vertical. See le CFL10 or le CFL15.

At what height should it be installed?

Between 10 cm (4 in) and 1.5 m (5 ft) from the floor; extinguishers over 30 to 40 lb are mounted lower (3 1/2 ft) to avoid back injuries.

Suggestions and accessories for your wall extinguisher hook

See also a 5 lb CO2 extinguisher (EXCO5), a Flag model hook 10 lb (CFL10), a Flag version hook 15-20 lb (CFL15), an ABC dry powder 10 lb (EXABC10), a semi-recessed cabinet (EC7), a 10 lb CO2 size (EXCO10), a pressurized-water extinguisher (EXEAU2.5) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.
