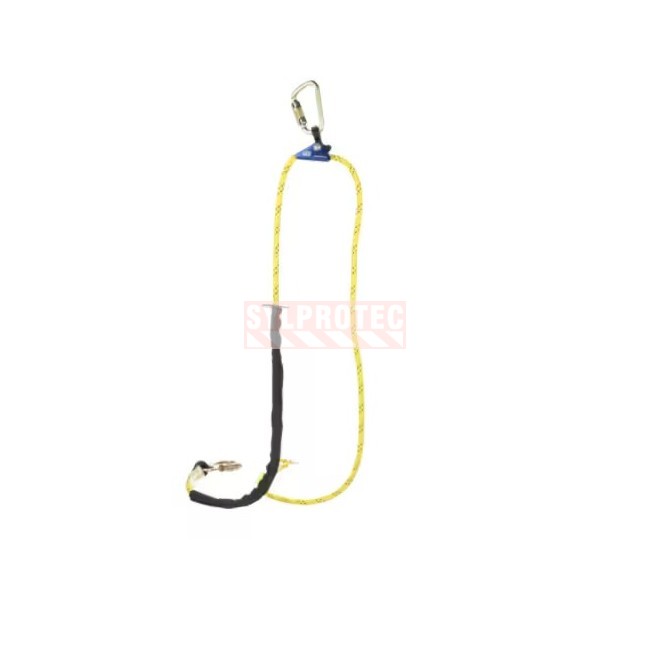

Adjustable nylon rope positioning lanyard DBI-SALA 3M 8 ft 1234081

Adjustable nylon rope positioning lanyard DBI-SALA(R) 3M(TM) for pole climbers

3M purchase code: 7012817091, 3M model number: 1234081.

Designed for linemen and utility pole climbers, this DBI-SALA(R) adjustable rope positioning lanyard wraps around the pole and connects to the side positioning D-rings of a belt or harness. The worker leans back in tension to work hands-free. The length adjusts one-handed with a rope adjuster to match the pole size. This is a work-positioning device, NOT a fall arrest device.

This lanyard also comes in other versions: a kernmantle rope model with steel hook (FPL1234070), a kernmantle rope model with aluminum hook (FPL1234071) and a nylon rope model (FPL1234080), as well as a web model (FPL1231016C). Consult the products activated by the green hyperlink or the Lanyards tab.

Material and connectors

The lanyard is made of a durable solid nylon rope, abrasion-resistant and fitted with a protective sleeve. It has a built-in wear indicator in the rope that signals when to replace it. A self-locking snap hook is fitted at one end, while the other carries a rope adjuster with a locking snap hook. The rope is 2.44 m (8 ft) long.

Adjustment and work positioning

To position himself, the climber passes the lanyard around the pole, connects the hardware to the side D-rings, then adjusts the length with the adjuster until he obtains a firm support. He can then lean back in tension and work hands-free. The 8 ft (2.44 m) rope offers an adjustment range suited to climbing and holding on utility poles.

Fall arrest system required

This positioning lanyard does NOT replace a fall arrest device. Free fall must remain limited to 2 ft (0.6 m). For fall protection, it must be used WITH a separate fall arrest system: a full-body harness with side D-rings and a fall arrest device (self-retracting lifeline, rope grab, or pole fall-limiting device such as the Cynch-Lok(TM)). Load capacity is 310 lb (141 kg) including the user, clothing and tools. This lanyard complies with CSA Z259.11 Class F (adjustable positioning lanyards) and OSHA 1910.268(g), 1926.502(e) and 1926.959 requirements.

Inspection

Like any protective equipment, this lanyard must be inspected before each use: rope, wear indicator, sleeve, adjuster, snap hook, hook and labels. An exposed wear indicator, or a cut, burned or frayed rope requires immediate removal from service. A formal annual inspection by a qualified person other than the user is required, as well as a complete inspection after any fall before returning the lanyard to service.

FAQ: Frequently asked questions about the rope positioning lanyard

Here are the most common questions about this positioning lanyard for pole climbers.

What is the difference between kernmantle rope and nylon rope?

Nylon rope (1234080, 1234081) is a durable solid nylon rope. Kernmantle rope models (1234070, 1234071) have a nylon core and a braided polyester sheath. The choice depends on the climber's preference and type of work.

Does this lanyard arrest a fall?

No. It is a work-positioning device that keeps the worker supported against the pole. It must always be combined with a separate fall arrest system (full-body harness and fall arrest device).

What is the load capacity?

Maximum capacity is 310 lb (141 kg), including the user, clothing and tools.

How is the length adjusted?

The length adjusts one-handed with the rope adjuster, allowing the support to be matched to the pole size during the climb.
