Shock Absorbing Web Lanyard DBI-SALA 3M 4 ft Single Leg Rebar Hook 1246571C
FPL1246571C
$420.10
4 ft (1.22 m) single-leg polyester web lanyard with a built-in shock absorber and one zinc-plated snap hook and one rebar hook. Rated capacity 132 to 310 lb (59.9 to 140 kg). Meets CSA Z259.11. Equipped with the 3M IRF identification system.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Fall protection: the single-leg shock absorbing lanyard for fixed work positions
3M purchase code: 7100328999, model: 1246571C

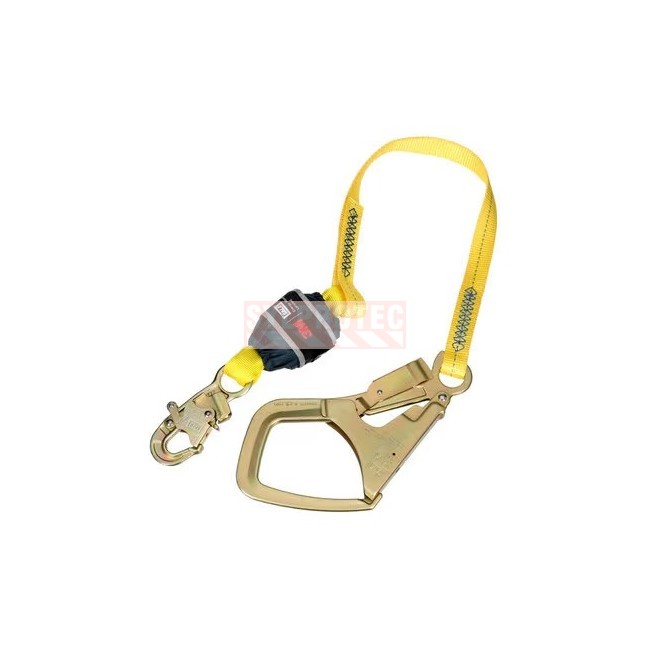

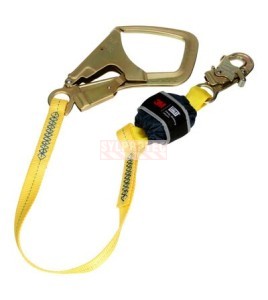

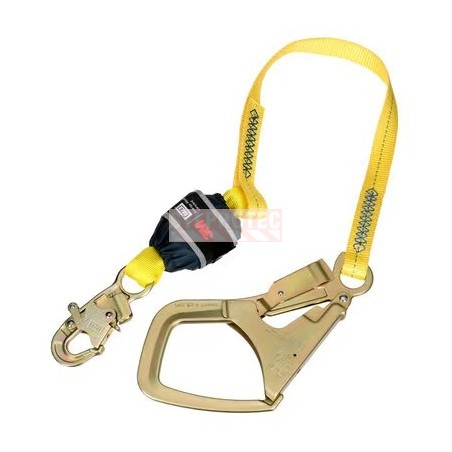

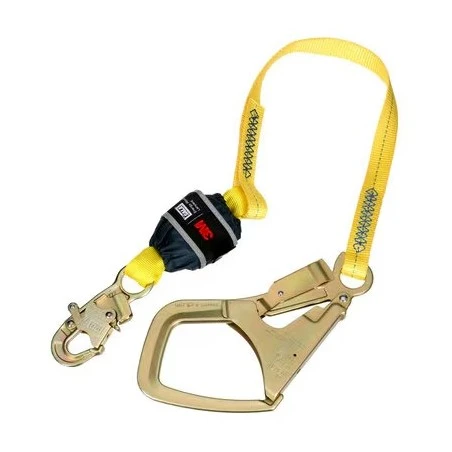

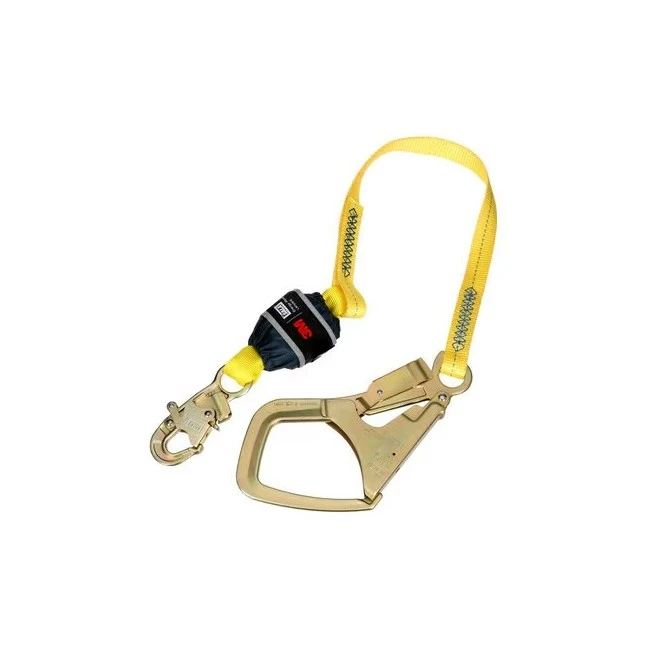

The DBI-SALA 3M 1246571C shock absorbing lanyard is a single-leg 4 ft (1.22 m) lanyard built for fall protection at height. Its yellow polyester web houses an energy absorber inside a black pack that deploys progressively during a fall to reduce the arresting forces transmitted to the worker.
It connects by means of one zinc-plated snap hook at the harness attachment point and one zinc-plated rebar hook at the anchorage end, ideal for tying off to large structures or rebar. The 3M IRF identification system makes equipment tracking and inspection easier throughout its service life.
- Length: 4 ft (1.22 m)
- Capacity: 132 to 310 lb (59.9 to 140.6 kg)
- Web material: polyester
- Connectors: 1 zinc-plated snap hook + 1 zinc-plated rebar hook
- Internal tear-action shock absorber
- Colour: yellow and black
- Standard: CSA Z259.11
- Country of origin: USA
For work requiring frequent movement between anchor points, we also offer the (double-leg Y-lanyard) model. This twin-arm configuration provides a 100% continuous connection, since the second arm is attached before the first is released.
Understanding the fall clearance window
Before using this energy-absorbing lanyard, calculate the fall clearance, that is, the free space required below the anchorage point to arrest a fall before the worker strikes the ground or an obstacle. This clearance window adds up from several elements: the length of the lanyard, the deployment of the energy absorber, the height of the worker, the dorsal D-ring slide and a safety margin. A miscalculation is one of the most common causes of serious injuries at height, even with compliant equipment.
Example for this 4 ft lanyard: the lanyard (4 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 15.5 ft (4.7 m) below an overhead anchorage. In low-clearance situations, choose a self-retracting lifeline instead.
FAQ: Frequently asked questions about the single-leg shock absorbing lanyard
Does this lanyard meet Canadian standards?
Yes, this product is certified to CSA Z259.11, ensuring compliance for construction sites and industrial environments in Canada.
What is the capacity of this lanyard?
This lanyard is designed for a worker whose total weight, including tools, is between 132 and 310 lb (59.9 to 140.6 kg).
When should I choose a single-leg lanyard over a double-leg Y lanyard?
The single-leg lanyard suits fixed single-anchor workstations and restraint applications where the worker does not move between several anchor points. For repeated transitions at height where 100% tie-off is required, choose a double-leg Y lanyard (1246576c) instead.
What is the required fall clearance with this 4 ft lanyard?
Adding the lanyard (4 ft), the absorber deployment (4 ft), the worker height (6 ft) and a safety margin (1.5 ft), you need about 15.5 ft (4.7 m) of clearance below an overhead anchorage.
What happens if my anchor is at foot level?
This is the most dangerous scenario, fall factor 2: the free fall can reach twice the lanyard length. This 3M IRF energy absorbing lanyard is designed to dissipate the energy of a severe fall and reduce arresting forces, making it suitable when the anchor is at foot level.
Complementary suggestions for the lanyard:
Beyond fall arrest, equip the worker from head to toe: protect their hands with cut-resistant gloves (G100), their eyes with safety eyewear (YA12E90801), and their hearing in noisy areas with earplugs (O1100) or earmuffs (OPH10B); on a traffic worksite, add a high-visibility vest (VV53).
To complete your fall protection system, combine your lanyard with reliable anchors: a connector (FPA826), a secondary anchor (FPAF075N) or a fitting (FPA822). Connect it to an ExoFit harness (FPH140114XCALP) or the model (FPH140102XCAL), and post the mandatory-use sign (ECO130).
FPL1246571C
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Lanyard
- Product code
- FPL1246571C
- Product use
- Designed for construction work
- Approved/Certified
- Compliant with CSA Z259.11-17 standards
- Manufacturer
- 3M (TM)
- Country of origin
- United State of America
- Format
- 4 ft / 1.22 m
- Types of lanyards
- Single lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The shock absorber deploys by controlled tearing to reduce fall arrest force
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics

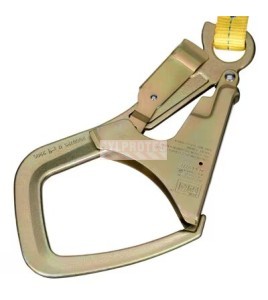

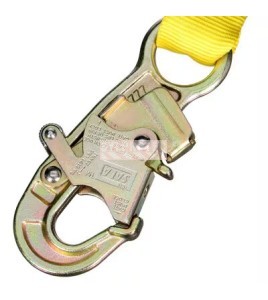

- A small spring-loaded carabiner with a 3/4 in. / 19 mm opening and a large carabiner for rebar with a 3 in. / 76 mm opening. All made of zinc-plated steel
- Includes
- With an internal shock absorber featuring the 3M(TM) IRF system
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 132 to 310 lb / 59.9 to 140.6 kg (including tools and equipment)
- Material1
- Polyester
- Material2
- Steel
- Material3
- Vectran
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 17 in / 43.18 cm
- Width (in/cm)
- 13 in / 33.02 cm
- Height (in/cm)
- 8 in / 20.32 cm
- Weight (lb/kg)
- 4.2 lb / 1.91 Kg
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 132 lb to 310 lb / 59.9 kg to 140.6 kg, including clothing, tools and equipment
