- New
D-ring extension 1.5 ft webbing, Protecta 3M, 310 lb
FPL1385000C
$69.00
Protecta 3M 1.5 ft (45 cm) D-ring extension in polyester webbing, self-locking carabiner, 310 lb capacity.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

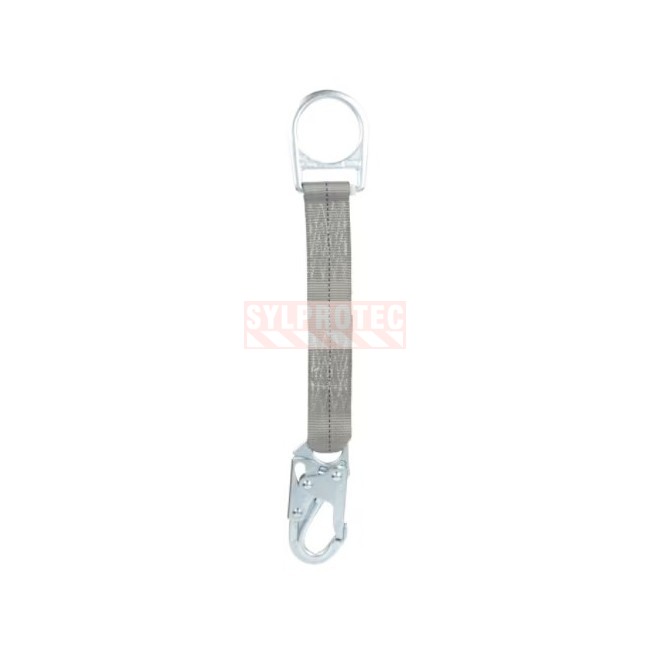

1.5 ft D-ring extension in webbing, Protecta 3M
3M purchase code: 7100232068, model: 1385000C
The Protecta 3M D-ring extension (model 1385000C) adds 45 cm (1.5 ft) to the dorsal D-ring of a safety harness or an overhead anchor point. By bringing the connection point closer, it makes it easier for the worker to clip on the fall arrest device, especially when the dorsal ring is hard to reach. Sold individually.
Its abrasion-resistant polyester webbing features a self-locking, easy-to-use carabiner at one end and a high-strength D-ring attachment point at the other. Its visible webbing makes the visual inspection required before each use easier.
Advantages of the D-ring extension
Simple and rugged, this extension brings the worker's dorsal connection point closer to make fall protection hook-up faster and safer, without modifying the harness.
Features and safety of the extension
- Extends the dorsal D-ring by 45 cm (1.5 ft)
- Abrasion-resistant polyester webbing
- Self-locking carabiner at one end, high-strength D-ring at the other
- Maximum capacity: 310 lb (141 kg), worker, clothing and tools included
- Eases connection when the dorsal ring is hard to reach
Job sites and industries where this extension is required
- Construction and general industry
- Utilities, transportation, oil and gas
- Wind energy and work at height
- Any fall protection application where dorsal hook-up is awkward
Use and inspection of the extension
The extension attaches to the harness dorsal D-ring; the fall arrest device then connects to the self-locking carabiner. It must not be used to increase free fall length beyond what the fall arrest system allows: always account for the fall clearance distance. Before each use, inspect the webbing, stitching, carabiner and D-ring; remove the extension from service at the first sign of wear, cut or failure. Sylprotec offers a fall protection equipment inspection service; see the Services tab.
FAQ about the D-ring extension
Here are the most frequent questions about the use, capacity and length of this D-ring extension.
What is a D-ring extension used for?
It extends the harness dorsal D-ring by 45 cm (1.5 ft) to bring the connection point closer and ease hook-up of the fall arrest device, especially when the dorsal ring is hard to reach.
What load does it support?
The maximum supported weight is 310 lb (141 kg), including the worker, clothing and tools.
Does the extension increase the fall distance?
It adds a short length to the system; the available fall clearance below the worker must always be recalculated before use.
Suggested fall protection products
A structural steel erector connecting with this Protecta 3M lanyard completes personal protection with a high-visibility garment (VV55JP), a helmet (TA14LR) held by its chinstrap (TA14CS), cut-resistant gloves (GS13SXB), safety eyewear (YAS1103) and corded earplugs (OA101D) that stay around the neck and cannot drop from height.
For the lanyard to work in a complete fall arrest system, plan a Protecta 3M harness (FPH1191392CA), a Protecta 3M tie-off anchorage strap (FPA219005X), a Protecta 3M fixed anchor (FPA2103680), a 300 ft RollGliss R550 rescue (FPLR5503325) and descent device for emergency lowering, a DANGER barricade tape (ECT3YE7) to cordon off the ground area and the sign (ECO130) reminding that the harness is mandatory.
FPL1385000C
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- D-ring extension
- Product code
- FPL1385000C
- Product use
- For construction work
- Approved/Certified
- Complies with CSA standard Z259.10-06
- Manufacturer
- 3M DBI-SALA
- Country of origin
- Mexico
- Format
- 1.5 ft / 45 cm
- Reusable
- Reusable with careful inspection and proper installation
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with a self-locking zinc-plated steel carabiner and a high-strength D-ring at the other end
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Material1
- Polyester
- Material2
- steel-zinc
- Length (in/cm)
- 17 in / 43.18 cm
- Width (in/cm)
- 13 in / 33.02 cm
- Height (in/cm)
- 8 in / 20.32 cm
- Weight (lb/kg)
- 1.2 lb / 0.54 kg
- Sold by
- Unit
- Color
- Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
