- New
Lad-Saf DBI-SALA 3M standing support 6100710
FPA6100710
$33.15
Lad-Saf DBI-SALA 3M 6100710 steel stand-off support providing a safe footing platform at the top of the fixed ladder to ease the transition onto the elevated work area.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

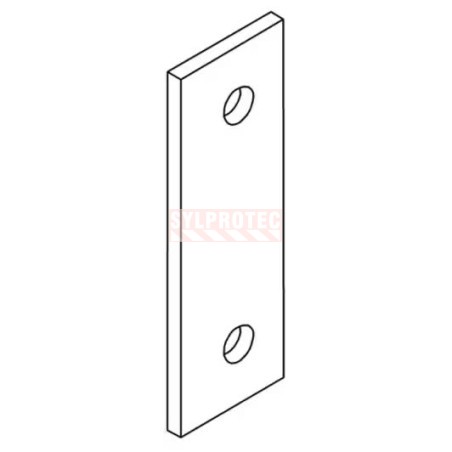

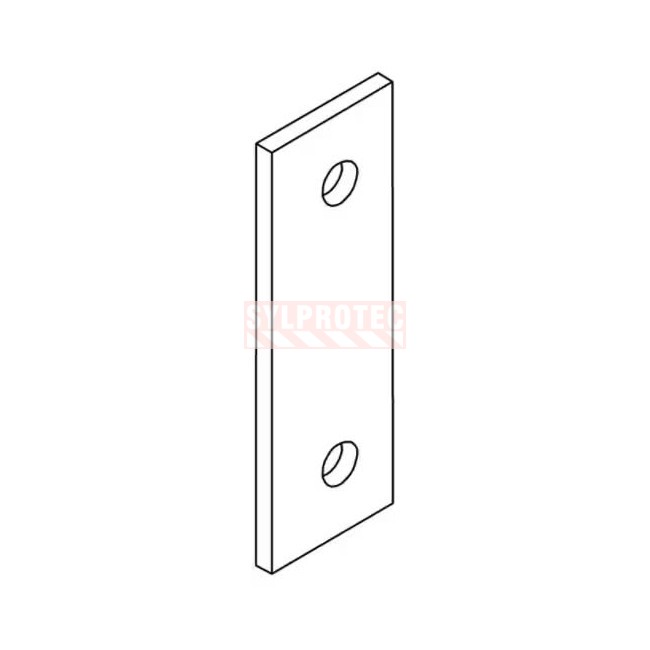

Lad-Saf DBI-SALA 3M standing support 6100710 for steel post, stainless steel, 2 x 0.25 x 6 in (5 x 0.6 x 15.2 cm)
3M purchase code: 7012819734, model: 6100710.
The Lad-Saf DBI-SALA 3M standing support 6100710 is a stainless steel stand-off bracket used to attach the vertical lifeline of a Lad-Saf safety system installed on a steel post. It holds the cable away from the structure and helps anchor the system at the top of the post. Its extremely rugged stainless steel construction resists corrosion, making it suitable for outdoor installations and demanding environments.
This bracket is part of a modular system: the top bracket, bottom bracket, pre-swaged cable, cable guides and the sleeve are ordered separately. It is permanently welded onto the steel post.
Benefits of the Lad-Saf 6100710 stand-off bracket
- Stand-off bracket to attach the Lad-Saf vertical lifeline on a steel post
- Extremely rugged, corrosion-resistant stainless steel construction
- Holds the cable away from the structure
- Welded installation, quick and secure
- Compatible with the Lad-Saf DBI-SALA 3M fixed-ladder range
- System load capacity of 310 lb (141 kg)
Specifications of the stainless steel stand-off bracket
- Product type: stand-off bracket for the top bracket, steel post
- Material: stainless steel
- Dimensions: 2 x 0.25 x 6 in (5 x 0.6 x 15.2 cm)
- Weight: 0.8 lb (0.3 kg)
- System load capacity: 310 lb (141 kg)
- Structure type: steel post
- Fastening type: welded
- Installation type: permanent
- Compliant with ANSI A14.3-1992, OSHA 1910.27 and FAA RR-S-001301
Role of the stand-off bracket in the Lad-Saf vertical system
On a vertical cable safety system installed on a steel post, the 6100710 stand-off bracket attaches and spaces the lifeline away from the structure. It works with the top bracket to keep the cable tensioned and correctly positioned along the climbing area, ensuring smooth travel of the worker's sleeve.
Compatibility and mounting of the Lad-Saf bracket
The 6100710 stand-off bracket integrates with the Lad-Saf vertical cable safety system and welds onto a steel post. The top bracket, bottom bracket, pre-swaged cable, cable guides and the sleeve are ordered separately. The exact system configuration must be validated with a competent person and per the 3M manufacturer instructions.
Worksites and industries for the Lad-Saf post bracket
Vertical access on steel posts and structures: general industry, oil and gas, transportation and utilities.
Inspection of the Lad-Saf stand-off bracket
Before each use, inspect the bracket, its weld to the post and the condition of the stainless steel: check for corrosion, cracks, deformation or loose fasteners. Remove any damaged component from service. A formal inspection by a competent person other than the user is required at least once a year, per 3M manufacturer instructions and applicable provincial regulations.
Maintenance of the stainless steel fall arrest bracket
Keep the bracket clean and dry, away from harsh chemicals. Never modify the bracket. Any repair or component replacement must be performed by 3M DBI-SALA or an authorized person, per the 3M user manual.
FAQ about the Lad-Saf 6100710 standing support
What is this bracket for?
It is a stand-off bracket that attaches the Lad-Saf vertical lifeline and holds it away from the steel post, working with the system's top bracket.
What material is it made of?
Extremely rugged, corrosion-resistant stainless steel, suited to outdoor installations.
How does it attach?
It is permanently welded onto a steel post.
Are the cable and sleeve included?
No. The top bracket, bottom bracket, pre-swaged cable, guides and sleeve are ordered separately.
Which standards does it comply with?
ANSI A14.3-1992, OSHA 1910.27 and FAA RR-S-001301, as part of a complete Lad-Saf system.
Complementary fall protection equipment suggestions
The maintenance technician braces himself to work at height on a fixed ladder fitted with a vertical system, suspended over the drop. A wrong move or unsuitable equipment is enough to turn a routine climb into a serious fall. On this type of job site, he wears his full personal protective equipment: a Class L sternal-D-ring safety harness (FPH140310XXCALP) that keeps him facing the ladder, cut-resistant gloves (GSTACXPNRT), safety glasses (YASF401BG), a protective helmet (TA82) held by its chin strap (TA14CS), a high-visibility garment (V6692F) and hearing protection, earmuffs (OPH6B).
To build the complete vertical fall arrest system, pair this product with the other Lad-Saf components: the Lad-Saf system (FPA6100219); the Lad-Saf X3 sleeve (FPA5000338); the flexible lifeline counterweight (FPA5901583); the stainless-steel pole cable guide (FPA6100136); the intermediate cable guide (FPA61004XX); the end-of-line cable guide (FPA61005XX); and the system instructions and label plate (FPA6100252). Also plan a RollGliss R550 rescue and descent device (FPLR550) for controlled descent, and mark off the area at the foot of the structure with a DANGER barricade tape (ECT3RE9).
FPA6100710
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Rope & rope grab
- Name of the product
- Lad-Saf DBI-SALA 3M end-of-line cable guide for straight ladder
- Product code
- FPA6100710
- Product use
- Vertical access on fixed straight ladders ; utilities, wind energy, oil and gas, power transmission.
- Approved/Certified
- ANSI A14.3-1992, OSHA 1910.27, FAA RR-S-001301
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Cable guide with a non-metallic rubber contact area and galvanized or stainless steel mounting hardware, rugged and corrosion resistant.
- Additional Features
- The worker must use a 5/8" (16 mm) diameter rope approved for fall arrest
- Characteristics of the strap or cable
- Integrates into a Lad-Saf system serving up to 4 workers.
- Characteristics of metal parts
- Non-painted metal parts
- Feature that facilitates use
- Bolts onto a straight-ladder rung, for a quick and customizable installation.
- Includes
- Bypassable cable guide that bolts onto a straight-ladder rung, with a non-metallic rubber contact area, available in galvanized or stainless steel.
- Worker’s weight
- 200 to 386 lb / 90.72 to 175.09 Kg
- Material1
- Galvanized steel or stainless steel
- Material2
- Rubber
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 5.55 in / 14.1 cm
- Width (in/cm)
- 2.65 in / 6.7 cm
- Height (in/cm)
- 2 in
- Weight (lb/kg)
- 0.5 lb
- Sold by
- Unit
- Color
- Gray/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 200 lb to 386 lb / 90.72 kg to 175.09 kg, including clothing, tools and equipment
