Lad-Saf Clamp Plate for 3M DBI-SALA Vertical Cable Safety System 6100750

3M DBI-SALA Lad-Saf Clamp Plate 6100750 for Vertical Cable Safety System, Galvanized Steel

3M purchase code: 7100311191, model: 6100750.

The 3M DBI-SALA Lad-Saf 6100750 Clamp Plate is a galvanized steel component (.25 x 3 x 3 in, 6.35 mm thick) that is part of the Lad-Saf flexible cable vertical safety system for fixed ladders. Sold separately, this mounting part helps hold the cable along the climbing area. It is engineered for the new generation of Lad-Saf systems, re-engineered to simplify and speed up installation. It is not a complete system or a stand-alone anchor point: it works as part of the Lad-Saf system, used with an X2 or X3 detachable sleeve and a harness.

Benefits of the Lad-Saf 6100750 clamp plate

• Corrosion-resistant galvanized steel component.
• Compatible with the new generation of Lad-Saf systems.
• Helps simplify and speed up installation.
• Replacement or add-on part sold individually.

Technical specifications of the galvanized clamp plate

• Product type: clamp plate (Lad-Saf system component).
• Material: galvanized steel.
• Dimensions: .25 x 3 x 3 in (6.35 x 76.2 x 77.5 mm).
• Weight: about 0.56 lb (254 g gross packaged weight).
• Mounting hole spacing on the standoff: 4.00 in (101 mm).
• Operating temperature range: -40 °C to 60 °C.
• Sold separately from the kit, individually.
• Fits a Lad-Saf system compliant with ANSI Z359.16, OSHA 1910.140 and 1926.502 when the system is used with a Lad-Saf X2 or X3 detachable sleeve.

Role of the clamp plate in the Lad-Saf system

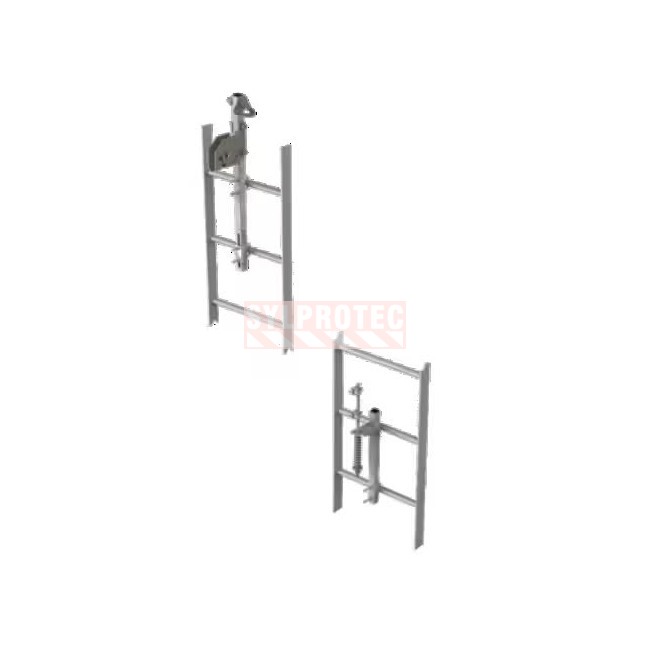

Installed on the Lad-Saf vertical safety system along a fixed ladder, the clamp plate helps secure and hold the steel cable tensioned between the top and bottom brackets. It is one link in a permanent installation: actual fall protection is provided by the complete system, the detachable sleeve connected to the worker's harness, and the harness itself.

Worksites and sectors

Vertical access on fixed ladders, billboards and structures: utilities, wind energy, oil and gas, power transmission, telecommunications and industrial structure maintenance.

About installing the clamp plate

The clamp plate is mounted as part of a complete Lad-Saf system installation, by a competent person, per 3M manufacturer instructions. Use it with the other system components of the same metal (galvanized) to avoid galvanic corrosion and ensure the longevity of the installation.

Inspection of the clamp plate

Before each use, inspect the plate and its fastening: check for corrosion, cracks, deformation or loose fasteners. Remove any damaged component from service. A formal inspection of the system by a competent person other than the user is required at least once a year, per 3M manufacturer instructions and applicable provincial regulations.

Maintenance of the galvanized component

Keep the part clean and dry, away from harsh chemicals. Never modify the component. Any repair or replacement must be performed by 3M DBI-SALA or an authorized person, per the 3M user manual.

FAQ about the Lad-Saf 6100750 clamp plate

Is this a complete fall arrest system?

No. The 6100750 is a clamp plate, a component of the Lad-Saf system. It is ordered in addition to the brackets, cable and detachable sleeve.

What material is the plate made of?

Galvanized steel, for corrosion resistance.

What are its dimensions?

.25 x 3 x 3 in (6.35 x 76.2 x 77.5 mm), with a gross weight of about 254 g.

Which standards does the system comply with?

The Lad-Saf system is compliant with ANSI Z359.16, OSHA 1910.140 and 1926.502 when used with a Lad-Saf X2 or X3 detachable sleeve.

Is the plate sold individually?

Yes, it is sold separately from the kit, individually.

Complementary fall protection equipment suggestions

For a worker who regularly climbs a fixed ladder equipped with a Lad-Saf vertical cable safety system, consider a class L safety harness with a sternal ring, cut-resistant gloves for handling hardware, safety eyewear, a protective helmet TA80 with a chin strap, a high-visibility shirt and corded earplugs (OA111).

To build the complete vertical fall arrest system, pair this clamp plate with the other components of the Lad-Saf range: the Lad-Saf X3 sleeve (FPACC5000338); a flexible lifeline poids (FPLS5901583); a stainless-steel pole cable guide (FPLS6100136); the system instructions and label plate (FPLS6100252); an mid-cable galvanized or stainless cable guide; an intermediate cable guide for a galvanized pylon (FPLS6100430); and an end-line cable guide. Also plan a RollGliss R550 rescue and descent device (FPLR5503325) for controlled descent, and mark off the area at the base of the structure with a DANGER barricade tape (ECT3RE9).
