- New

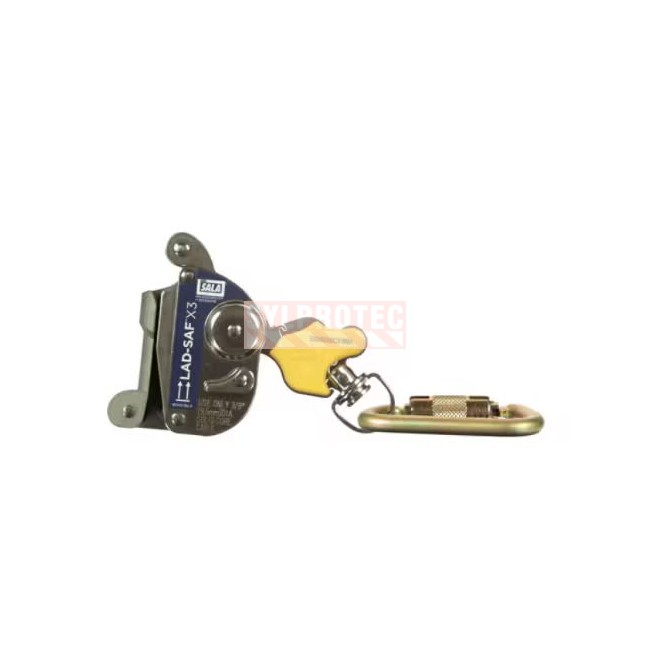

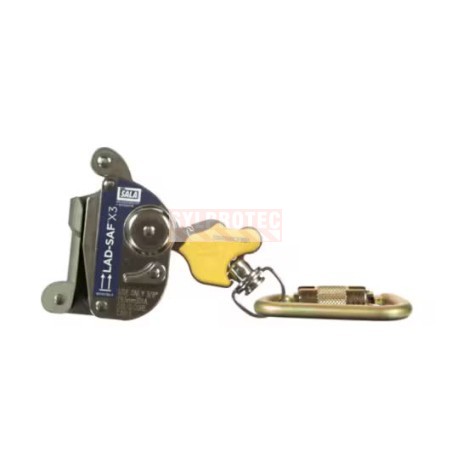

Lad-Saf DBI-SALA 3M X3 removable cable sleeve 6160054 for 9.5 mm (3/8 in) cable
FPACC616005
$896.75
X3 removable cable sleeve Lad-Saf for 9.5 mm (3/8 in) vertical cable, galvanized or stainless. Stainless steel, built-in energy absorber, fall indicator, hands-free, dual locking, capacity 310 lb, one user.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Lad-Saf DBI-SALA 3M X3 removable cable sleeve 6160054, vertical fall-arrest sleeve for 9.5 mm cable
The X3 removable cable sleeve Lad-Saf DBI-SALA 3M is the mobile link of the Lad-Saf vertical cable safety system: it follows the worker while climbing a fixed ladder or tower and instantly arrests a fall. Designed for 9.5 mm (3/8 in) cable, galvanized or stainless, it is made from corrosion-resistant stainless steel and integrates a laser-cut energy absorber and a fall indicator. Its hands-free design, independent dual locking and anti-inversion functions make it a reliable, safe sleeve. Capacity of 310 lb (141 kg), one user.
Built-in energy absorber and fall indicator on the X3 sleeve
The X3 sleeve integrates a laser-cut stainless steel energy absorber that reduces the fall-arrest forces transmitted to the worker. A visible fall indicator immediately shows whether the sleeve has undergone a fall arrest, so it can be removed from service without hesitation. Its stainless steel construction provides excellent corrosion resistance, even in abrasive and humid environments.
Hands-free design, dual locking and anti-inversion
The X3 automatically follows the user during ascent and descent, with no handling, for continuous fall protection. It offers an independent dual locking mechanism and anti-inversion functions that prevent upside-down installation on the cable. It installs and detaches anywhere along the Lad-Saf vertical lifeline, making it easy to enter and exit the system.
Compatibility with the 9.5 mm Lad-Saf vertical cable system
This sleeve is compatible with the 9.5 mm (3/8 in) Lad-Saf cable in galvanized or stainless steel. It features a 3M connected Safety ID (i-Safe) that supports inspection traceability. To operate, it must be paired with the Lad-Saf system components: cable, guides and counterweight.
Applications of the X3 sleeve on fixed ladders and towers
The X3 sleeve is designed for vertical access on fixed ladders, towers and structures at height. It suits general industry, utilities, oil and gas, telecommunications and wind energy, wherever a worker must climb safely along a vertical cable.
Inspection and maintenance of the Lad-Saf cable sleeve
Inspect the sleeve before each use. Remove it from service if the fall indicator is triggered or in case of corrosion, cracking or wear. Any repair must be performed by 3M DBI-SALA or an authorized competent person. Keep the sleeve clean and dry between uses to preserve its mechanism.
FAQ about the X3 removable cable sleeve Lad-Saf
Which cable is the X3 sleeve compatible with ?
It is designed for the 9.5 mm (3/8 in) Lad-Saf cable, in galvanized or stainless steel.
How many users does the sleeve protect ?
One user at a time, with a maximum weight of 310 lb (141 kg) including equipment.
Can it be installed anywhere on the lifeline ?
Yes. The removable sleeve installs and detaches anywhere along the Lad-Saf vertical lifeline.
How do I know when to remove it from service ?
Remove it from service if the fall indicator is triggered, or in case of corrosion, cracking or wear. Repair must be done by 3M DBI-SALA or a competent person.
Can the sleeve be installed upside down on the cable ?
No. Its anti-inversion functions and independent dual locking prevent incorrect installation on the cable.
Complementary suggestions for your Lad-Saf vertical fall-arrest system
To build your vertical fall-arrest system, start with the Lad-Saf vertical cable safety system (FPA6100219), the static cable sleeve (FPA5000338), the flexible lifeline counterweight (FPA5901583) and the ExoFit X100 class AL sternal harness (FPH140322XCAL).
Under "Accessories" at the bottom of the page, complete your equipment with the stainless post cable guide (FPA6100136), the intermediate cable guide (FPA6100430), the end-of-line cable guide (FPA61005XX) and the RollGliss R550 rescue device (FPLR5503325).
FPACC616005
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Rope & rope grab
- Name of the product
- Slider
- Product code
- FPA6160054
- Product use
- Vertical access on fixed ladders and structures ; construction, general industry, oil and gas ; highly abrasive and corrosive environments.
- Approved/Certified
- ANSI Z359.16, OSHA 1910.140 and 1926.502 (with X2 or X3 sleeve)
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Manual cam-locking rope grab that the user attaches themselves onto the lifeline.
- Additional Features
- The worker must use a 5/8" (16 mm) diameter rope approved for fall arrest
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of the strap or cable
- Detachable anywhere along the cable lifeline.
- Characteristics of metal parts
- Non-painted metal parts
- Environmental characteristics
- Rugged all-metal system, suited to highly abrasive and corrosive environments.
- Includes
- Static cable safety sleeve, manual use.
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Material1
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 2.5 in / 6.4 cm
- Width (in/cm)
- 10.5 in / 26.7 cm
- Height (in/cm)
- 5,5 po / 14 cm
- Weight (lb/kg)
- 2.5 lb / 1.1 kg
- Sold by
- Unit
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- This sleeve only arrests a fall when used with a safety harness, a compatible 7 x 19 3/8 in cable lifeline and a 3 ft (0.9 m) shock-absorbing lanyard. Any device that has arrested a fall must be removed from service.
