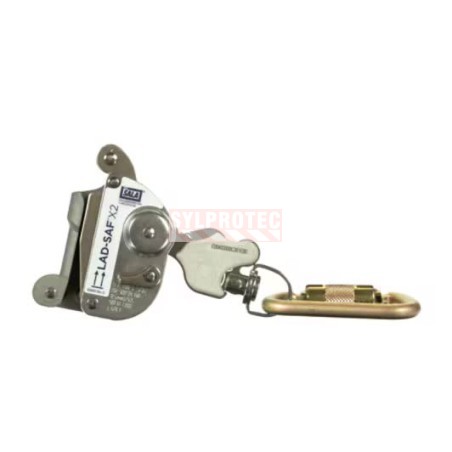

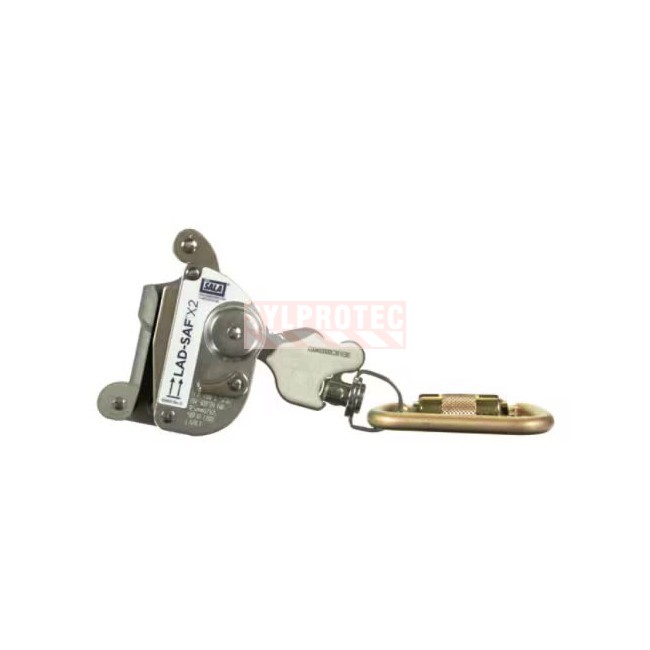

Lad-Saf DBI-SALA 3M X2 removable cable sleeve 6160030 for 9.5 and 8 mm (3/8 and 5/16 in) cable

Name: Lad-Saf DBI-SALA 3M X2 removable cable sleeve 6160030 for 9.5 and 8 mm (3/8 and 5/16 in) cable
Brand: Dbi-Sala
SKU: FPACC6160030
Price: 896.75 CAD
Availability: PreOrder

Reference : FPACC6160030

$896.75

X2 removable cable sleeve Lad-Saf for 9.5 mm (3/8 in) and 8 mm (5/16 in) vertical cable. Stainless steel, Saflok carabiner, energy absorber, fall indicator, hands-free, dual locking, capacity 310 lb, one user.

Quantity

Compare

Estimate Shipping

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

More Info
Data Sheet

Lad-Saf DBI-SALA 3M X2 removable cable sleeve 6160030, vertical fall-arrest sleeve for 9.5 and 8 mm cable

The X2 removable cable sleeve Lad-Saf DBI-SALA 3M is the mobile link of the Lad-Saf vertical cable safety system: it follows the worker while climbing a fixed ladder or tower and instantly arrests a fall. Its versatility is its strength: it is compatible with 9.5 mm (3/8 in) AND 8 mm (5/16 in) cables, solid core 1x7 or 7x19. Made from corrosion-resistant stainless steel and fitted with a high-strength Saflok carabiner, it integrates an energy absorber and a fall indicator. Capacity of 310 lb (141 kg), one user.

Compatible with two cable diameters: 9.5 and 8 mm

Unlike single-diameter sleeves, the X2 accepts Lad-Saf cables of 9.5 mm (3/8 in) and 8 mm (5/16 in), solid core 1x7 or 7x19. This flexibility makes it a versatile sleeve for various vertical Lad-Saf installations, a single sleeve covering two cable sizes.

Built-in energy absorber and fall indicator on the X2 sleeve

The X2 sleeve integrates an energy absorber that reduces the fall-arrest forces transmitted to the worker to 6 kN (1,350 lb) or less. A visible fall indicator immediately shows whether the sleeve has undergone a fall arrest, requiring its removal from service. Its stainless steel construction provides excellent corrosion resistance, even in abrasive and humid environments.

Hands-free design and independent dual locking

The X2 automatically follows the user during ascent and descent, with minimal handling, for continuous fall protection. Its independent dual locking system offers two means of protection: it stays locked until footing is regained. The sleeve installs and detaches anywhere along the Lad-Saf vertical lifeline, making it easy to enter and exit the system.

Lad-Saf system compatibility and 3M connected ID

This sleeve is designed for the Lad-Saf vertical cable safety system. It features a 3M connected Safety ID that supports inspection traceability. To operate, it must be paired with the Lad-Saf system components: cable, guides and counterweight.

Applications of the X2 sleeve on fixed ladders and towers

The X2 sleeve is designed for vertical access on straight fixed ladders, towers and structures at height. It suits general industry, utilities, oil and gas, transport and wind energy, wherever a worker must climb safely along a vertical cable.

Inspection and maintenance of the Lad-Saf cable sleeve

Inspect the sleeve before each use. Remove it from service if the fall indicator is triggered or in case of corrosion, cracking or wear. Any repair must be performed by 3M DBI-SALA or an authorized competent person. Keep the sleeve clean and dry between uses to preserve its mechanism.

FAQ about the X2 removable cable sleeve Lad-Saf

Which cables is the X2 sleeve compatible with ?

It accepts Lad-Saf cables of 9.5 mm (3/8 in) and 8 mm (5/16 in), solid core 1x7 or 7x19.

How many users does the sleeve protect ?

One user at a time, with a maximum weight of 310 lb (141 kg) including equipment.

What is the difference with the X3 sleeve ?

The X2 accepts two cable diameters (9.5 and 8 mm), while the X3 is designed for 9.5 mm cable. Both offer the energy absorber, fall indicator and dual locking.

How do I know when to remove it from service ?

Remove it from service if the fall indicator is triggered, or in case of corrosion, cracking or wear. Repair must be done by 3M DBI-SALA or a competent person.

Can it be installed anywhere on the lifeline ?

Yes. The removable sleeve installs and detaches anywhere along the Lad-Saf vertical lifeline.

Complementary suggestions for your Lad-Saf vertical fall-arrest system

To build your vertical fall-arrest system, start with the Lad-Saf vertical cable safety system (FPA6100219), the static cable sleeve (FPA5000338), the flexible lifeline counterweight (FPA5901583) and the ExoFit X100 class AL sternal harness (FPH140322XCAL).

Under "Accessories" at the bottom of the page, complete your equipment with the stainless post cable guide (FPA6100136), the intermediate cable guide (FPA6100430), the end-of-line cable guide (FPA61005XX) and the RollGliss R550 rescue device (FPLR5503325).

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.

Reference FPACC6160030

Data sheet

Product group: Safety equipment
Main category: Personal protection
Sub category: Fall protection
Sub sub category: Rope & rope grab
Name of the product: Slider
Product code: FPA6160030
Product use: Vertical access on fixed ladders and structures ; construction, general industry, oil and gas ; highly abrasive and corrosive environments.
Approved/Certified: ANSI Z359.16, OSHA 1910.140 and 1926.502 (with X2 or X3 sleeve)
Manufacturer: 3M DBI-SALA
Country of origin: United State of America
Reusable: Reusable with careful inspection and proper installation
Features: Manual cam-locking rope grab that the user attaches themselves onto the lifeline.
Additional Features: The worker must use a 5/8" (16 mm) diameter rope approved for fall arrest
Characteristic adding safety: The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
Characteristics of the strap or cable: Detachable anywhere along the cable lifeline.
Characteristics of metal parts: Non-painted metal parts
Environmental characteristics: Rugged all-metal system, suited to highly abrasive and corrosive environments.
Includes: Static cable safety sleeve, manual use.
Worker’s weight: 310 lb / 140 Kg maximum, with tools and equipment
Material1: Steel
Washable: Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
Length (in/cm): 2.5 in / 6.4 cm
Width (in/cm): 10.5 in / 26.7 cm
Height (in/cm): 5,5 po / 14 cm
Weight (lb/kg): 2.5 lb / 1.1 kg
Sold by: Unit
Return conditions: No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Caution: This sleeve only arrests a fall when used with a safety harness, a compatible 7 x 19 3/8 in cable lifeline and a 3 ft (0.9 m) shock-absorbing lanyard. Any device that has arrested a fall must be removed from service.
