Tripod base mount support for confined spaces DBI-SALA 3M

DBI-SALA 3M tripod base mounting bracket for confined space

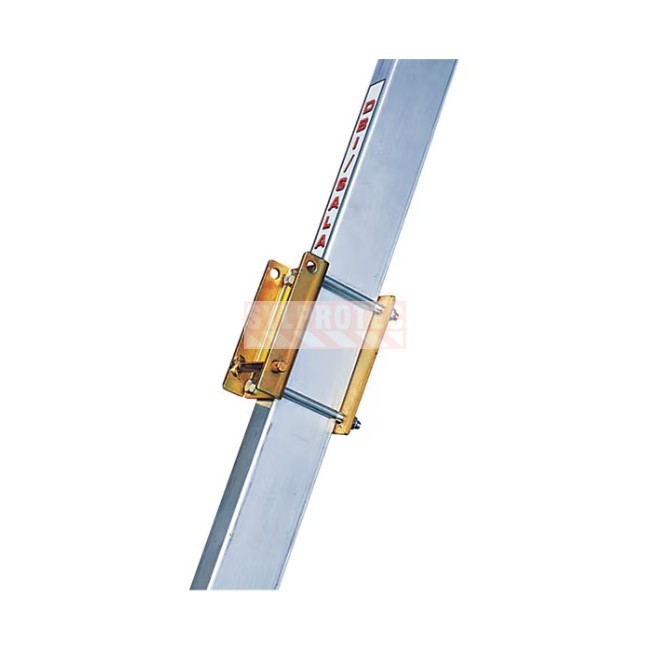

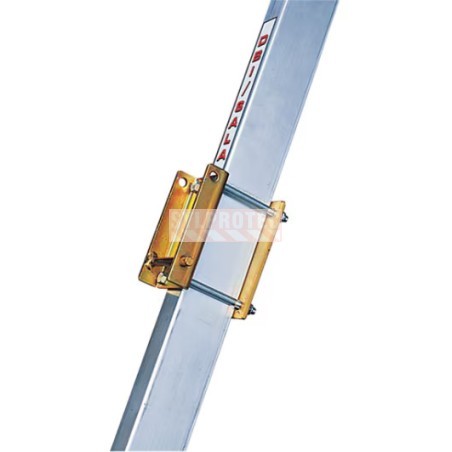

The DBI-SALA® 3M 8005048 mount support is a fastening accessory designed to allow the installation of a winch or self-retracting lifeline (SRL) onto the base of an Advanced DBI-SALA® 3M tripod. This compact component, measuring 209.6 mm deep, 151.1 mm wide and 48.3 mm high, weighs only 1.25 kg. It is an integral part of a 3-way rescue system used in confined spaces. UPC: 00840779005659.

3M order code: 7100240881, model: 8005048.
This product complies with CSA Z1220-17 standard for confined space equipment, as well as the CSA Z259 series requirements for fall protection.

Using a tripod/winch/SRL system in a confined space meets a specific need: enabling the safe descent and retrieval of a worker in a sump, tank, sewer, silo or vat. The 8005048 support firmly attaches the winch to one of the legs of the Advanced tripod, at an ergonomic height for the operator. Without this support, the winch cannot be properly assembled onto the structure. It is therefore a critical component of the rescue device.

Air quality warning for confined spaces:
Before any entry into a confined space, air quality must be validated using a reliable multi-gas detector. The main risks are oxygen deficiency (below 19.5%), oxygen enrichment (above 23%), the presence of combustible gases (LEL), carbon monoxide (CO) and hydrogen sulfide (H₂S). Entering without prior verification is a serious fault: several workers lose their lives each year in Canada by entering a tainted atmosphere. Sylprotec offers the MSA Altair 4X multi-gas detector (DETEC4G) compliant with CSA and ANSI standards for simultaneous measurement of the four critical gases. Ventilation, continuous monitoring, a written rescue plan and an outside attendant are also mandatory under Quebec OSH Regulation (art. 297 to 312).

Technical specifications:
Dimensions: H 48.3 mm × W 151.1 mm × D 209.6 mm. Gross weight: 1.25 kg. Material: zinc-plated steel for corrosion resistance in industrial environments. Lead time: made to order (~2 business days).

Zinc-plated steel material:
Zinc-plated steel offers excellent mechanical resistance to support the dynamic loads of a winch in operation. Zinc plating protects the steel from corrosion in humid environments, common in municipal sumps, pumping stations and underground reservoirs. The coating also reduces friction at mechanical contact points. This treatment is perfectly suited to repeated industrial use where the support is exposed to rain, dust and temperature variations. The useful life is thus significantly extended compared to untreated steel.

DBI-SALA tripod mounting bracket inspection

Routine inspection before each use by the operator. Qualified inspection by a competent person every 90 or 180 days depending on frequency of use. Recommended service life: 5 years. Immediate out-of-service after fall, impact or exposure to corrosive products. Sylprotec offers an annual inspection service performed by a qualified technician.

Maintenance: clean with lukewarm water (37 °C) and mild soap. Air-dry away from direct sunlight. No solvent or aggressive cleaner.

FAQ : DBI-SALA tripod base mount confined space FPLR8005048

Is this support compatible with all DBI-SALA tripods?

It is specifically designed for the Advanced DBI-SALA® 3M tripods (models 8301074 and 8301075 among others). Verify model compatibility with your winch or SRL before purchase.

Can this support be used for purposes other than confined spaces?

The support is designed for the tripod/winch/SRL system in confined spaces. Any use outside this scope voids the product's compliance and the manufacturer's liability.

What is the delivery time?

The product is manufactured to order by 3M. Allow approximately 2 business days for production, plus shipping time to Quebec.

Complementary suggestions : confined space DBI-SALA accessories FPLR8005048

For a complete confined space intervention, complete your equipment with an ExoFit X300 Class A harness (FPH1403198C) with dorsal and side D-rings or a vest model ExoFit X300 (FPH11401C). Add safety glasses (YASF401BG) and ear earplugs (OA1250) for eye and hearing protection.

Under “Accessories” at the bottom of the page. For daily handling, add Dyneema PU level A4 cut-resistant gloves (GS13SXGPU), as well as a storage bag (FPBAG) to carry the entire kit. The 8005048 support integrates directly into the complete aluminum tripod DBI-SALA® FPLR8301074 system.
