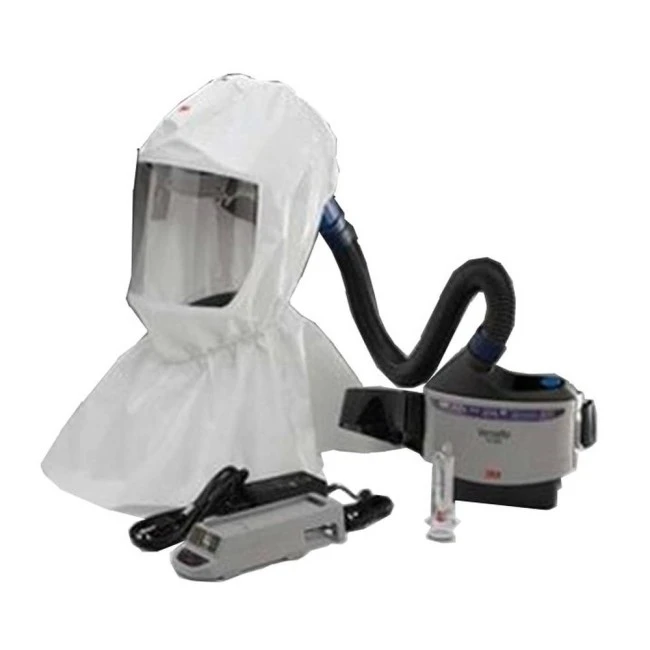

3M complete Versaflo(Tm) kit for respiratory protection by powered air purifying respirator (PAPR). This piece of equipment gets its NIOSH homologation when assembled with the other components recognized by the manufacturer as part of a complete system. It is recommended for workers in need of respiratory protection in health, food and pharmaceutical sectors. Compatible with 3M RVTR3712N filters. One kit per case.
3M Versaflo(Tm) is a new generation powered air purifying respirator which offers a perfect balance between protection and comfort. It combines components which protect not only one’s respiratory tract but also one’s eyes and face. The kit includes among others, a high nominal capacity battery which provides 8 to 12 hours of run time and many accessories.
Included in the kit:
- 1 Powered air purifying respirator unit (RVTR302N)
- 1 Filter cover (RVTR371)

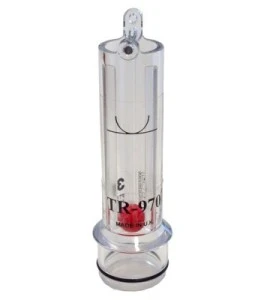

- 1 Airflow indicator (RVTR970)
- 1 Easy-clean polyurethane belt (RVTR327)

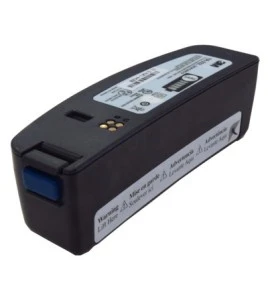

- 1 High capacity lithium ion battery; Run time of 8 to 12h (RVTR332)

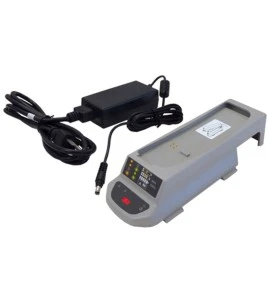

- 1 Single station battery charger kit (RVTR341N)
- 1 High efficiency (HE) filter (RVTR3712N)

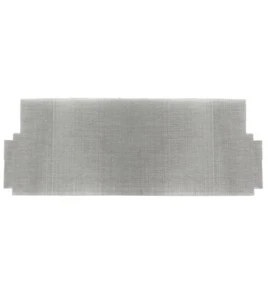

- 1 Prefilter (RVTR3600)
- 1 Respiratory hood (RBS/433L)

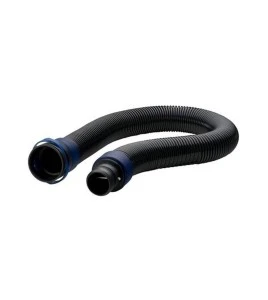

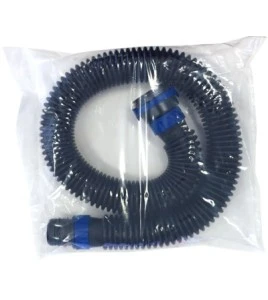

- 1 Heavy duty neoprene breathing tube; Length: 525 to 850 mm (RBT30)
3M manufacturer’s code: TR-300-ECK

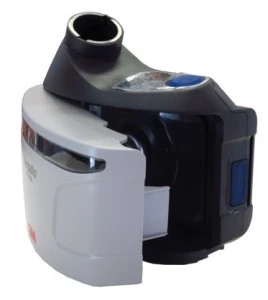

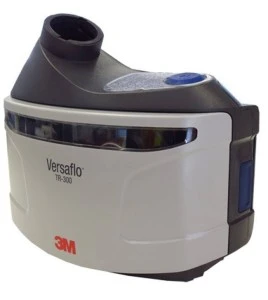

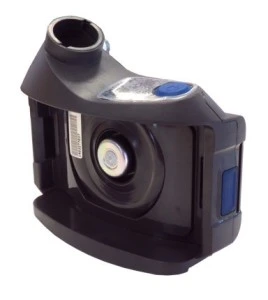

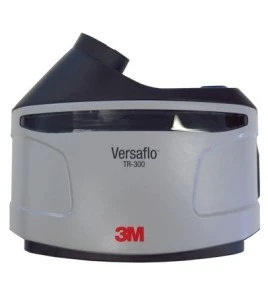

3M Versaflo powered air purifying respirator unit features RVTR302N:
PAPRs, powered air purifying respirator are systems made to blow filtered air into the respiratory equipment, which provides air automatically rather than mechanically such as regular respirators. 3M Versaflo(Tm) differs from other PAPRs by its lightness, its ergonomic and its versatility which allows everyone, even bearded men to be protected when well installed. This type of equipment offers a protection up to 25 times the permissible exposure limit set by the CNESST or any other government regulation applicable. PAPRs minimize the effort put into breathing and can reduce build up heat inside the facepiece. It features a smart engine which adapts accordingly to the HEPA filter in use. It is also equipped with an alarm system - one audible and one LED – which alert the user to either a low battery or low airflow. This PAPR contains no natural rubber latex.

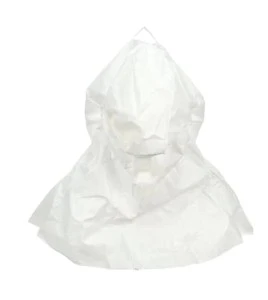

The RBS/433L facepiece consist of a hood that covers the head and neck. This kit is by design made to protect one from hostile environment filed with airborne contaminants. The hood is equipped with a waterproof membrane at the face. The head harness features 3 air outlets of which one is adjustable to improve the air distribution. The head harness improves also the comfort of the headgear. The facepiece consist of a woven and non-woven polypropylene layered membrane and a visor of laird plastic (PETG), a soft material providing a relatively good impact resistance. This type of facepiece has been mainly design for workers in health, food and pharmaceutical sectors. Please note that the RBS433L textile part of the hood is disposable to avoid any contamination, but the head harness is reusable.
This type of respiratory protection system is recommended for work that will loosen solid particles in the air such as work in health facilities, food factories and pharmaceutical laboratories. It’s recommended for polishing, surfacing and smelting. The HEPA filters which comes with the kit protect one from most airborne particles with an 99,97% efficiency. The facepiece is disposable which is safer for users being exposed to substances that may stay on the textile surface, thus contaminating users if they had to wash the facepiece.
These filters help prevent the inhalation of certain airborne biological particles like mold, Bacillus anthracis (Anthrax), Mycobacterium tuberculosis (Tubercle bacillus Koch) the main causative agent of tuberculosis, pandemic flues (H5N1, H1N1), etc. However, it cannot eliminate the risk of contracting infection, illness or disease. Due to the nature of some contaminants, the exposure limit value of some products and byproducts haven’t been quantified by governmental agencies, thus wearing a respirator doesn’t necessarily protects you.
Do not use for:
This respirator does not offer a protection against vapours and gases. It can neither ensure the user intrinsic safety in an environment representing an explosion risk. It is strongly discouraged to wear any kind of respirator for application with sandblasting. It is also highly advised to stay away from environment that exceed 25 times the permissible exposure limit set by the CNESST or any other government regulation applicable. One should never use a respirator in an oxygen deprived environment (an atmosphere with less than 19,5 % oxygen).
Maintenance and service life:
For a safer performance, manufacturer’s recommendation must be followed. 3M recommends an inspection of the respiratory equipment before each use; to wash the respirator after each use; and to store the respirator back to its packaging.
One should never wash its respirator with any type of solvents since they can weaken some components which can affect the efficiency of the equipment. The engine, the battery and the HEPA filter must never be immersed in water.
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Respiratory protection|
|Sub sub category||TR-300 Versaflo head-mounted powered air purifying respirator|
|Name of the product||Complete Versaflo (Tm) kit|
|Series of products||Versaflo (Tm) TR-300|
|Country of origin||United State of America|
|Reusable||Reusable with prior hygienic measurement|
|Battery type||High-capacity Lithium-ion rechargeable battery|
|Battery life||10-12 hours|
|Inherently safe||Not inherently safe|
|Protection factor||Protection factor of 1000|
|Protection against gases and vapors||Oily and not oily particles|
|Cartridge color code||Magenta|
|Faceseal membrane||With faceseal|
|Cartridge or Filter Included||HEPA filter include|
|Respirator Style||Powered air purifying respirator|
|Facepiece type||Hood with integrated facial membrane seal|
|Mounting type||Waistband installation|
|Versaflo (Tm) motor||TR-300+ Motor|
|Type of tube||Corrugated flexible and lightweight material for greater comfort ans less fatigue|
|Hose length||20 5/8 in (52.5 cm) compressed, 33 3/8 in ( 85 cm) extended|
|Type of connection||Back installation|
|Facial part||S-series hood RBS/433L|
|Facial part Material||The textile part is made of laminated polypropylene and a visor of laird plastic (PETG)|
|Compatibility of the facial part||3M ™ Power Air Purifying Respirator (PAPR) and Supplied Air (SA) respirator system|
|Material||See items separately|
|Washable||Wipe with a damp cloth, do not immerse in water|
|Another packaging available||44 units per pallet|
|Shipping restriction||Do not ship by air freight|
|Return conditions||No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page.|
