Kleton universal post for wire mesh panels, safety yellow

Kleton universal post for wire mesh panels, safety yellow

Manufacturer code Kleton: KD129, model KD129

This item is not kept in stock. Please allow 15 days for delivery.

Available in 2 heights. Select the variant you need from the drop-down menu.

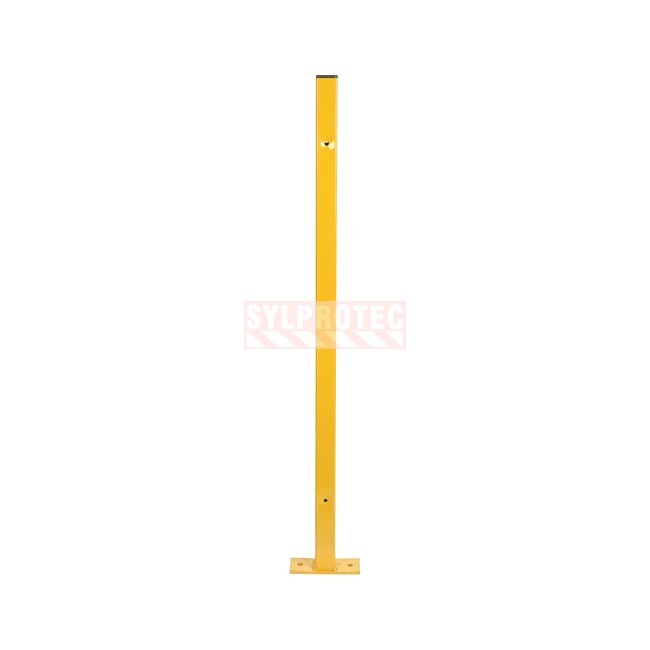

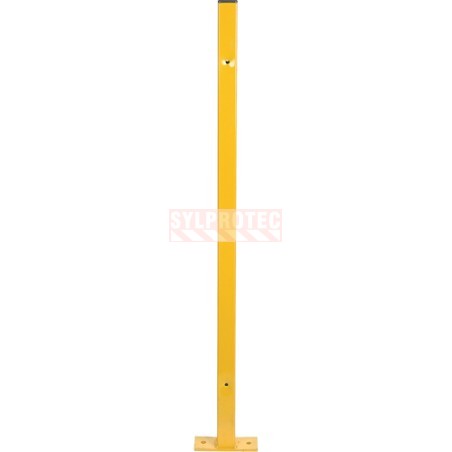

The Kleton universal post carries Kleton wire mesh panels. Made of 2 in square tube with a safety yellow powder coat finish, it stands on a base plate drilled for floor anchoring (5/16 in thick on the 49-1/2 in model). The 49-1/2 in model is used for wire mesh perimeter guards; the 99 in model (8 ft 3 in) is used for 8 ft wire mesh partitions made of two stacked 4 ft high panels. Plan one post at each end of each panel or stack of panels: line posts between two aligned panels, corner posts for a 90° corner or a T. The cap is sold separately for both heights; for the 99 in post, hardware is not included: 8 bolts, 8 nuts and 2 anchor sets per post. Made in China, it is covered by a 1-year limited warranty.

Features of the yellow Kleton universal post

• 2 in square tube, safety yellow powder coat
• 49-1/2 in high (perimeter guards) or 99 in high (8 ft partitions)
• Base plate drilled for floor anchoring
• Line or corner post (90° corner or T)
• Cap sold separately; 99 in: bolts, nuts and anchors not included

Applications of the yellow Kleton universal post

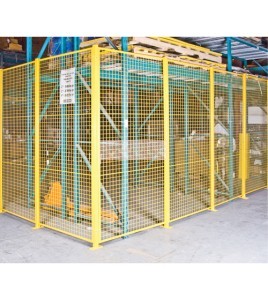

The Kleton universal post is used wherever Kleton wire mesh panels are installed: warehouse partitions and enclosures, tool cages, wire mesh perimeter guards. Allow 2 extra inches of wall length for each post added, and add a wall bracket where a post meets an existing wall, for proper support.

Care of the yellow Kleton universal post

Periodically check that the floor anchors and the bolts holding the panels are tight. Replace missing caps and touch up paint on bare metal. Replace the post if it is bent after an impact.

FAQ: the yellow Kleton universal post

Which height should I choose?

The 49-1/2 in post (13 lb) is used for wire mesh perimeter guards. The 99 in post (22 lb) is used for 8 ft high wire mesh partitions made of two stacked 4 ft panels.

How many posts are needed?

One at each end of each panel or stack of panels. Use line posts between two aligned panels and corner posts at 90° corners or T junctions. Allow 2 extra inches of wall for each post added.

What hardware is needed for the 99 in post?

It is not included: count 8 bolts, 8 nuts and 2 anchor sets per post. The cap is sold separately for both heights.

What should I do when a post meets a wall?

Add a Kleton wall bracket for proper support. Its fasteners attach it to the post; wall fasteners must be provided.

Where is the post made and what is the warranty?

It is made in China and covered by a 1-year limited warranty.

Suggestions for this yellow Kleton universal post

For the installer drilling concrete to anchor these Kleton posts at the foot of a future partition, plan for a Pioneer women's yellow surveyor vest (V6693F) with 15 pockets to keep bolts and nuts within reach, TenActiv composite fibre gloves (GS21TXUFN) with foam nitrile coating, Virtua Max safety glasses (YA11872) with foam seal that block drilling dust, a 3M over-the-head earmuff (OPH7A) and a 3M 8210 mask (R8210) against concrete dust.

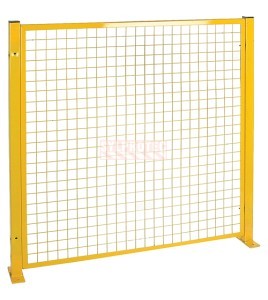

The posts take the yellow Kleton wire mesh panels: the 4 x 4 ft panel (EBKD130) and the 8 x 4 ft one, wider (EBKD131). Where a post meets a wall, install the Kleton wall bracket (IGKD115), offered in blue. The 49-1/2 in post also comes in blue (EBKH861) for blue mesh guards, and the same posts are used with the blue 1 ft high partition panels (IGKD121).
