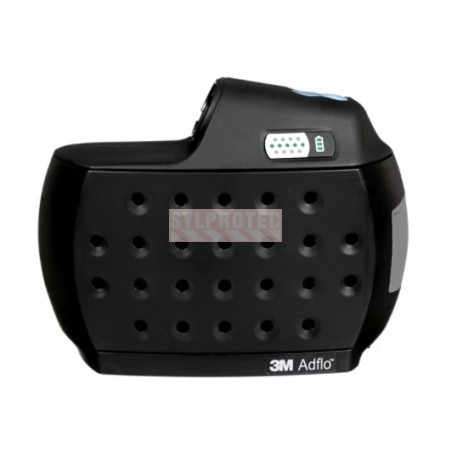

3M Adflo Replacement Motor Blower with Cover for PAPR

Reference : R35-1099-01
$853.05

The 3M Adflo 35-1099-01 motor blower is the replacement blower unit of the Adflo powered air purifying respirator, supplied with its cover. It draws air through the filter and delivers it to the helmet with automatic airflow regulation, with low airflow and low battery alarms. With no serviceable parts, it replaces a damaged blower. Plan for the 35-1099-07 lithium-ion battery (R35-1099-07), charger, belt, HE filter and breathing tube, sold separately.

Delivery time: varies; contact us.

Quantity

Compare

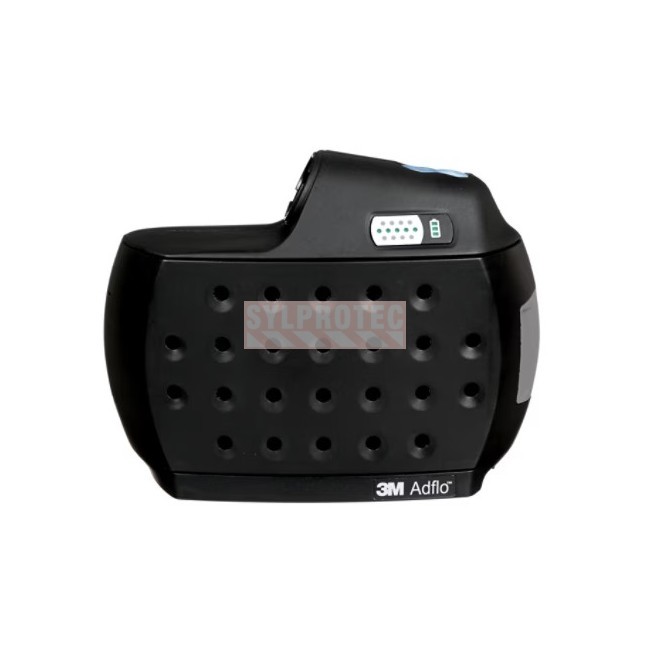

3M Adflo Replacement Motor Blower with Cover for PAPR

3M manufacturer code: 7100200559, model 35-1099-01

The 3M Adflo 35-1099-01 motor blower is the replacement blower unit of the Adflo powered air purifying respirator, supplied with its cover. It is the heart of the unit: it draws ambient air through the filter and delivers it to the welding helmet through the breathing tube, automatically regulating airflow according to battery charge and filter loading. 3M states that the blower contains no serviceable parts; replacing it puts back into service an Adflo whose motor or housing is damaged. The battery, charger, belt, breathing tube and headtop are ordered separately.

Why choose the 35-1099-01 Adflo blower

The blower contains no serviceable parts: when the motor or housing of an Adflo is damaged, it is replaced. The 35-1099-01 puts the unit back into service while keeping the battery, charger, belt and breathing tube already in place, without buying a complete PAPR assembly again.

It keeps the Adflo blower functions: airflow regulated automatically according to battery charge and filter loading, audible and visual low airflow and low battery alarms.

Exact compatibility

The 35-1099-01 is the replacement blower of the Adflo powered air purifying respirator. It runs on the 35-1099-07 Adflo lithium-ion pack (R35-1099-07), is worn on the Adflo waistbelt (R15-0099-16) and connects to an approved headtop through a breathing tube listed on the Adflo NIOSH label. It does not replace the complete PAPR assembly, which includes other parts.

Applications and recommended uses

This blower is intended for Adflo users and fleet maintenance staff in design and construction, heavy infrastructure and industrial maintenance. 3M specifies it for welding, machine operation, facility maintenance, sanding, assembly and grinding. A spare blower allows a unit out of service to be replaced quickly without buying the complete assembly again.

Features and benefits

  • Adflo replacement blower unit, supplied with its cover.
  • Airflow regulated automatically according to battery charge and filter loading.
  • Audible and visual low airflow and low battery alarms, battery and filter indicators.
  • No serviceable parts: replacement puts a damaged unit back into service.
  • Battery, charger, belt, breathing tube and headtop sold separately.

Contents and packaging

Component3M modelStatus
Adflo motor blower with cover35-1099-01Included (quantity: 1)
Adflo lithium-ion battery35-1099-07Sold separately
Adflo smart charger35-0099-08Sold separately
Belt, breathing tube, HE filter and headtopSold separately

Installation and checks

Hook the left edge of the battery into its holder at the bottom of the blower and push until the two clicks. Place the spark arrestor, prefilter and HE filter in the filter cover, lock it, then attach the blower to the belt with the hook-and-loop straps, with the UP arrow pointing up. Insert the breathing tube approved for your headtop and turn it a quarter turn.

Before entering the work area, turn the blower on, let it run for 2 minutes and check airflow with the 15-0099-05 flow indicator (R15-0099-05); then block the tube: the low airflow alarm must trigger after 15 to 30 seconds. Use is part of the employer's respiratory protection program, with headtop selection, training and fitting.

Use limitations

The blower is part of a NIOSH-approved Adflo system and protects only in a complete approved configuration. Do not use it in an oxygen-deficient atmosphere (less than 19.5%), at unknown concentrations, in conditions immediately dangerous to life or health, or in a flammable or explosive atmosphere. Leave the area as soon as an alarm is triggered; the blower stops 2 minutes after a continuous low airflow alarm. Operating range: -5 °C (23 °F) to 55 °C (131 °F).

Specifications and approvals

  • Product type: Blower
  • Compatible unit: 3M Adflo powered air purifying respirator
  • Materials: Polyamide ; ABS (housing and filter cover)
  • Airflow: Greater than 170 l/min (6 cfm)
  • Noise level: Less than 80 dBA at the wearer's ear
  • Battery type: Lithium-ion (sold separately)
  • Intrinsically safe: No
  • Approval: NIOSH approved in the approved Adflo configuration
  • Recommended industries: Industrial maintenance ; Heavy infrastructure ; Design and construction
  • Recommended applications: Welding ; Machine operation ; Facility maintenance ; Sanding ; Assembly ; Grinding

Care and service life

Never attempt to open the blower to repair it. After each use, remove the battery, breathing tube and headtop, then clean the outside surfaces with a soft cloth dampened with water and neutral pH mild detergent, without solvents or immersion; do not use compressed air or a vacuum inside. Dust in the blower may signal a filter leak: check it before the next use. Store the unit between -20 °C (-4 °F) and 35 °C (95 °F), away from sunlight, at a relative humidity of 90% or less and without condensation; short-term storage, non-operating and under 1 month, is permitted up to 55 °C (131 °F).

FAQ: the 35-1099-01 Adflo blower

Which parts are supplied with the 35-1099-01 blower?

The Adflo motor blower with its cover, and no other part.

Are the battery and charger included?

No. The 35-1099-07 Adflo lithium-ion battery and the 35-0099-08 smart charger are ordered separately, as are the belt, breathing tube and headtop.

Is the blower a complete respiratory system?

No. It is a replacement component. NIOSH approval applies to the complete approved Adflo configuration, with the specified filter, battery, breathing tube and headtop, never to the motor alone.

How is the blower cleaned?

Remove the battery, breathing tube and headtop, then wipe the outside with a soft cloth dampened with water and neutral pH mild detergent. Do not immerse it, do not use solvents and do not blow compressed air inside.

Can the motor be opened or repaired?

No. 3M states that the blower contains no serviceable parts and must never be opened: a damaged blower is replaced.

Complementary suggestions

Under the helmet connected to the Adflo, a Nomex hood (V309) and clear Ultra-Spec 2001 OTG safety glasses (YAU0112) protect the welder's head and eyes; clear Cee-Tec (YA12E93101DX) glasses with foam seal are another option. The 11 in leather welding gloves (G605) cover the hands, and the 3M 1100 disposable earplugs (O1100) reduce noise.

The blower runs on the 35-1099-07 Adflo lithium-ion accumulator (R35-1099-07), to be recharged only on the 35-0099-08 smart charger (R35-0099-08), and is worn on the 15-0099-16 leather belt (R15-0099-16). It takes the Adflo high-efficiency filters (R15-0299-2) and connects to the helmet through the SG-30W self-adjusting breathing (RSG-30W) tube, whose 15-0099-12 O-ring seal (R15-0099-12) ensures tightness.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.

R35-1099-01

Data sheet

Product group
Safety equipment
Main category
Personal protection
Sub category
Respiratory protection
Sub sub category
Adflo Welding Respirators by 3M
Name of the product
Adflo Motor Blower
Series of products
Adflo
Product code
R35-1099-01
Sort by keywords
Face masks & cartridges
Product use
For welding work
Approved/Certified
NIOSH approved in the approved Adflo configuration
Manufacturer
3M (TM)
Country of origin
Poland
Features
Replacement blower that delivers filtered air from the Adflo respirator to the welding helmet
Operating temperature
-5 °C to 55 °C
Material1
Polyamide
Material2
ABS
Washable
Wipe with a damp cloth, do not immerse in water
Length (in/cm)
11.6 in / 29.46 cm
Width (in/cm)
3.8 in / 9.65 cm
Height (in/cm)
16.19 in / 41.12 cm
Weight (lb/kg)
1.58 lb / 0.717 kg
Availability
Please note: Available only on special order
Sold by
Unit
Color
Black
HS Code
9020000000
Care and maintenance
Do not open; clean the outside with a damp cloth and mild detergent, without solvents, immersion or compressed air.
Return conditions
Not returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Specific References

UPC
076308943684
MPN
35-1099-01

Download

3M Speedglas 2607903

Official 3M technical document for the models listed in the document.

Download (453.04KB)

3M Speedglas 1173591

Official 3M technical document for the models listed in the document.

Download (857.18KB)
