Fixed steel anchorage connector with D attachment, 5000 lb, Peakworks

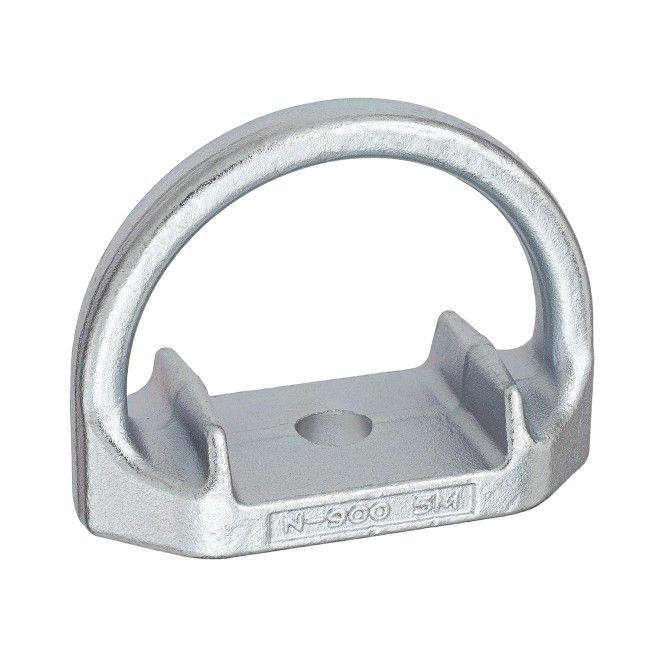

Fixed steel anchorage connector with D attachment

The Peakworks fixed steel anchorage connector is a permanent anchorage point designed for fall protection. It features a D-shaped metal attachment that reduces the risk of connector roll-out. It fastens to a load-bearing structure (mounting bolts not included) and serves as an attachment point to connect a harness, lanyard or retractable to a fall protection system. Peakworks manufacturer codes: V8221111, model CP-10011-1. Sold individually.

It meets the CSA Z259.15 and ANSI Z359.18 standards as well as OSHA requirements, and withstands a force of 5000 lb (22 kN) without deforming. For use by a single person, with a maximum capacity of 310 lb (140.6 kg), including clothing and tools. Built for harsh environments, it withstands temperatures from -40 °F to 130 °F (-40 °C to 54 °C).

Advantages of the fixed anchorage connector

Rugged and permanent, this steel connector provides a reliable anchorage point whose D shape limits roll-out, for repeated use on a load-bearing structure.

Features and safety of the anchorage connector

• D-shaped metal attachment reducing roll-out
• Steel body for permanent use
• 5000 lb (22 kN) strength without deformation
• Compliant with CSA Z259.15 and ANSI Z359.18, OSHA requirements
• Worker capacity: 310 lb (140.6 kg), equipment included
• Dimensions: width 1¾ in (45 mm), length 4 in (102 mm); bolt hole ½ in (12.7 mm)
• Temperature range: -40 °F to 130 °F (-40 °C to 54 °C)
• Mounting bolts not included

Job sites and industries where this connector is required

• Permanent anchorage points at height
• Construction, industry and structure maintenance
• Fastening on a beam, wall or load-bearing structure
• Any recurring station requiring a 5000 lb fixed anchor

Installation and anchorage point

The connector fastens to a load-bearing structure able to support the required load, using ½ in bolts (not included), according to the manufacturer's instructions. As with any fall protection anchorage point, the location must be selected by a competent person: assess the fall distance, the free clearance below the worker, the rescue measures and the anchor strength (5000 lb).

Inspection of the anchorage connector

The worker is responsible for a routine inspection before each use: look for any sign of degradation, wear, corrosion, malfunction or breakage. Replace the connector at the first sign of failure. It should also be inspected periodically by a qualified person other than the worker. Any equipment subjected to a fall or impact must be removed from service. Sylprotec offers a fall protection equipment inspection service; see the Services tab.

FAQ about the fixed anchorage connector

Here are the most frequent questions about the fastening, capacity and compliance of this anchorage connector.

Are the mounting bolts included?

No. The mounting bolts are not included; use ½ in (12.7 mm) bolts suited to your structure.

What load does this connector support?

It withstands a force of 5000 lb (22 kN) without deforming and suits a worker with a maximum weight of 310 lb (140.6 kg), equipment included.

On what structure can it be installed?

On a load-bearing structure able to support the required load, according to the manufacturer's instructions.

Suggested anchorage and fall protection products

To build a complete fall protection system, this connector combines with the rest of the protection chain. Also consider a class A harness (FPH1000A), a panic-lock grab (FPACC), a vertical lifeline rope (FPAC), a stainless permanent anchorage connector (FPA826), a temporary concrete anchor (FPAF075N), an anchor sling (FPAE), a fixed anchorage connector (FPA822) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
