Polyester anchor strap with steel ring, 3-4-6 ft, Peakworks
FPAECS-3
$22.25
Peakworks 1-15/16 in polyester anchor strap, with small steel ring and choker loop. Available in 3, 4 or 6 ft, 5000 lb.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

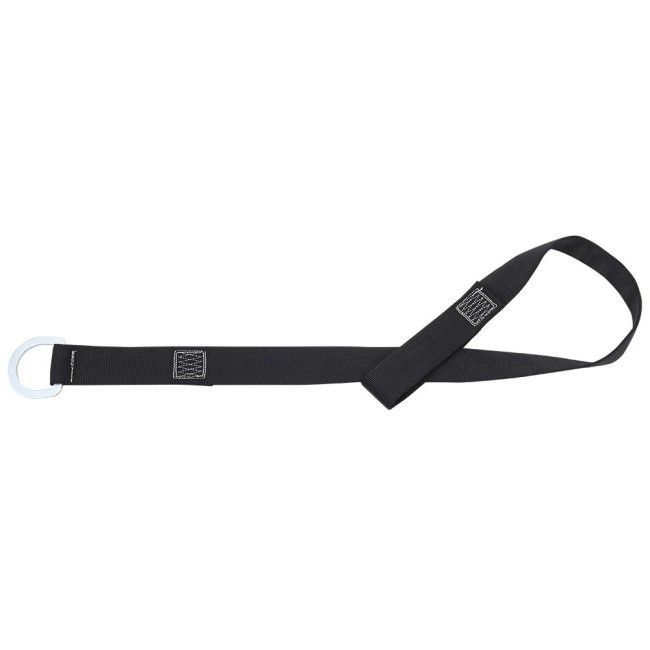

Polyester anchor strap with steel ring
The Peakworks anchor strap is a flexible anchorage connector designed for fall protection. Made from 1-15/16 in (4.9 cm) woven polyester, it features a small steel ring at one end to attach a connector to the anchorage point, and a choker loop at the other end to wrap it around a solid structure. Peakworks manufacturer codes: V8209504, model CAS4-4 (4 ft). Sold individually.
It is designed to withstand static forces of 5000 lb (22 kN), in compliance with the CSA Z259.15-17 and ANSI Z359.1-2007 standards. It is available in 3 ft, 4 ft or 6 ft (0.91, 1.22 or 1.83 m) — choose the size from the drop-down menu above.
Advantages of the anchor strap
Light and versatile, this strap creates a quick anchorage point around a solid structure, adapting to different configurations thanks to its choker loop.
Features and safety of the anchor strap
- 1-15/16 in (4.9 cm) woven polyester
- Small steel ring at one end, choker loop at the other
- Withstands static forces of 5000 lb (22 kN)
- Compliant with CSA Z259.15-17 and ANSI Z359.1-2007
- Available in 3, 4 or 6 ft (0.91, 1.22 or 1.83 m)
Job sites and industries where this strap is required
- Work at height requiring a temporary anchorage point
- Construction, framing and general industry
- Anchoring around a beam, pillar or load-bearing structure
- Any job site requiring a flexible 5000 lb anchor
Installation and anchorage point
Wrap the strap around a solid structure able to support the required load, then pass the small ring through the choker loop to create an anchorage point. Then connect your harness, lanyard or retractable with an approved connector. As with any fall protection anchorage point, assess the fall distance, the free clearance below the worker, the rescue measures and the anchor strength (5000 lb).
Inspection and maintenance of the strap
The worker is responsible for a routine inspection before each use: look for any sign of wear, cut, fraying, burn or degradation of the strap and ring. Replace the strap at the first sign of failure. It should also be inspected periodically by a qualified person other than the worker. For cleaning, use mild soap and lukewarm water (37 °C), with no bleach or abrasive or chemical products; air-dry, away from sunlight, without excessive heat. Any equipment subjected to a fall or impact must be removed from service. Sylprotec offers a fall protection equipment inspection service; see the Services tab.
FAQ about the anchor strap
Here are the most frequent questions about the use, capacity and lengths of this anchor strap.
What is this anchor strap used for?
It creates a temporary anchorage point around a solid structure, to which a harness, lanyard or approved retractable connects.
What load does it support?
It withstands static forces of 5000 lb (22 kN), in compliance with CSA Z259.15-17 and ANSI Z359.1-2007.
What lengths are available?
It is available in 3, 4 or 6 ft (0.91, 1.22 or 1.83 m). Select the size from the drop-down menu above.
Suggested anchorage and fall protection products
To build a complete fall protection system, this strap combines with the rest of the protection chain. Also consider a class A harness (FPH1000A), a panic-lock grab (FPACC), a vertical lifeline rope (FPAC), a stainless permanent anchorage connector (FPA826), a temporary concrete anchor (FPAF075N), an anchor sling (FPAE), a fixed anchorage connector (FPA822) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPAECS-3
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Mooring strap
- Product code
- FPAECS
- Approved/Certified
- Complies with CSA Z259.15-17 and ANSI Z359.1-2007 standards
- Manufacturer
- Peakworks
- Country of origin
- China
- Choice of format
- 3 sizes available: 3, 4 or 6 feet / 0.91, 1.22 or 1.83 m
- Reusable
- Reusable with careful inspection and proper installation
- Features
- This strap has a small ring to connect the connecting link to an anchor point. The other end consists of a choke loop
- Characteristic adding safety
- Designed to withstand static forces of 5000 lbs (22 KN)
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your strap. Air dry
- Length (in/cm)
- 12 in / 30.48 cm
- Width (in/cm)
- 2 in / 5.08 cm
- Height (in/cm)
- 2 in / 5.08 cm
- Weight (lb/kg)
- 0.8 lb / 0.3 Kg
- ***Size and weight according to selection***
- Based on the FPAECS-6
- Sold by
- Unit
- Color
- Black/Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Specific References
- upc
- 626053596651
