PeakWorks Galvanized Cable Anchor Sling, Snap Hook and O-Ring

PeakWorks Galvanized Cable Anchor Sling, Snap Hook and O-Ring

PeakWorks manufacturer codes: V8208404, model AS-21210-4 (4 ft); V8208406, model AS-21210-6 (6 ft).

Available in 2 lengths (4 ft (1.2 m) and 6 ft (1.8 m)). Select the desired length from the drop-down menu.

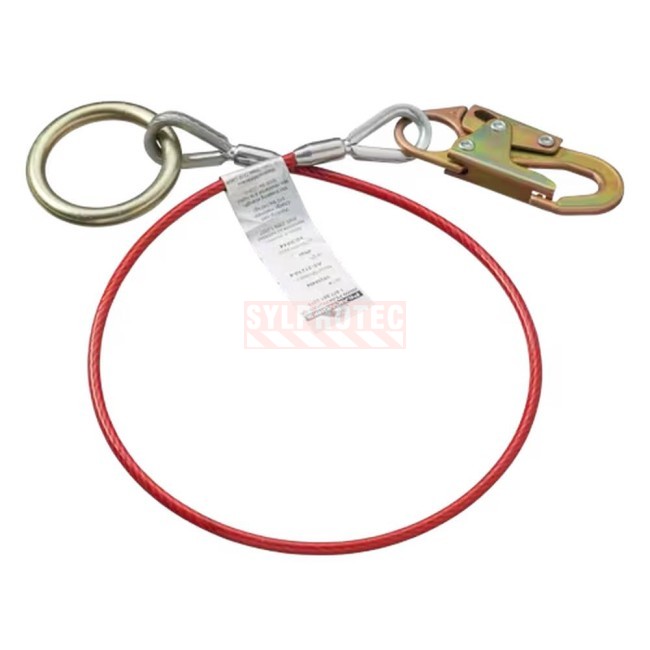

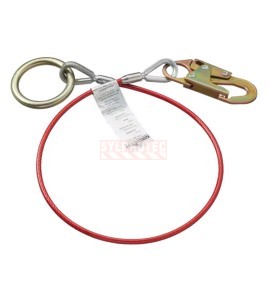

The PeakWorks cable anchor sling creates a temporary anchor point where no permanent anchor exists. Its 1/4 in (6 mm) PVC-coated galvanized steel cable has a snap hook at one end and an O-ring at the other. It is placed around a beam or a steel or concrete structure and serves as a connection point for a fall protection system.

Benefits of the PeakWorks anchor sling

• Portable, reusable anchor point, ready to install.
• Durable PVC-coated galvanized steel cable.
• Snap hook at one end and O-ring at the other.
• Available in two lengths, 4 ft and 6 ft.
• Minimum breaking strength of 5,000 lb (22 kN).

Technical specifications

• Brand: PeakWorks.
• Material: 7 x 19 galvanized steel cable, 1/4 in (6 mm), PVC coated.
• Colour: red.

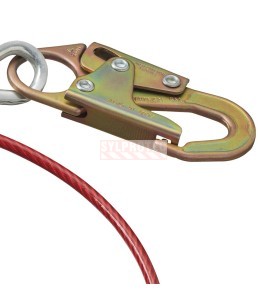

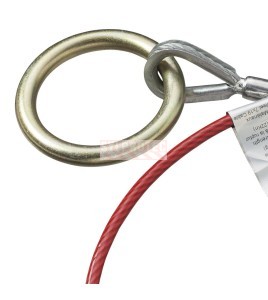

• End configuration: 1 snap hook (end 1), 1 O-ring (end 2).
• Length: 4 to 6 ft / 1.2 to 1.8 m.
• Cable diameter: 1/4 in / 6 mm.
• Capacity: 310 lb (140 kg).
• Minimum breaking strength: 5,000 lb (22 kN).
• Compliance: Meets or exceeds CSA Z259.15 (Class A).
• Application surfaces: Steel, concrete, beam.
• Type of use: Temporary anchor, reusable.
• Weight: 1.83 to 2.08 lb / 0.83 to 0.94 kg.

Applications of the anchor sling

Construction, steel erection, industrial maintenance and any site where a temporary anchor point is required around a beam or a steel or concrete structure. Also used to hold winches and pulleys to an anchor.

Installation of the anchor sling

Wrap the sling around the structure and connect its ends according to the manufacturer's written instructions. Choose a structure able to support the required loads, avoid sharp edges and have a competent person perform the installation.

Inspection of the anchor sling

Before each use, inspect the full length of the cable for damaged PVC coating, broken strands or wires, kinks, crushing and corrosion. Check the snap hook (gate closing and locking) and the O-ring. Remove from service any sling that is damaged or has arrested a fall, and have it evaluated by a competent person.

Maintenance of the anchor sling

Wipe the cable with a clean cloth to remove dirt and moisture, then let it air dry. Store in a clean, dry place away from corrosive chemicals.

Anchorage strength requirements

An anchor alone does not stop a fall: it is part of a complete fall protection system (anchor, connector and harness). Its certified strength must be distinguished from the regulatory threshold, which varies by province and system type. As a guide, for a fall arrest system used with an energy absorber (the normal case in the field), Quebec regulations require an anchor point able to withstand a force of at least 18 kN, while other provinces refer to about 22 kN for an anchor not designed by an engineer. Always have the installation validated by a competent person or an engineer, according to the applicable provincial regulation, and refer to the CSA Z259.15 standard for anchorage connectors.

According to the ANSI Z359.2 standard, the required strength depends on the type of system connected to the anchor point:

• Fall arrest: at least 5,000 lb (22.2 kN) for a non-certified anchorage, or twice the maximum arresting force for a certified anchorage designed by a qualified person.
• Travel restraint: at least 1,000 lb (4.5 kN) non-certified, or twice the foreseeable force for a certified anchorage.
• Work positioning: at least 3,000 lb (13.3 kN), or twice the potential impact load, whichever is greater.
• Rescue: at least 3,000 lb (13.3 kN) non-certified, or five times the applied load for a certified anchorage.

When more than one system is connected to the same anchorage, these values must be multiplied by the number of systems. An anchorage used for a fall arrest system must be independent of any anchorage used to support or suspend a platform (OSHA 1926.502 and 1910.140).

System component compatibility

A personal fall arrest system is ideally designed, tested and supplied as a complete system. In practice, lanyards, connectors, lifelines, energy absorbers and harnesses are often interchanged because some components wear out before others. Not all components are compatible: for example, a lanyard should not be connected between a harness and a self-retracting type deceleration device, which would result in additional free fall the system was not designed for. Any substitution or change must be evaluated by a competent person before the modified system is put in use, in accordance with OSHA 29 CFR 1926.502 and 1910.140.

FAQ about the PeakWorks anchor sling

Is this sling permanent?

No, it is a temporary, portable and reusable anchor.

On which structures can it be used?

Around beams and steel or concrete structures.

Which lengths are available?

4 ft (1.2 m) and 6 ft (1.8 m).

What load does it support?

A capacity of 310 lb (140 kg).
