SAH2
Availability date:

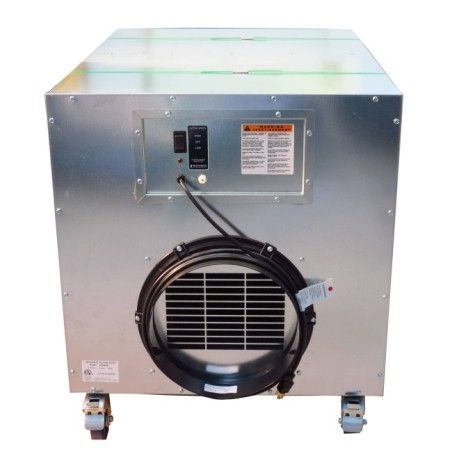

HEPA-AIRE® portable air scrubber (negative pressure vacuum) by Abatement Technologies. This air scrubber has a three steps filtration system ideal for abatement, lead or mold decontamination, or just for general dust suppression work (concrete dust, sawdust and plaster dust or powder). It is commonly referred to as negative air machine in the construction field.
Abatement Technologies manufacturer’s code: H2KM
This air scrubber has three different modes: negative pressure mode, positive pressure mode, recirculation mode. It also features two operating speeds, that is, the low speed at 1300 cfm and the high speed at 2000 cfm. This model of air scrubber is equipped with a visual 'change filter' indicator lamp to notify it is time to change one of the filters.
It is equipped with three different filters which overlaps one another accordingly to a given order. The air scrubber comes with one set of filters, that is, a primary filter, an accordion-shaped secondary filter and a HEPA filter. It is now possible to replace the secondary filter by another secondary filter of activated coal for protection from organic vapors in low concentrations. This type of filter is particularly useful when it comes to mold decontamination work.
This air scrubber is certified ETL and meets UL and CSA requirements as for safety standards. This equipment minimal power supply requirement is 120V/60 Hz. Its normal operating amps is 9 A.
Its galvanized steel cabinet features a 12 in diameter airflow outtake which allows the connexion of the outlet pipe. A panel opens on the front to allow a convenient filter change.
This machine weighs a total of 124 lb (56.25 kg) which is why it features two fixed and two locking 4 in diameter swivel casters. It also has four handles firmly anchored at the bottom of the device.
Unit dimensions:
Length, 35.75 in X Depth, 26 in X Height, 30.25 in
(Length, 90.81 cm X Depth, 66.04 cm X Height, 76.84 cm)
Please note that on asbestos abatement or mold decontamination sites, a DOP test is required:
The DOP test (Dispersed Oil Particulate) has been designed to ensure the integrity and efficiency of HEPA filters in terms of airborne particles containment based on their holding capacity of dispersed oil particulate of 0,3 µm. This type of test is a requirement because it pinpoints any leaks on the HEPA filter, that is, through its accordion-shaped material, its frame or its seals. Note that if particles go around the HEPA filter, the DOP test has failed.
HEPA filters are certified accordingly to current applicable regulations and a certification label shall be placed on the frame of the filter.
Please contact our customer service for more information. Additional travel cost may apply.
Intended as a guideline, here is the mathematical formula to determine the number of air scrubber required according to a given volume. For example:
Step 1, calculate the total volume of the work site
Volume = Length X Width X Height = result in ft³
Step 2, establish the number of air changes required per hour; Québec regulations requires 4 air changes per hour, but elsewhere, it is normally 6 changes of air per hours.
Step 3, find out how many cfm your air scrubber can generate
Step 4, to find out the number of air scrubbers required
Number of air scrubbers = volume in ft³
15 min X air scrubber cfm
Step 5, round off to the next whole number
Example: 1300 cfm low speed HEPA-AIRE & 20 000 ft³ volume
Step 1: 20 000 ft³
Step 2: 4 air changes per hour, so 1 air change every 15 min
Step 3: HEPA-AIRE® has a capacity of 1300 cfm
Step 4: 20 000 ft³ = 1.02 air scrubber
15 min X 1300 cfm
Step 5: rounded off, 2 air scrubbers are required
Example: 2000 cfm high speed HEPA-AIRE & 20 000 ft³ volume
Step 1: 20 000 ft³
Step 2: 4 air changes per hour, so 1 air change every 15 min
Step 3: HEPA-AIRE® has a capacity of 2000 cfm
Step 4: 20 000 ft³ = 0.66 air scrubber
15 min X 2000 cfm
Step 5: rounded off, 1 air scrubber is required
According to these calculations and according to the chosen speed, 1 or 2 HEPA-AIRE air scrubbers are required on work sites in Quebec. Please consider that this result is theoretical since it only takes into account ideal conditions, that is, a perfect air tightness. However, in practice, it requires more cfm to offset the prospective leaks and loss of airflow intake. Opening a door to transfer wastes from one zone to another, power fluctuation, the length of the outlet pipe which may reduce the air scrubber airflow and the saturation level of the filters are all potential source of negative pressure loss. We thus recommend you foresee a more powerful air scrubber than what you theoretically need or more machines than calculated to ensure a safe work environment.
For more information, please consult the manufacturer’s manual available at the bottom of the page.
Type of product | Safety equipment |
Main category | Industrial accessoiries |
Sub category | Asbestos decontamination |
Name of the product | Portable air purifier |
Product code | SAH2 |
Product use | Air cleaners and accessories |
Power supply requirements | 115-120V, 60Hz, single phase, 15 Amp circuit |
Normal operating amps | 10 Amps or less |
Operating flow rate | 1300 cfm to 2000 cfm |
Operational sound level | 70 dbA on high speed, reading taken at 5 feet |
Primary filter capacity | Capture particles 10 microns or larger. |
Primary filter dimensions | 24 in X 24 in X 1 in |
Secundary filter capacity | Captures particles the size of 3 µm to 10 µm. |
Secundary filter dimensions | 24 in X 24 in X 2 in |
HEPA filter dimensions | 24 in X 24 in X 6 in |
HEPA Filter efficiency | Efficiency of 99.97% |
HEPA Filter capacity | Capture particles of 0.3 µm or more |
Length (in/cm) | 33 in / 83.82 cm |
Width (in/cm) | 32 in / 81.28 cm |
Height (in/cm) | 20 in / 50.8 cm |
Weight (lb/kg) | 140 lb / 63.5 Kg |
