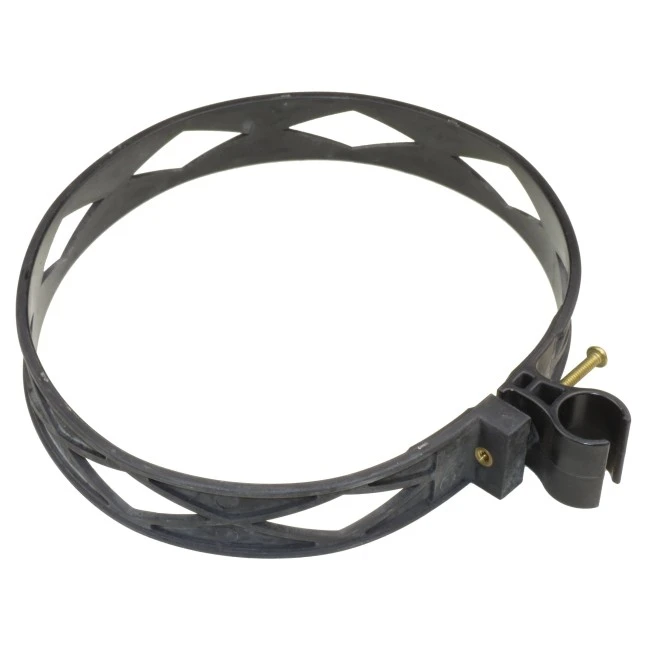

Heavy-duty black plastic extinguisher strap with hose clip, for Amerex Class D fire extinguishers.

Heavy-duty extinguisher strap with hose clip, for Amerex Class D fire extinguishers for metal fires (recognizable by their yellow cylinders).

Dimensions: Belt diameter 7 ¾ inches (19.7 cm). Clip for 7/8-inch (2.3 cm) diameter hose.

Material: Black plastic.

This extinguisher hose strap is compatible with the EXD570 (Amerex Model 570 with sodium chloride) and the EXD571 (Amerex Model 571 with copper powder) metal fire extinguishers. Please note these extinguishers require two hose straps to properly secure the hose and the nozzle. The strap is adjustable with a metal screw.

Why use a hose strap?
A hose strap safely secures the extinguisher hose to the extinguisher body. This helps protect the hose against accidental bumps and snags, and increases its service life.

How to install the hose strap?
Place hose strap around the fire extinguisher. Adjust strap by tightening it until it is snug against the extinguisher. Cut excess strap length, then place hose into clip.
The hose strap must be tightly secured to the extinguisher, so that it won’t move or slip. Otherwise, the hose might become stuck in the strap when you need to use the extinguisher. We recommend performing a test before cutting the excess strap length.
