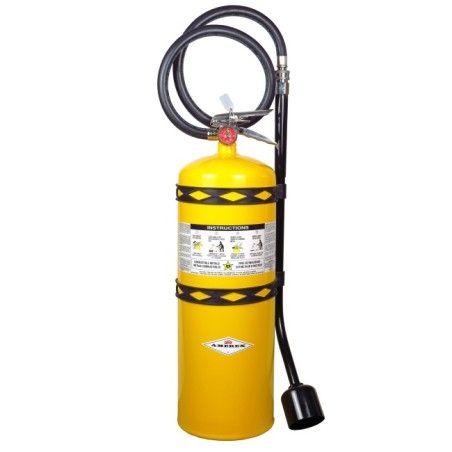

Amerex portable fire extinguisher with sodium chloride, 30 lbs, type D (sodium, potassium or magnesium fires), with wall hook

30 lb class D sodium-chloride extinguisher, Amerex

The 30 lb Amerex sodium-chloride portable extinguisher is designed for class D fires, namely combustible-metal fires such as sodium, potassium and magnesium. Rugged and FM approved, it is ideal for laboratories, metal plants and workshops handling these materials. It comes with a wall hook.

The extinguishing agent is sodium chloride, pressurized with argon. Data shows that zirconium, uranium, titanium and powdered-aluminum fires can also be controlled and extinguished with this extinguisher. The cylinder is steel with a weather-resistant baked polyester enamel finish. This Amerex extinguisher is easy and safe to use, thanks to illustrated instructions and a wand that helps apply the powder effectively; the agent forms a crust over the flames and smothers them.

Specifications of the class D extinguisher

• Agent type: the extinguishing agent is sodium chloride, pressurized with argon.

• Fire class: class D (combustible metals).

• Capacity: 30 lb.

• Approval: FM approved.

• Discharge range: 3 to 6 ft (0.9 to 1.8 m).

• Discharge time: 28 seconds.

• Operating temperature: -40°C to 49°C (-40°F to 120°F).

• Weight: 53 lb (24 kg).

• Material: steel.

• Manufacturer: Amerex.

Fire classes and safety warnings

This Amerex sodium-chloride extinguisher is designed exclusively for class D fires (combustible metals): sodium, potassium or magnesium fires. The D570 model allows safe use on magnesium-chip fires, spills over 1.13 cm (1/2 in) of sodium or potassium, and even sodium-potassium alloy fires.

• Class D only: do not use on class A (wood, paper, fabric), B (flammable liquids), C (electrical) or K (cooking oils and greases) fires.

• Intense heat: class D fires release intense heat; do not disturb the fuel until it has cooled.

• After the fire: promptly clean any metal parts that contacted the agent, as it can be corrosive.

Extinguisher maintenance and inspection

A class D extinguisher only protects you if it is kept in good condition. Regular maintenance ensures it will work the day you need it.

• Monthly visual inspection: check the gauge, pin, seal, applicator wand and that the steel cylinder is free of damage or corrosion.

• Annual servicing: have the extinguisher inspected yearly by a certified technician (NFPA 10 / local regulations).

• Recharge: any extinguisher that has been used, even partially, must be recharged immediately by a qualified shop.

• Hydrostatic test: the cylinder must undergo periodic pressure testing per the standard.

• After use: promptly clean any metal parts that came into contact with the agent, as it can be corrosive.

FAQ about the class D extinguisher

What is a class D fire?

A class D fire is a combustible-metal fire. It fights sodium, potassium and magnesium fires. It requires a specific agent and must never be replaced by an ordinary extinguisher.

How is the applicator wand used?

The wand (soft-flow applicator) allows a gentle, controlled application of the powder, which forms a crust that smothers the fire, while keeping the operator away from the heat.

Which metals does it work on?

Sodium, potassium, magnesium and, per available data, zirconium, uranium, titanium and powdered aluminum. For lithium fires, use the EXD571 model instead.

Complete fire protection and signage

For complete fire protection, equip each at-risk area with an extinguisher matched to its fire class, mount it correctly and clearly mark it. Sylprotec offers the full range of portable extinguishers, brackets and cabinets to build a coherent setup.

Sylprotec also offers an inspection and maintenance service for portable extinguishers in the greater Montreal area, plus a full range of fire-protection signs to reduce reaction time.

Suggestions and accessories for your class D extinguisher

See also a copper-agent extinguisher for lithium fires (EXD571), a transport cart for heavy extinguishers (EXCAD), a rugged wall hook (CUNI20), an ABC dry powder 20 lb (EXABC20), an ABC size 5 lb (EXABC5), a semi-recessed cabinet (EC7), a hammer with chain for the cabinet (ECM) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.
