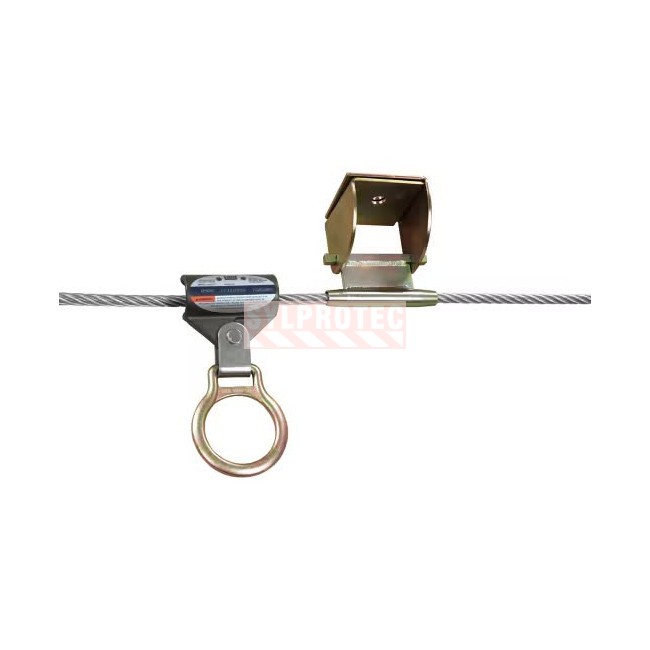

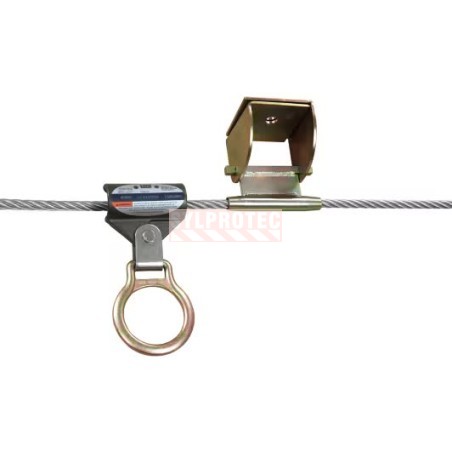

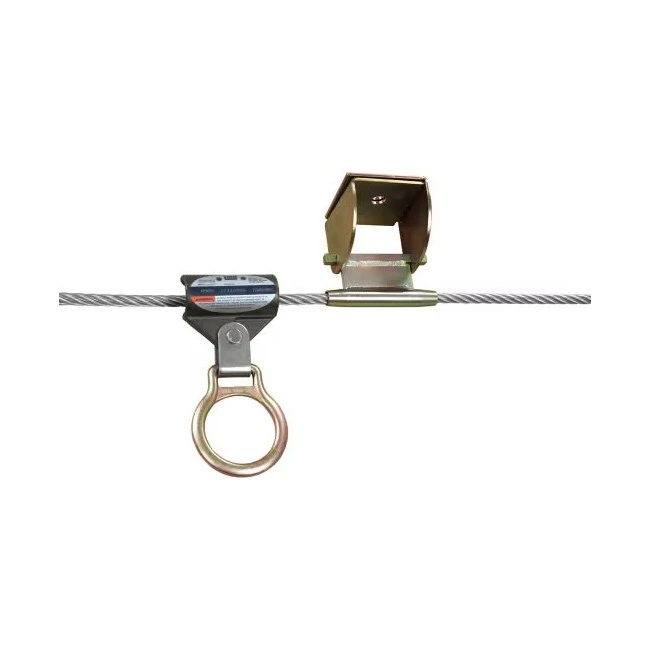

Sayfline DBI-SALA 3M 7603020 variable-span horizontal lifeline system, galvanized cable 20 ft

Sayfline DBI-SALA 3M 7603020 variable-span horizontal lifeline system, galvanized cable 20 ft

3M purchase code: 7012820321, model: 7603020

The Sayfline variable-span horizontal lifeline system by DBI-SALA 3M is a permanent, ready-to-use system designed to be installed by the user. It is built around a 7 x 19 galvanized cable of 3/8 in (9.5 mm) with a length of 20 ft (6.1 m) and includes a metal energy absorber that reduces fall-arrest forces. Its mounting brackets allow the line to be installed above, at the same height as, or below the user, depending on the job site configuration.

Benefits of the Sayfline system

• Permanent variable-span horizontal lifeline system, ready to use
• 7 x 19 cable of 3/8 in (9.5 mm), available in galvanized or stainless steel
• Metal energy absorber that reduces fall-arrest forces
• Customizable variable-span configurations
• Installation above, at the same height as, or below the user
• Designed to be installed by the user with the supplied mounting hardware

Technical specifications of the Sayfline system

• Product type: permanent variable-span horizontal lifeline system
• Cable: 7 x 19, 3/8 in (9.5 mm), galvanized steel
• Lifeline length: 20 ft (6.1 m)
• Load capacity: 141 kg (310 lb) per worker
• Maximum number of workers: 2
• Span type: variable span
• Included components: cable, intermediate bracket, tensioner, mounting hardware and energy absorber
• Weight: about 10 kg (22 lb)

Capacity and use of the Sayfline system

The system protects up to 2 workers moving horizontally, each with a maximum weight of 310 lb (141 kg) including equipment. A horizontal lifeline is not a simple line stretched between two anchors: its design, tension and fastening must comply with applicable standards. Always have the design, installation and verification of the system carried out by a competent person or engineer, per the applicable provincial regulation.

FAQ about the Sayfline variable-span system

What is the length of this system?

This reference corresponds to a 20 ft (6.1 m) cable. The Sayfline system is also available in several lengths and in stainless steel; contact us for another configuration.

Is the energy absorber included?

Yes. The system includes the cable, an intermediate bracket, a tensioner, the mounting hardware and a metal energy absorber that reduces fall-arrest forces.

How many workers can be protected?

Up to 2 workers at a time, each with a maximum weight of 310 lb (141 kg) including equipment.

Can the system be installed below the user?

Yes. The mounting brackets are designed to install the line above, at the same height as, or below the user, depending on the job site configuration.

Complementary fall protection equipment suggestions

The installer who deploys this horizontal lifeline system on a steel structure works at height, exposed to the void along the whole span. A wrong move or unsuitable equipment is enough to turn a routine maneuver into a serious fall. On this type of job site, he wears his full personal protective equipment: a full DBI-SALA harness (FPH140103XCAP) tied to his self-retracting lifeline (FPLR3101507) or to his energy-absorbing lanyard (FPL5400), cut-resistant gloves (G378GKGVBE), safety glasses (YA11329), a helmet (TA80) retained by its chinstrap (TA80CS), a high-visibility vest (V6935) and earplugs (OA1101).

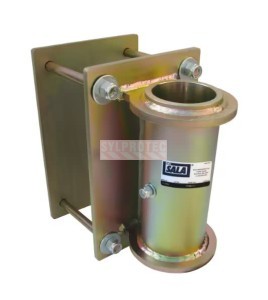

This system forms a complete horizontal span: to anchor it on an I-beam, pair it with the SecuraSpan end stanchions (FPA74000XX) or the clamp-on vertical base (FPA7400211). Also plan a height rescue device (FPLR5503325) to evacuate a suspended worker, and mark off the ground work zone with warning tape (ECT3YE1).
