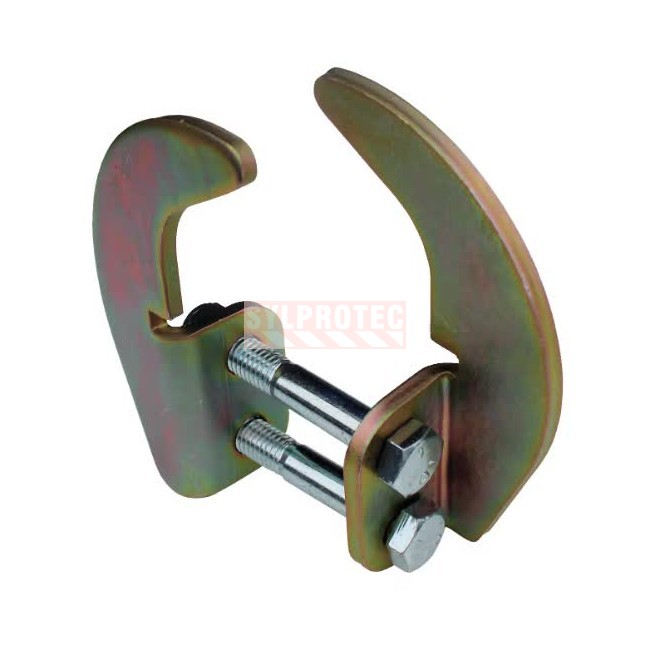

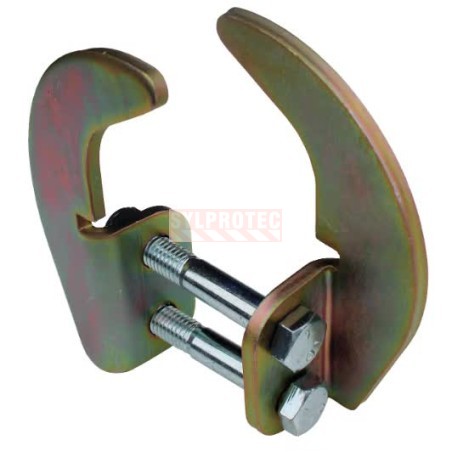

SecuraSpan DBI-SALA 3M pass-through bracket for horizontal lifeline on I-beam, zinc-plated steel, model 7400008

SecuraSpan DBI-SALA 3M 7400008 pass-through bracket for horizontal lifeline on I-beam, zinc-plated steel

3M purchase code: 7100314307, model: 7400008

The SecuraSpan pass-through bracket by DBI-SALA 3M is an accessory that converts an end stanchion into an intermediate stanchion for a horizontal lifeline on an I-beam. Fastened to the top of the stanchion with the provided hardware, it receives the lifeline that routes through its guides, allowing several consecutive spans to be covered. Its zinc-plated steel construction provides corrosion resistance and longevity from one jobsite to the next.

Benefits of the SecuraSpan pass-through bracket for I-beam

• Converts an end stanchion into an intermediate stanchion
• Lets the horizontal lifeline route through to cover multiple spans
• Simple fastening on top of the stanchion with the provided hardware
• Durable, corrosion-resistant zinc-plated steel construction
• Compatible with the SecuraSpan stanchions and components available
• Horizontal lifeline span up to 18.3 m (60 ft)

Technical specifications of the zinc-plated pass-through bracket

• Product type: pass-through bracket (intermediate bracket) for a horizontal lifeline on an I-beam
• Material: zinc-plated carbon steel
• Attachment method: bolt-on, hardware included
• Load capacity: 141 kg (310 lb) per worker, equipment included
• Standards: OSHA 29 CFR 1910.140 and 1926.502, ANSI
• System minimum breaking strength: 22.2 kN (5,000 lbf)
• Weight: about 0.45 kg (1 lb)
• Lifeline and stanchions: order separately

Capacity and use of the pass-through bracket on horizontal lifeline

The pass-through bracket mounts on a SecuraSpan stanchion to create an intermediate point through which the horizontal lifeline continues. To cross the bracket, the worker's connector must be rotated upwards to navigate around the hook-shaped guides. The bracket does not form a fall-arrest system on its own: it is part of a complete assembly comprising the stanchions, the lifeline, an energy absorber, a connector and a harness. Always have the design and verification of the system carried out by a competent person or engineer, per the applicable provincial regulation.

FAQ about the SecuraSpan pass-through bracket

What is the pass-through bracket for?

It converts a SecuraSpan end stanchion into an intermediate stanchion, letting the horizontal lifeline route through and cover multiple spans.

Is the mounting hardware included?

Yes. The bracket fastens to the top of the stanchion with the provided hardware.

Are the lifeline and stanchions included?

No. The pass-through bracket is sold individually; the stanchions, lifeline, cable and energy absorber are ordered separately.

Is there a special precaution when crossing?

Yes. When crossing the bracket, the worker's connector must be rotated upwards to navigate around the hook-shaped guides; larger connectors may not be able to cross the bracket.

Complementary fall protection equipment suggestions for horizontal lifeline

The structural steel ironworker who installs this pass-through bracket on a SecuraSpan stanchion works at height along a beam, exposed to the void. On this type of job site, he wears his full personal protective equipment: a full DBI-SALA harness (FPH140103XCAP) tied to his self-retracting lifeline (FPLR3101507) or to his energy-absorbing lanyard (FPL5400), cut-resistant gloves (G378GKGVBE), safety glasses (YA11329), a helmet (TA80) retained by its chinstrap (TA80CS), a high-visibility vest (V6935) and earplugs (OA1101).

This pass-through bracket is one component of a horizontal lifeline system: pair it with the SecuraSpan end stanchions (FPLH74000XX) and the complete temporary horizontal lifeline system (FPLVH) with tensioned cable and energy absorber to form a complete span. Also plan a height rescue device (FPLR5503325) to evacuate a suspended worker, and mark off the ground work zone with warning tape (ECT3YE1).
