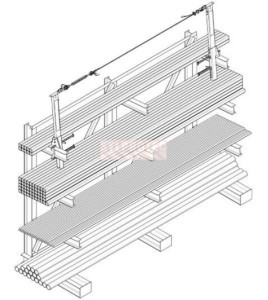

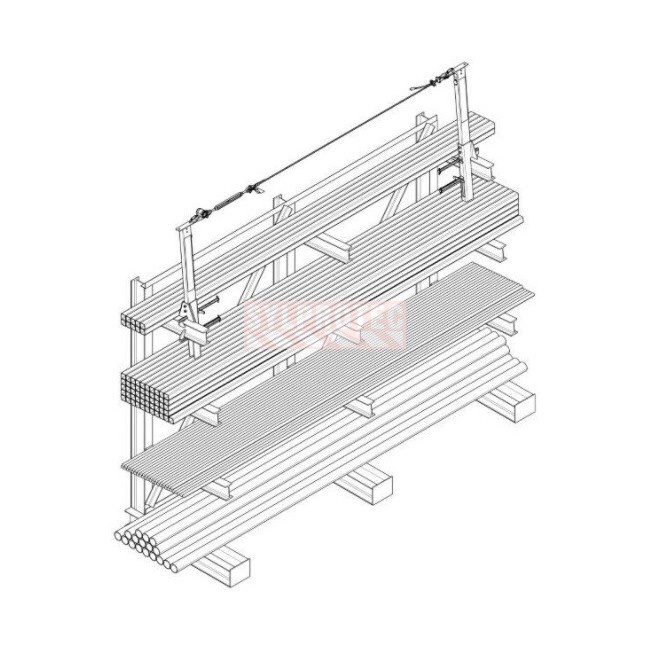

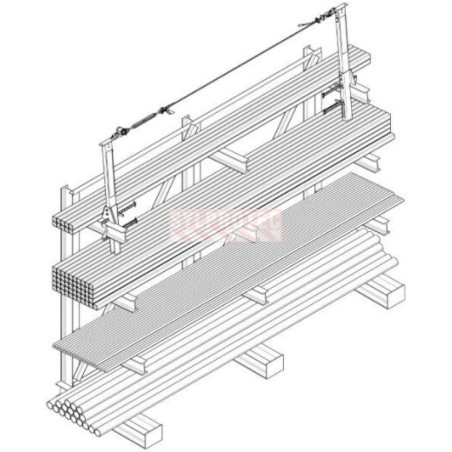

SecuraSpan DBI-SALA 3M 7400087 end stanchion with base for perpendicular I-beam horizontal lifeline, galvanized steel

SecuraSpan DBI-SALA 3M 7400087 end stanchion with base for perpendicular I-beam horizontal lifeline, galvanized steel

3M purchase code: 7100220277, model: 7400087

The SecuraSpan perpendicular stanchion by DBI-SALA 3M is a component of a temporary horizontal lifeline installed on a perpendicular I-beam. Its adjustable jaw clamps onto beam flanges 8 to 14 in (20.3 to 35.5 cm) wide. Its steel construction provides strength and durability from one jobsite to the next, and it is part of the modular SecuraSpan system assembled with the end stanchions, tensioned cable and energy absorber.

Benefits of the SecuraSpan perpendicular stanchion

• Component of a temporary horizontal lifeline for a perpendicular I-beam
• Jaw opening range: beam flanges 8 to 14 in (20.3 to 35.5 cm) wide
• Modular, lightweight and portable design
• Strong and durable steel construction
• Compatible with SecuraSpan system components and lengths

Technical specifications of the SecuraSpan bracket

• Product type: perpendicular stanchion for a perpendicular I-beam horizontal lifeline
• Material: steel
• Compatible flange width: 8 to 14 in (20.3 to 35.5 cm)
• Load capacity: 141 kg (310 lb) per worker
• Installation type: temporary and portable
• Dimensions: 8.1 x 36.7 x 8.8 in (height x width x length)
• Weight: 43.0 lb
• Cable and absorber: order separately

Capacity and use of the perpendicular bracket

This component does not form a fall-arrest system on its own: it is part of a complete assembly comprising the lifeline beam, an energy absorber, a connector and a harness. Always have the design and verification of the system carried out by a competent person or engineer, per the applicable provincial regulation, each worker having a maximum weight of 310 lb (141 kg) including equipment.

FAQ about the SecuraSpan bracket for I-beam

Does this part form a system on its own?

No. It is a component of the modular SecuraSpan system that combines with the end stanchions, tensioned cable and energy absorber to form a complete horizontal lifeline.

On which beams can it be installed?

On perpendicular I-beams whose flanges are 8 to 14 in (20.3 to 35.5 cm) wide.

Are the cable and absorber included?

No. The part is sold individually; the tensioned cable, energy absorber and other SecuraSpan components are ordered separately.

What is the weight of this stanchion ?

The stanchion weighs 43 lb (19.5 kg). Its modular, portable design makes it easy to transport and install from one site to another.

How many workers can the system protect ?

Up to 2 workers per span and 6 workers total, each with a maximum weight of 310 lb (141 kg) including equipment, once the complete SecuraSpan system is assembled.

Complementary fall protection equipment suggestions

The structural steel ironworker who installs this horizontal lifeline works at height, exposed to the void. A wrong move or unsuitable equipment is enough to turn a routine maneuver into a serious fall. On this type of job site, he wears his full personal protective equipment: a full DBI-SALA harness (FPH140101XCAP) tied to his self-retracting lifeline (FPLR3101507) or to his energy-absorbing lanyard (FPL5400), cut-resistant gloves (GS13GDSTL), safety glasses (YA3299), a helmet (TA82) retained by its chinstrap (TA80CS), a high-visibility vest (V6937) and earplugs (OA1101).

This component is part of a horizontal lifeline system: pair it with the complete temporary horizontal lifeline system (FPLVH) with tensioned cable and energy absorber, along with the SecuraSpan end stanchions (FPA74000XX) to form a complete span. Also plan a height rescue device (FPLR550) to evacuate a suspended worker, and mark off the ground zone with warning tape (ECT3YE1).
