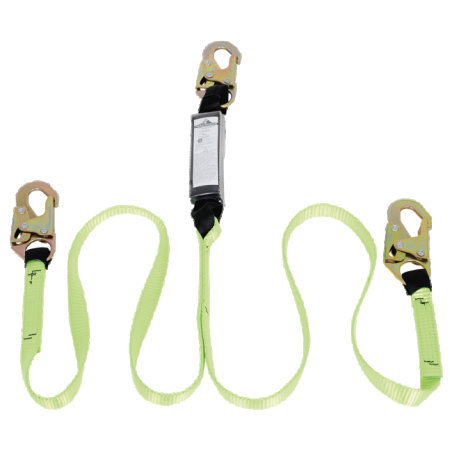

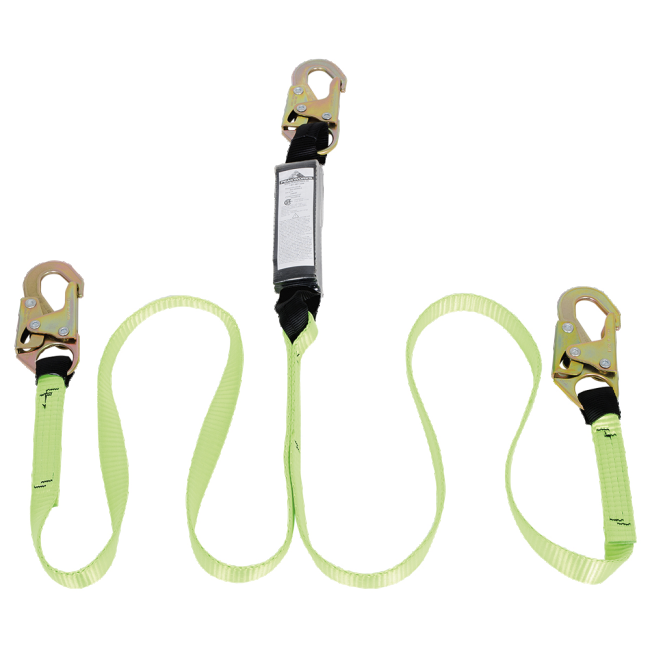

Peakworks Y-lanyard with an energy absorbing pack and a 1 in polyester webbing,110-220 lb
FPL54000-4
$128.70
Peakworks Y-lanyard with Shock Pack absorber for 100% tie-off. 3 standard ¾ in carabiners, 110 to 220 lb.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Peakworks Y-lanyard with 3 standard carabiners for continuous tie-off
The Peakworks Y-lanyard is a polyester lanyard with a Shock Pack energy absorber. Its key feature: two identical legs (Y shape) that let the worker stay tied off at all times while moving from one anchorage point to another — the "100% tie-off" principle. It is equipped with three standard carabiners with a ¾ in (19 mm) opening. It can support a worker weighing 110 to 220 lb (49 to 99 kg), including clothing, tools and equipment.
Peakworks product code: V8104804 or model SA-54000-4. This lanyard complies with ANSI Z359.1-2007. It is available in 4-foot or 6-foot lengths (selectable from the drop-down menu) and fitted with certification labels at one end. Webbing width: 1 in (25 mm).
The energy absorber is designed to reduce the impact force of a fall below 900 lb (4 kN). During a fall, it deploys over a distance of 48 in (4 ft) to reduce the force experienced by the worker at arrest. Once the absorber has deployed, the lanyard and harness must be replaced: it is the sign that the equipment did its job and protected a life.
The three carabiners (hooks) are made of steel, self-locking and double-action. They meet ANSI Z359.1-2007 and withstand a force of 3600 lb (16 kN) without deforming. The carabiner closest to the energy absorber must be connected to the harness dorsal D-ring; the other two connect to anchorage points during transfers.
Advantages of the Peakworks Y-lanyard
This Y-lanyard maximizes safety during movement at heights by always keeping an active attachment point.
Lanyard features and safety
- Y shape (2 legs) to stay "100% tied off" during transfers
- Connectors: 3 standard carabiners ¾ in
- Shock Pack energy absorber (impact below 900 lb), 48 in deployment
- 1 in wide tubular polyester webbing
- Steel carabiners, 3600 lb resistance
- Capacity of 110 to 220 lb (49 to 99 kg), including tools and equipment
Job sites and industries where this lanyard is required
- Scaffold work and tubular structures
- Movement at heights requiring continuous tie-off
- Construction, framing and structure assembly
- Building maintenance and industrial upkeep
- Installation of equipment at heights
About the anchorage point
The anchorage point should preferably be located above the level of the harness dorsal D-ring and positioned vertically relative to the user. The user must assess the risks of a fall: is there enough clear distance free of obstacles below the worker? Are emergency measures in place to recover the worker quickly? Can the anchorage point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.
Safety lanyard inspection
The worker is responsible for performing a routine inspection before each use. The worker must note any sign of degradation, wear, malfunction or breakage (webbing, stitching, carabiners), and replace the lanyard at the first sign of failure. This lanyard should also be inspected periodically by a qualified person other than the worker (from every 90 days to yearly depending on the manufacturer and conditions). The recommended lifetime of a lanyard is 5 years. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a lanyard and harness inspection service; to learn more, see the Services tab.
Fall arrest lanyard maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. If your lanyard is too dirty or contaminated, it is time to replace it. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Peakworks Y-lanyard
What is a Y-lanyard and "100% tie-off"?
A Y-lanyard has two legs. When transferring from one anchorage point to another, the worker connects the second leg before detaching the first, thus always staying secured.
Is there a version for higher loads?
Yes. This version covers 110 to 220 lb; an equivalent heavy-duty version covers 200 to 350 lb. The Y "100% tie-off" operation is identical on both.
What is the capacity of this lanyard?
It suits a worker with a total weight of 110 to 220 lb (49 to 99 kg), including clothing, tools and equipment.
Suggested complementary products
To complete your fall protection, also consider an anchorage sling (FPAE), a fixed anchorage point (FPA822), a sling anchor (FPAECS), a basic class A harness (FPH1000A), a contractor 3-ring harness (FPH2000AP), a Peakpro anti-trauma harness (FPH3000AP), a lumbar support harness (FPH4000AP) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPL54000-4
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Lanyard
- Product code
- FPL54000
- Approved/Certified
- Complies with ANSI Z359.1-2007
- Manufacturer
- Peakworks
- Country of origin
- China
- Choice of format
- Length of 4 or 6 ft / 1.22 or 1.83 m
- Types of lanyards
- Y-shaped double lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The energy absorber is designed to reduce the impact force of the fall below 900 lb (4 kN)
- Additional Features
- It has two identical straps that allow the worker to remain attached while moving from one anchor point to another
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with tree standard carabiners with a ¾" / 19 mm opening. They are self-locking and require a double action to open
- Includes
- With an energy absorber Shock Pack
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 110 to 220 lb / 49 to 99 Kg
- Form
- «Y»
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer.
- Length (in/cm)
- 11 in / 27.94 cm
- Width (in/cm)
- 9 in / 22.8 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 3.7 lb / 1.7 Kg
- ***Size and weight according to selection***
- Based on the FPL54000-6
- Sold by
- Unit
- Color
- High Visibility Green/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 110 lb to 220 lb / 49 kg to 99 kg, including clothing, tools and equipment
Specific References
- upc
- 626053620042
