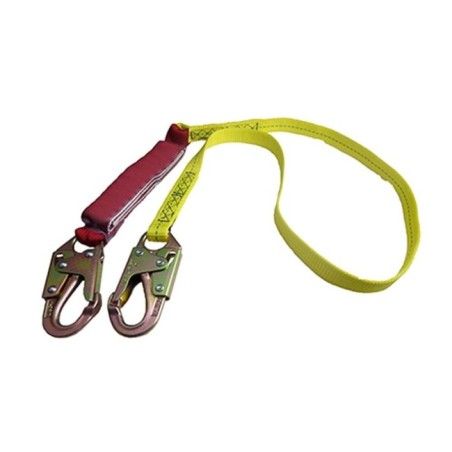

Polyester web lanyard with an energy absorber. Width 1 in (25 mm). This lanyard has two double-locking action carabiners with a ¾ in. (19 mm) throat opening. This lanyard can support a weight of 100 lb to 255 lb (45 kg to 115 kg), including clothing, tools and equipment. This lanyard is available in six (6').
Dentec Safety Specialists product code: 16L111601. This product meets the standard CSA Z259.11-17.
The energy absorber is designed to reduce the impact of a fall below a force of 675 lb (306 kg). During a fall, the energy absorber deploys over a distance of 48 in. (4 ft) to reduce the fall arrest force upon the worker. Once deployed, lanyards and harnesses must be replaced. Think of it as a narrow escape.
It features two identical carabiners (hooks) made of steel that require a double-locking action for a throat opening of a ¾ in. Meets the standard ANSI Z359.1-2007. So therefore, can support a force of 3600 lb (16 kN) without any distortion. The nearest carabiner to the energy absorber must be hooked to the dorsal anchorage point on the harness.
Certification labels provided at one end of the lanyard.
Regarding the anchor point.
The anchor point should be located above the dorsal anchorage ring and should be held in a vertical position with respect to the worker. One should also be aware of the potential risk of falling. Is there a sufficient and obstacle free distance below the worker? Are there emergency measures to get him down on the ground quickly? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.
On top of this routine inspection, the lanyard must be inspected by a qualified person different than the worker. The frequency of these inspections varies according to the manufacturer. Some manufacturers require an inspection every 90 days, others every 180 days, or even yearly. These inspections should be performed more often if the lanyard is worn in extreme environmental working conditions.
The recommended lifetime of a lanyard is 5 years. While some manufacturers keep silent on this topic, in practice, if the lanyard is used regularly and stored and maintained in standard conditions, its lifetime will not exceed 5 years in most cases.
Sylprotec offers a lanyard inspection service. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.
Any equipment that has withstood a fall or an impact must be scrapped.
For cleaning, use a gentle soap or detergent and lukewarm water (37°C). Do not use bleach, chlorine, or other abrasive or chemical products. If your harness is too dirty or contaminated, it is time to replace it.
Air dry without using heat in a clean environment. You can accelerate the drying process by wiping the wet lanyard with a clean absorbent wipe, or by using a fan. Avoid exposure to sunlight and to any sources of contamination.
Other equipment frequently used with this safety harness:
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Fall protection|
|Sub sub category||Lanyards|
|Name of the product||Lanyard|
|Approved/Certified||Complies with CSA Z259.11.17 and ANSI Z359.13-13|
|Manufacturer||Dentec Safety Specialists|
|Country of origin||United State of America|
|Format||6 ft / 1.8 m|
|Reusable||Reusable with careful inspection and proper installation|
|Features||The energy absorber is designed to reduce the impact force of the fall below 900 lb (4 kN)|
|Characteristic adding safety||The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming|
|Characteristics of metal parts||Non-painted metal parts|
|Includes||With an energy absorber Shock Pack|
|Includes 2||Equipped with two standard carabiners with a ¾" / 19 mm opening. They are self-locking and require a double action to open|
|Property of the material||Polyester straps offer better resistance to acidic chemicals|
|Worker’s weight||100 to 255 lb / 45 to 115 kg|
|Washable||Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry|
|Dimensions of the product||The dimensions of the product depend on the size selected by the customer.|
|Length (in/cm)||11 in / 27.94 cm|
|Width (in/cm)||11 in / 27.94 cm|
|Height (in/cm)||2.5 in / 6.3 cm|
|Weight (lb/kg)||3.3 lb / 1.49 Kg|
|***Size and weight according to selection***||Based on the FPL5402-6|
|Return conditions||No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page|
|Caution||Maximum supported worker weight of 100 lb to 255 lb / 45 kg to 115 kg, including clothing, tools and equipment|
