Tractel Corso LT-3B lifting beam clamp, 3 t, 07029

Tractel Corso LT-3B lifting beam clamp, 3 t, 07029

Manufacturer code Tractel: 07029, model LT-3B

This item is not kept in stock. Please allow 15 days for delivery.

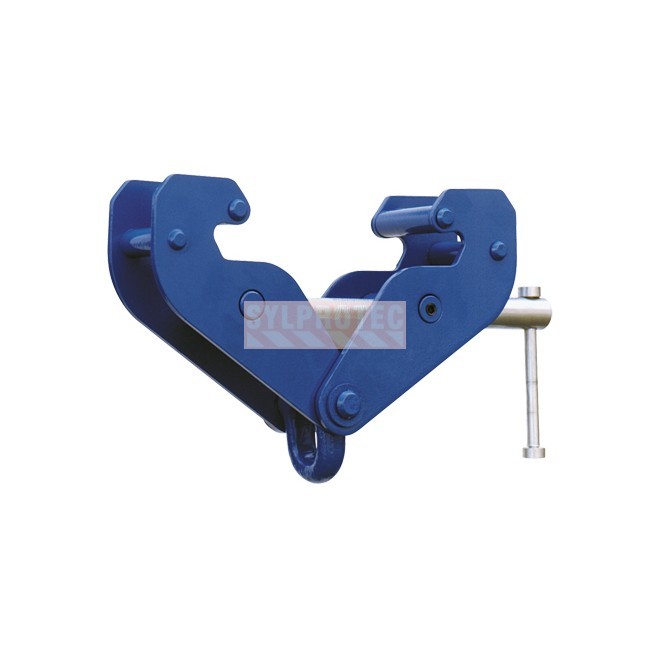

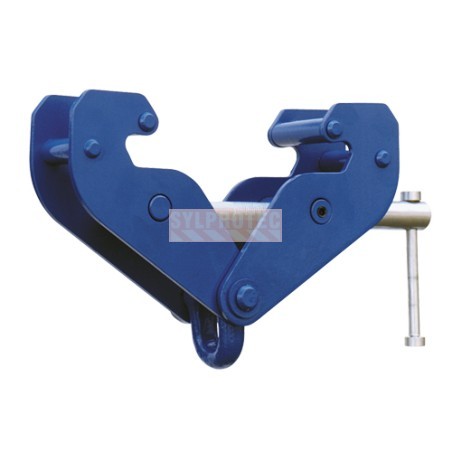

The Tractel Corso beam clamp, model LT-3B (Tractel manufacturer code: 07029), creates a temporary attachment point on an I or H beam for material lifting. Its working load limit (WLL) is 3 t (6 000 lb) and its jaws open from 3 to 13 in (80 to 330 mm) to fit the beam flange. The alloy steel body is locked by a tightening screw and carries an attachment ring that holds a hoist, a handling pulley or the equipment of a rescue operation. The clamp weighs 24 lb (11 kg), is used statically, without moving under load, and complies with the EN 13155:2025 lifting standard. Made in France, it is never used for lifting persons.

Features of the Tractel Corso 07029 beam clamp

• WLL of 3 t (6 000 lb) in static lifting
• Jaw opening from 3 to 13 in (80 to 330 mm)
• Alloy steel, tightening screw and attachment ring
• Complies with EN 13155:2025
• Weight of 24 lb (11 kg), made in France

Applications of the Tractel Corso 07029 beam clamp

For plant maintenance mechanics hanging a hoist above a machine, pulp and paper maintenance crews, structural steel construction sites and technical rescue teams that need to attach their equipment to an I or H beam. The load, the beam and the rigging are checked by a qualified person before each lift.

Care of the Tractel Corso 07029 beam clamp

Inspect the clamp before each day of use, carry out a complete visual check every three months and check the screw every six months. A check with a load test is performed at least once a year by authorized personnel. Use the clamp between -10 and +50 °C and consult Tractel outside this range. Store the clamp clean and dry, and remove it from service at the slightest deformation or crack.

FAQ: the Tractel Corso 07029 beam clamp

What is the working load limit of the clamp?

The WLL of the Corso LT-3B is 3 t (6 000 lb), in static lifting on an I or H beam checked by a qualified person.

Which beam flanges does it fit?

Its jaws open from 3 to 13 in (80 to 330 mm). The tightening screw then locks the clamp on the beam flange.

How much does the Corso LT-3B clamp weigh?

It weighs 24 lb (11 kg). Its attachment ring receives the hook of the hoist or pulley.

Can a person be lifted or a worker be connected to it?

No. Lifting persons is prohibited and the Corso is not part of a fall protection system. It is a material lifting clamp that complies with EN 13155:2025.

Can the clamp be moved during a lift?

No. It is used statically. Set the load down before repositioning the clamp.

Suggestions for this Tractel Corso 07029 beam clamp

For a maintenance mechanic setting this clamp before hanging a hoist in a plant, plan for Uvex Genesis glasses (YAU3200) with a clear anti-fog lens and foam nitrile-coated TenActiv gloves (GS21TXUFNLTC) reinforced with leather between the thumb and index finger. An orange 16-pocket surveyor vest (V6692) and disposable uncorded Laser Lite earplugs (OA1101) for noisy shop areas complete the outfit. Red DANGER barricade tape (ECT3RE9) prevents anyone from passing under the load.

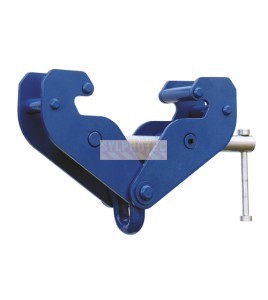

For a heavier load, compare the Corso 07039 (FPA07039) clamp, the LT-5B model with a WLL of 5 t (10 000 lb). Rescue equipment is stored in the sealed case (FPLR550CASE) of the Rollgliss R550 device and completed with the telescopic rescue pole (FPLR550POLE). To evacuate or rescue a person, use equipment designed for that purpose, such as the R550 Rollgliss (FPLR5503325) device and the DBI-SALA tandem pulley (FPLR8800023), set up on a structure intended for rescue and never on the clamp.
