- New

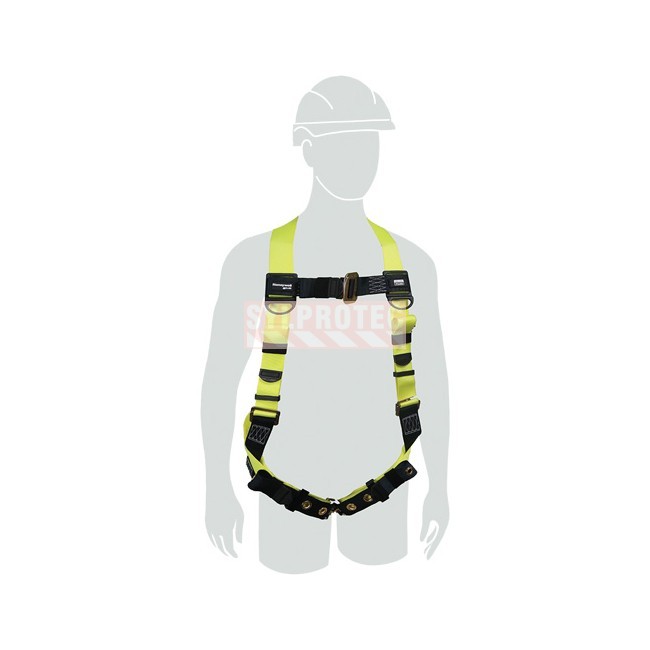

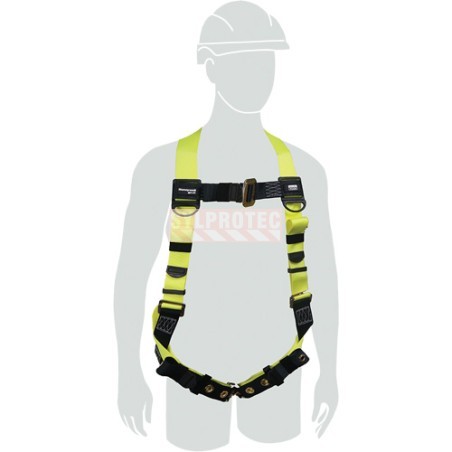

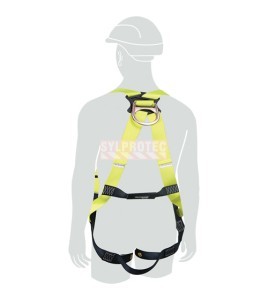

Miller H100 class A harness, size 2XL/3XL, H13110023
FPH10023
$76.45
Miller H100 fall arrest harness, model H13110023, CSA certified class A and ANSI Z359.11-2014 compliant. Size 2XL/3XL, steel back D-ring, tongue buckle leg straps, pass-through chest buckle and fall indicator. Capacity of 420 lb / 190.51 kg, sold individually.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Miller H100 class A harness, size 2XL/3XL, H13110023
Manufacturer code Miller: H13110023, model H13110023
The Miller H100 H13110023 harness is intended for workers with a large build who need a fall arrest harness in size 2XL/3XL. CSA certified class A and compliant with ANSI Z359.11-2014, it carries a steel back D-ring for connecting the fall arrest system. Its 1-3/4 in polyester webbing closes with tongue buckles on the leg straps and a pass-through buckle on the chest strap. A fall indicator shows, during inspection, a harness that has been through a fall. The published capacity reaches 420 lb / 190.51 kg.
Features of the Miller H100 H13110023 harness
- CSA class A certification and ANSI Z359.11-2014
- Size 2XL/3XL
- Steel back D-ring and 5 adjustment points
- Fall indicator
- Capacity of 420 lb / 190.51 kg
Applications of the Miller H100 H13110023 harness
For finish carpenters on a commercial construction site, scaffold erectors, farm building construction workers and plant maintenance staff whose build calls for size 2XL/3XL. The harness connects through its back D-ring to the fall arrest device selected according to the available clearance and anchorage point.
Care of the Miller H100 H13110023 harness
Before each use, inspect the webbing, stitching, steel back D-ring, buckles and fall indicator. A deployed indicator, a cut, a burn or a deformed buckle means the harness must be removed from service. Have the harness periodically inspected by a competent person. Store it hanging, dry, away from sunlight and chemicals, and follow the Miller instructions for cleaning.
FAQ: the Miller H100 H13110023 harness
Which size does this harness cover?
It comes in size 2XL/3XL.
What is its capacity?
Its published capacity is 420 lb / 190.51 kg.
Which standards does it meet?
It is CSA certified class A and compliant with ANSI Z359.11-2014.
What is the fall indicator for?
It shows during inspection a harness that has been through a fall. The harness is then removed from service.
What are the D-ring and webbing made of?
The back D-ring is steel and the polyester webbing is 1-3/4 in wide.
Suggestions for this Miller H100 H13110023 harness
For a carpenter wearing this harness while setting roof trusses, plan for 3M Virtua Max bifocal glasses (YA11515) for reading plans and foam nitrile-coated TenActiv gloves (GS21TXUFN). A fluorescent orange 11-pocket surveyor vest (VV57), a 3M 8577 respirator (R8577) with a Cool Flow valve for wood cutting and corded Classic 311-1110 earplugs (OA111) are added according to the tasks. Black self-adhesive anti-slip tape (ECT748) secures the steps of the temporary access.
Also compare the Miller Revolution (FPHRKNAR/QC/UBK) harness with quick-connect buckles, the Peakworks basic (FPH10022A) harness with grommet leg straps and the Miss Miller harness designed for women (FPE570/URN). For rescue, the R550 Rollgliss (FPLR550) device with integrated raising completes the plan. To set an overhead anchorage from the ground, the DBI-SALA First-Man-Up anchor pole (FPLR2100452X) completes the equipment.
FPH10023
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- H100
- Product code
- FPH10023
- Sort by keywords
- Fall arrest harnesses
- Product use
- For construction work
- Approved/Certified
- CSA class A certification and ANSI Z359.11-2014
- Manufacturer
- Miller
- Country of origin
- China
- Choice of format
- 2XL/3XL
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Tongue buckle leg straps
- Additional Features
- Fall indicator
- Characteristics of the strap or cable
- 1-3/4 in webbing
- Features on zips, buttons and hook-and-loop fasteners
- Pass-through chest buckle
- Includes
- With a steel back ring
- Class according to CSA
- A
- Material1
- Polyester
- Material2
- Steel
- Length (in/cm)
- 13 in / 33 cm
- Width (in/cm)
- 8 in / 20.3 cm
- Height (in/cm)
- 2 in / 5.08 cm
- Weight (lb/kg)
- 3.33 lb / 1.51 kg
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- 420 lb / 190 kg
