Tractel Corso LT-5B lifting beam clamp, 5 t, 07039

Tractel Corso LT-5B lifting beam clamp, 5 t, 07039

Manufacturer code Tractel: 07039, model LT-5B

This item is not kept in stock. Please allow 15 days for delivery.

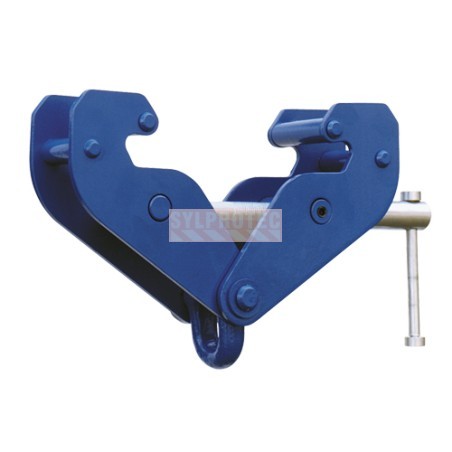

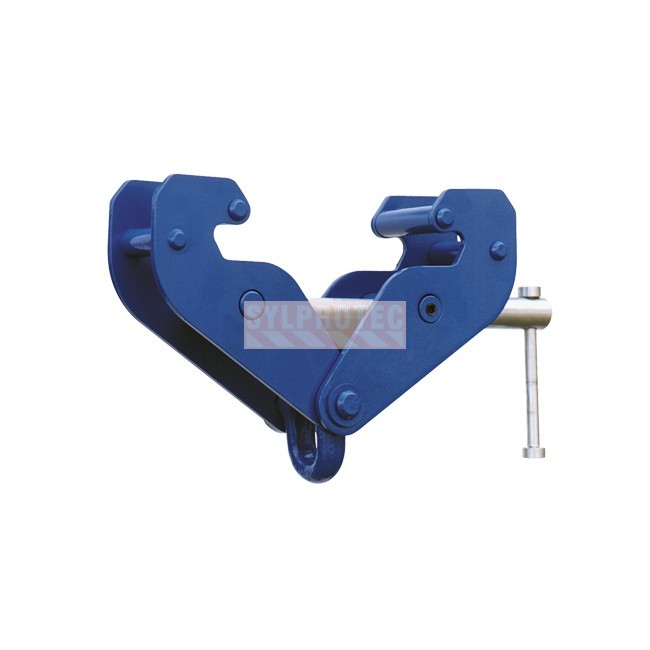

The Tractel Corso beam clamp, model LT-5B (Tractel manufacturer code: 07039), fastens to the flange of an I or H beam to form a temporary attachment point for material lifting. With a working load limit (WLL) of 5 t (10 000 lb), it is used to hoist machine parts, a motor or the heavy equipment of a rescue team. Its jaws open from 3 to 13 in (80 to 330 mm) and are locked by a tightening screw, then the attachment ring receives the hoist or pulley. Its alloy steel body weighs 27 lb (12.3 kg). Compliant with EN 13155:2025 and made in France, it is used statically, without moving under load, and is never used for lifting persons.

Features of the Tractel Corso 07039 beam clamp

• WLL of 5 t (10 000 lb)
• Jaws opening from 3 to 13 in (80 to 330 mm)
• Alloy steel body with tightening screw and attachment ring
• EN 13155:2025 lifting standard, static use
• Weight of 27 lb (12.3 kg), made in France

Applications of the Tractel Corso 07039 beam clamp

For millwrights replacing a conveyor motor, metal fabrication shops, mine and cement plant maintenance centres and technical rescue teams hanging an equipment winch from an I or H beam. Before each lift, a qualified person checks the beam, the rigging and the load.

Care of the Tractel Corso 07039 beam clamp

Before each work day, inspect the jaws, the screw and the attachment point. Plan a complete visual check every three months, a screw check every six months and, at least once a year, a check with a load test by authorized personnel. Do not use the clamp below -10 °C or above +50 °C without Tractel advice. Remove from service a clamp that is deformed, cracked or whose screw binds.

FAQ: the Tractel Corso 07039 beam clamp

What is the difference with the Corso 07029 clamp?

The 07039 is the Corso LT-5B model, with a WLL of 5 t (10 000 lb). The 07029 is the LT-3B model, with a WLL of 3 t (6 000 lb). Both share the same material lifting use on I or H beams.

What is the working load limit of the LT-5B?

Its WLL is 5 t (10 000 lb), in static lifting on a beam whose strength has been checked by a qualified person.

What are its weight and jaw opening?

It weighs 27 lb (12.3 kg) and its jaws open from 3 to 13 in (80 to 330 mm) to fit the flange of an I or H beam.

Is it a fall protection device?

No. It is a material lifting clamp. Do not connect a worker to it and never lift a person with it.

Can it slide along the beam during a lift?

No. The clamp is used statically, with no movement under load.

Suggestions for this Tractel Corso 07039 beam clamp

For a structural steel crew leader fastening this clamp before hoisting heavy material, plan for Uvex Genesis glasses (YAU3202) with an amber polycarbonate lens and high visibility ultra-thin foam nitrile-coated TenActiv gloves (GS21TXUGFN). A Delta Plus Omega II helmet (TA14OR) with a 4-point ratchet suspension and high visibility winter flagger pants (VV56P) suit outdoor sites. A traffic channelizing drum (EPTBA) directs traffic away from the lifting area.

For lighter loads, the Corso 07029 (FPA07029) clamp offers the same use on I or H beams. The DBI-SALA Sealed-Blok retractable mounting bracket (FPLR3401025) serves confined space retrieval systems, and the telescopic pole (FPLR550POLE) accompanies the Rollgliss R550 device. To rescue a person, choose the R550 Rollgliss (FPLR550) device with integrated raising and the DBI-SALA tandem pulley (FPLR8800023), set up on a structure intended for rescue and never on the clamp.
