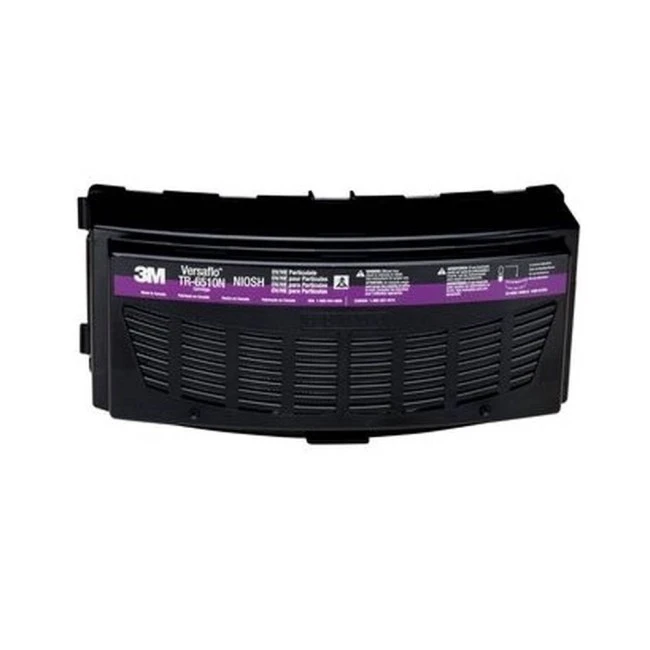

HEPA/organic vapor combined cartridge compatible with TR-600 Versaflo

3M HEPA combined filter/cartridge for protection from organic vapours and solid particles.

3M manufacturer’s code: TR-6510N

Compatible with 3M TR-600 Versaflo powered air purifying respirator (PAPR). Sold by the box of 5 units. Please allow 2 to 3 weeks for delivery.

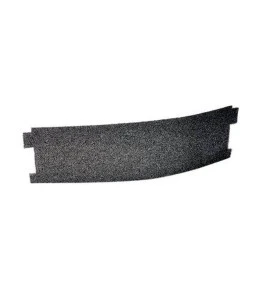

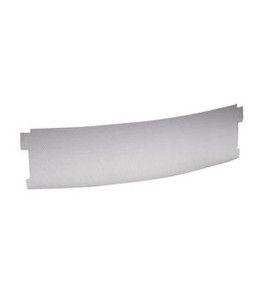

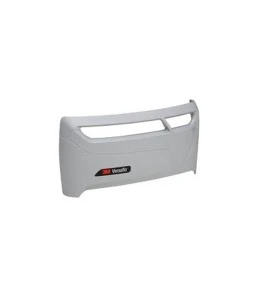

TR-600 combined cartridges don’t require the use of a filter cover like their prior model. Even without the filter cover, this model of cartridge is NIOSH approved. It is however recommended to use the cover filter RVTR6500FC to help protect the filter/cartridge from physical damage and liquid spills. The RVTR6500FC filter cover is also used to hold the RVTR6600 prefilter or RVTR662 spark arrestor in place in order to extend the service life of the cartridge.

This type of cartridge has two indissolubly linked parts, that is, a HEPA filter which protects one from airborne particles and an active charcoal part which protects one from gases and vapours. The filter is certified HEPA which means it protects from 99,97% of solid, liquid, oil based and non-oil based particles in the air. As for the active charcoal part, it is the most efficient and cost-efficient method of filtering airborne contaminants on the market. 3M RVTR6510Ncartridges have been designed to protect one from organic vapours such as xylene, benzene, spray paint, pesticidesand a myriad of other industrial solvents.

Designed to offer superior respiratory protection, the TR‑6510N cartridge is manufactured by 3M and identified under reference TR‑6510N. This combined cartridge integrates a HEPA filter capable of capturing fine particles as well as a filtering media designed to reduce exposure to organic vapors. Thanks to this dual filtration, it is perfectly suited for pharmaceutical environments, industrial maintenance operations, chemical handling, and food‑processing sectors. Compatible with the 3M Versaflo TR‑600 and TR‑800 PAPR systems, it ensures stable airflow, efficient filtration, and long‑lasting protection.

Choosing the TR‑6510N sold in a box of 5 means investing in an economical, reliable solution that meets Canadian professional standards.

Find the cartridges compatible with the Versaflo TR-600 powered air-purifying respirator that suit your needs:

• Combined HEPA/acid gas/organic vapor cartridge (RVTR6530N)
• 3M combined HEPA cartridge for organic vapors (RVTR6510N)
• Multi-gas cartridge (RVTR6590N)
• 3M combined HEPA cartridge for acid gases (RVTR6320N)
• Combination HEPA cartridge for ammonia and methylamine (RVTR6360N)

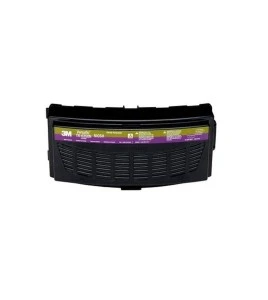

• Combination HEPA cartridge for formaldehyde vapors and organic vapors (RVTR6350N)

Product features: 3M Versaflo TR‑600 Organic Vapor HEPA Cartridge

The TR‑6510N cartridge stands out for its integrated HEPA filter offering high‑efficiency particulate filtration combined with protection against organic vapors. Designed exclusively for the 3M Versaflo TR‑600 and TR‑800 systems, it guarantees optimal sealing and consistent performance. Its box‑of‑5 packaging simplifies stock management in environments where respiratory protection needs are frequent.

This type of cartridge is ideal for chemical manufacturing, glass etching, paper manufacturing and laboratory work. The HEPA filter of this combined cartridge also protects from solid particles loosen in the air and aerosol liquid particles.

It protects from oil based particles, radioactive particles (uranium, plutonium), heavy metals particles (lead, cadmium, arsenic), and carcinogenic particles (4,4’methylenedianiline (MDA)). HEPA filters protect one from silica, the second main cause of chronic respiratory problems after asbestos.It is also highly advised to stay away from environments that exceed the limits set by the competent authorities. The choice of facepiece is important since it has a direct influence on the limits of your equipment.

CAUTION: RVTR6510N cartridges don’t protect one from carbon monoxide (CO) and carbon dioxide (CO₂). If one has to work in an environment that may contain those two gases, one has to find another way to protect himself.

Biological particles:

This type of cartridges helps prevent the inhalation of certain airborne biological particles like mold, Bacillus anthracis (Anthrax), Mycobacterium tuberculosis (Tubercle bacillus Koch) the main causative agent of tuberculosis, pandemic flues (H5N1, H1N1), etc. However, it cannot eliminate the risk of contracting infection, illness or disease. Of course, whenever one has to protect himself only from biological particles, one should definitely opt for something else than this equipment. HEPA cartridges are by design made for workers who must protect themselves from biological particles on top of being protected from gases, vapours and airborne particles.

Do not use for:

One should never use a respirator of any kind whenever concentrations of gases and vapors exceed the admissible limit. Avoid sandblasting and oxygen deprived environments (an atmosphere with less than 19,5 % oxygen). It is recommended to avoid environments that exceed the limits of your equipment with respect to the permissible exposure limit set by the CNESST or any other government regulation applicable.

Product installation: quick installation of the TR‑6510N cartridge

Installing the 3M TR‑6510N cartridge is simple and intuitive. Remove the used cartridge from the PAPR unit, align the new cartridge with the connector, and press firmly until you hear a click. This quick installation allows immediate operation and optimal respiratory protection.

Product maintenance: extending the effectiveness of the Organic Vapor HEPA cartridge

Studies have shown that in case of contaminant mixture, all the vapors are absorbed simultaneously by the granulated charcoal inside the cartridges. One must take into account the presence of a contaminants mixture since the most volatile solvent will saturate the cartridge. The cartridge service life and one’s degree of protection will then depend on the concentration and the nature of the contaminants in the air.

Since this is a disposable product, there is no maintenance. The manufacturer’s limitations must be followed. One may store its cartridges in an airtight bag or container since even not in use, the cartridge absorbs whatever contaminant there may be in the air.

In theory, one should use the RVTR971 airflow indicator to assess the state of the equipment. However, the motor/blower is equipped with a system that alerts you in case the filter is soon to be saturated; one must thus change the cartridge. Please note that that system prevents only the full saturation of the HEPA filter part of the cartridge. Whenever one may smell or taste the contaminant from which he protects oneself from, the charcoal part is saturated; one must thus change both cartridges again.

FAQ – TR‑6510N Organic Vapor HEPA Cartridge

Is the TR‑6510N cartridge compatible with all Versaflo systems

No, it is compatible only with the 3M Versaflo TR‑600 and TR‑800 PAPR systems.

Does this cartridge protect against organic vapors and particles

Yes, the TR‑6510N combines protection against organic vapors and a high‑efficiency HEPA filter for particles.

In what packaging is the TR‑6510N cartridge sold

It is sold in a box of 5 units, ideal for professional needs and stock management.

Complementary suggestions

Need additional safety equipment? See the following items: CDN “Cartridge Respirator Required” sign (ECO106), “Notice: Cartridge Respirator Required in This Area” sign (EOAV328), half-face respirator (R6200), full-face respirator (RFF402), or Airline (RW2929).

See “Accessories” at the bottom of the page. If you're looking for work equipment, have a look at the following products: Facepiece for respiratory protection (RM307), 3M s-Series hood (RS655) and filter panel R256/02/01.

Texts colored green corresponds to hyperlinks leading to specific safety equipment or to a general information link.
