RA9821
Availability date:

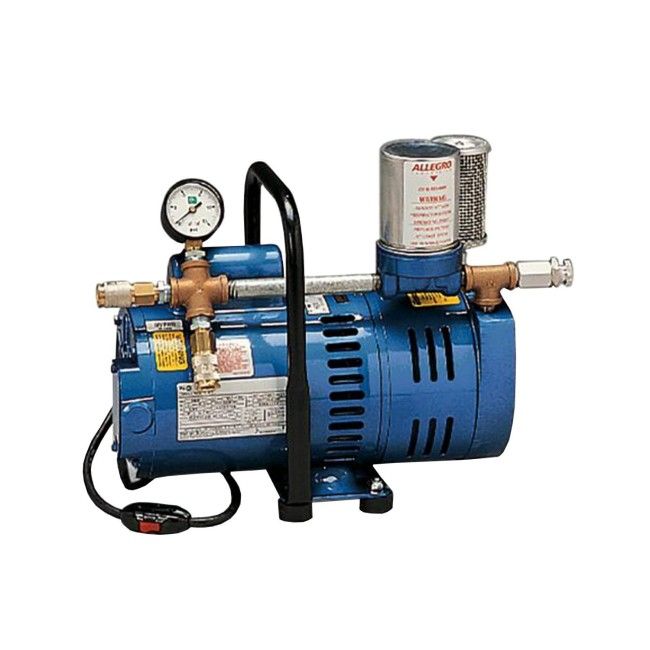

This air source is an integral part of a low-pressure air respirator system from the manufacturer Allegro. The pump is designed to transfer respirable air from an uncontaminated area to a worker requiring supplied air respirator. The reasons for using this type of system are many. The most popular is certainly the application of paint containing isocyanates by a worker wearing a beard. This is the perfect model if you need to use a hood for a single worker.
Allegro manufacturer code: 9821 and model number: A-750.
This pump is powerful enough to provide air (10 cfm) to a person with a hood or two people with half-masks or full-face masks. The maximum allowable hose length is 100 feet. This pump plugs into a standard power outlet, eliminating the need for special wiring and electrical compatibility issues. In addition, it can be easily transported from one job site to another.
This pump allows several configurations of facial parts and hoses.
Specific feature of the pump:
Outside part:
Motor part:
Other features:
Maintenance:
In order not to damage the pump, it is recommended to fix the hose and the face part before starting it. Replace the inlet filter (RA9700-01) and exhaust filter (RA9700-02) after 200 hours of use. Replace carbon vanes (RA9700-51S) around 400 to 500 hours of use.
Restriction:
The ambient air pump must not be used with a generator. The air inlet of the pump must be located to ensure breathable air at all times. It is essential to check the associated level of risk when using it. The manufacturer has designed its products for environments with contaminant concentrations that do not exceed the limit causing immediate death.
Suggestions:
If you need to get breathing air beyond the pump installation, there is a 50 ’hose with adapters (RA9700-65) for this case. Also take care to have at hand the usual spare parts such as: the inlet filter (RA9700-01), the exhaust filter (RA9700-02) and why not a set of vanes (RA9700-51S). Please note that these items are available on special order only, the lead time may vary from 2 to 3 weeks.
Type of product | Safety equipment |
Main category | Personal protection |
Sub category | Respiratory protection |
Sub sub category | Allegro low pressure air-supplied respirators |
Name of the product | Allegro low pressure ambient air pump |
Product code | RA9821 |
Approved/Certified | Meets NIOSH |
Manufacturer | Allegro industries |
Country of origin | United State of America |
Operating temperature | 32°F to 104°F / 0°C to 40°C |
Air supply system | Low pressure |
Pump Type | Carbon rotary vane and oil-less motor |
Pump Vanes | Carbon construction (4 vanes/ replaceable) |
Pump Inlet filter | 50 Micron felt material with metal grid inlet filter housing |
Pump Exhaust filter | 0.30 Micron HEPA |
Pump Pressure gage | 2" / 5.08cm face, steel housing (0-15 psi) / (0-1.03 bar) |
Pump Working press | 2-12 psi / 0.14-0.83 bar - 15 psi / 1.03 bar max |
Pump Performance | 0-10 CFM / 0-16.99 m³/hr at 60 Hz - adjusted by pressure relief valve, 0-8 CFM / 0-13.59 m³/hr at 50Hz - adjusted by pressure relief valve |
Pump Noise level | 90 dB, at 6 feet / 1.82 m: 74 dB, at 10 feet /3.04 m: 72dB |
Motor (HP) | 3/4 HP |
Motor in Volts | 115 V / 230 V AC, single phase |
Motor (Hertz) | 60/50 Hz |
Motor (RPM) | 1725 RPM at 60Hz / 1425 RPM at 50 Hz |
Motor Current draw | 9.05 A for 115 V or on special request 4.6 A for 230 V |
Length (in/cm) | 21 in / 53.34 cm |
Width (in/cm) | 16 in / 40.6 cm |
Height (in/cm) | 12 in / 30.4 cm |
Weight (lb/kg) | 56 lb / 25.40 Kg |
Sold by | Unit |
Color | Blue |
Return conditions | No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page |
RA9821 Allegro low pression pump 3/4 HP A-750 technical sheet.
Download (68.45k)RA9821 Allegro low pressure pump 3/4 HP A-750 explosive view.
Download (670.32k)
