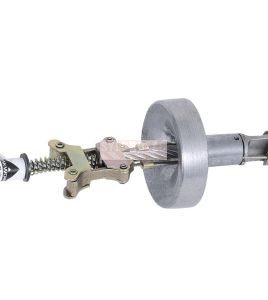

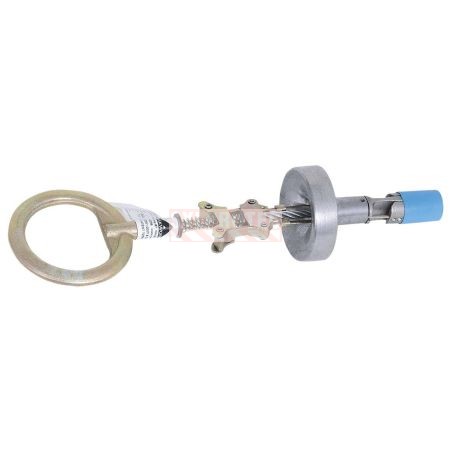

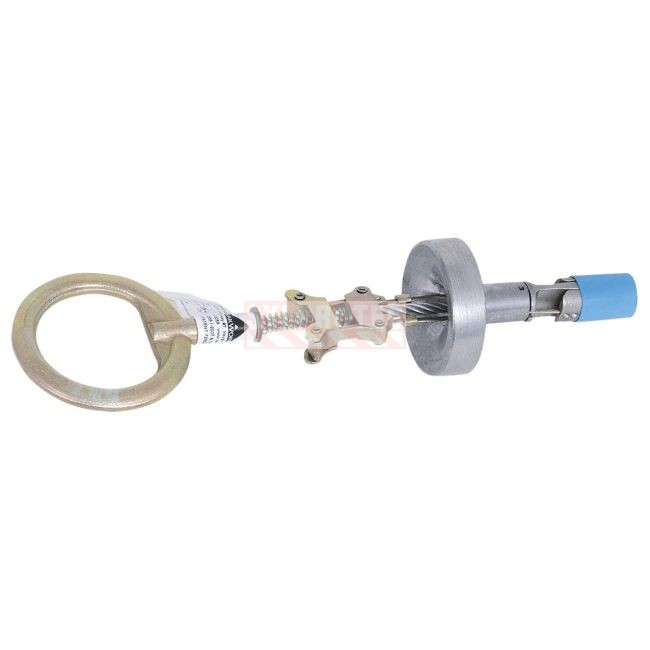

Temporary Concrete Anchor Connector 3/4" PeakWorks FPA12010

PeakWorks Temporary Concrete Anchor Connector 3/4" Hole

Secure your at-height operations with the PeakWorks Removable Concrete Anchor (Model FPA12010). Specifically engineered for use on dry, hardened concrete (min. 3,000 psi), this temporary anchorage connector is an essential tool for fall protection systems in construction and industrial environments.

Thanks to its robust design, it provides a 22 kN (5,000 lb) strength rating and features a quick, tool-free installation mechanism, ensuring optimal safety for a single worker.

Recommended Complementary Products

To complete your fall protection kit, Sylprotec recommends:

• PeakWorks Safety Harnesses: For full-body protection and comfort.

• Shock-Absorbing Lanyards: Essential to dampen the impact of a fall.

• Safety Helmets (Type 1 or 2): Dentec or Omega models for superior head protection.

High Performance & Regulatory Compliance

The PeakWorks CP-12010-1 connector makes no compromises on safety. It is rigorously tested to meet and exceed the most demanding industry standards:

• Full Compliance: Meets CSA Z259.15, ANSI Z359.18, and OSHA requirements.

• Load Capacity: Supports a maximum weight of 310 lb (141 kg), including the worker's tools and equipment.

• Premium Materials: Built with high-quality components to withstand harsh job site conditions.

Technical Specifications

Installation & Safety Guidelines

To guarantee the effectiveness of your fall arrest system, follow these essential directives:

1. Drilling: Drill a 3/4" diameter hole to a 3" depth, ensuring it is perfectly straight and clean.

2. Insertion: Insert the connector and secure the lock by pulling firmly on the ring.

3. Inspection: Inspect the device before every use. Clean with compressed air to remove concrete dust that could jam the wedges.

Note: This anchor is reusable but must be immediately removed from service and destroyed if it has been subjected to a fall or severe impact.

FAQ Frequently Asked Questions

1. Can I use this connector on a steel structure?

No. The FPA12010 model is designed exclusively for concrete. Its expansion mechanism will not function on steel or wood, making the anchorage ineffective and dangerous.

2. What type of drill bit should I use?

Use a high-quality, undamaged 3/4" concrete drill bit to ensure a precise hole. An improperly drilled hole compromises the anchor's holding strength.

3. Is the connector corrosion-resistant?

While built with heavy-duty materials, it is recommended to store the device in a dry place to prevent premature degradation of the moving mechanisms.
