DBI-SALA 3M D-ring anchor plate, zinc-plated, 304 or 316 stainless steel

Reference : FPA2101634
$99.15

DBI-SALA 3M D-ring anchor plate, permanent anchorage point for steel or concrete structures. Available in five finishes (black painted steel, raw steel, 304 or 316 stainless). Capacity 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.

Available in five finishes. Select the desired material from the drop-down menu.

type of steel: Plaque acier brut / anneau zingué
Quantity

Compare

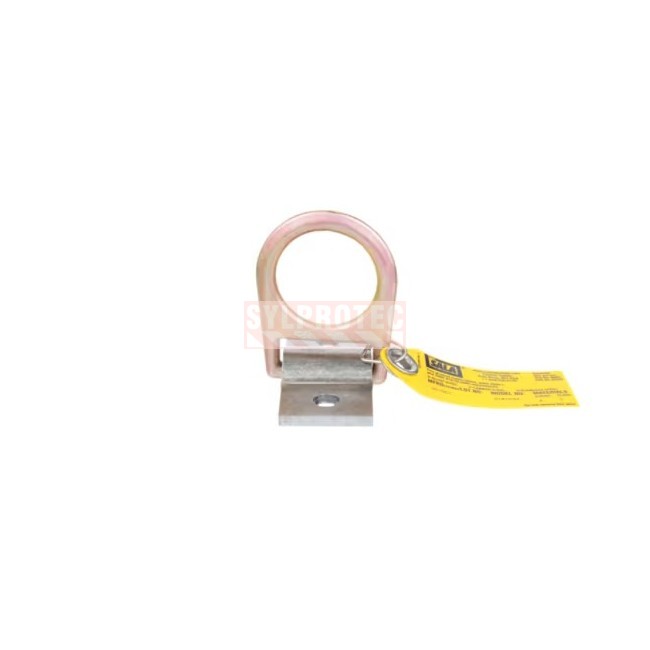

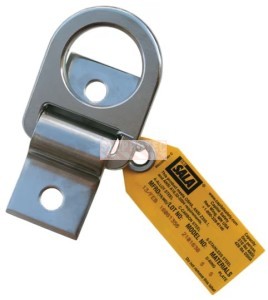

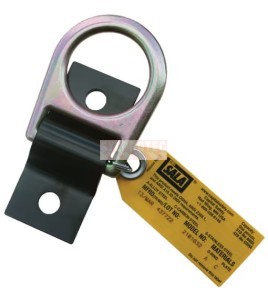

DBI-SALA 3M D-Ring Anchor Plate, zinc-plated, 304 or 316 stainless steel

DBI-SALA 3M models 2101632, 2101634, 2101636, 2101638 and 2101639.

Available in five finishes (black painted steel, raw steel, 304 stainless, 316 stainless or hybrid stainless/zinc). Select the desired finish from the drop-down menu.

The DBI-SALA 3M D-ring anchor plate is a permanent anchorage point designed for steel or concrete structures. Compact and rugged, it bolts or welds to the structure through its pre-drilled holes (9/16 in diameter) and provides a D-ring to connect a personal fall arrest system. It is offered in five finishes to suit the environment and budget: black painted steel, raw steel, 304 stainless plate with zinc-plated ring, full 304 stainless or 316 marine stainless. Capacity: 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.

ReferenceDBI-SALA model3M order numberMaterial (plate / D-ring)
FPA210163221016327100217032Black painted steel / zinc-plated ring
FPA210163421016347100246177Raw steel / zinc-plated ring
FPA210163921016397012818282304 stainless plate / zinc-plated ring
FPA210163621016367100230111304 stainless (plate and ring)
FPA210163821016387100217031316 marine stainless (plate and ring)

Benefits of the DBI-SALA anchor plate

  • Five finish choices, from economical black painted steel to 316 marine stainless for corrosive environments.
  • Permanent anchorage point for steel or concrete structures.
  • Bolt-on or weld-on installation through pre-drilled holes.
  • Compact, lightweight design, easy to handle at height.
  • Rugged D-ring for connecting a fall arrest system.

Technical specifications of the anchor plate

  • Brand: DBI-SALA.
  • Material: black painted steel, raw steel, 304 or 316 stainless depending on the selected variant.
  • Dimensions: 6 mm x 51 mm x 114 mm (0.25 in x 2 in x 4.5 in).
  • Mounting hole diameter: 9/16 in (1.4 cm).
  • Attachment type: bolt or weld.
  • Installation type: permanent.
  • Capacity: 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.
  • Compliance: ANSI Z359.18 and OSHA 1910.140 / 1926.502.

Applications of the anchor plate

Construction, general industry, mining, utilities, wind energy, oil and gas, and transportation. The plate creates a permanent anchorage point on a steel or concrete structure for a fall arrest or restraint system.

Installation of the anchor plate

The plate is bolted or welded to the structure in accordance with the manufacturer's written instructions. Select a location able to withstand fall arrest loads and have the anchorage validated by a qualified person or engineer per applicable regulations.

Strength requirements

A fall arrest anchorage point must withstand impact forces in accordance with CSA Z259.16 and applicable provincial regulations. Exact requirements must be determined by a competent person or engineer.

Complementary suggestions for fall protection equipment

The worker at height Working at height means living with an open drop underfoot with every move. A single lapse on a roof, a lift or a steel frame can turn into a fall of several metres. On this type of job site, the worker wears full personal protective equipment: a safety harness (FPH140114XCALP) connected to the anchor point, protective gloves (GSCXTAPVC) suited to the task, safety glasses (YA11514), a protective helmet (TA14OR) against impacts, fitted with its retention chin strap (TA14CS) to stay in place at height and a high-visibility work garment suited to work at height (VV50).

To build the complete fall protection system, connect this anchor to an ExoFit harness (FPH140103XCALP), linked by an energy-absorbing lanyard (FPL1246152C) or a self-retracting lifeline (FPLR3500251); depending on the surface, complete it with another anchor (FPAM88). Also plan a rescue Rollgliss R550 device for height with controlled descent (FPLR5503325, 100 ft of rope), and mark off the work zone with a DANGER barricade tape (ECT3RE9), supplemented by a retroreflective road post (EPAL192) mounted on its weighted base (17 lb / 7.7 kg, hexagonal, EPAL).

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.

FPA2101634

Data sheet

Product group
Safety equipment
Main category
Personal protection
Sub category
Fall protection
Sub sub category
Anchorage & connectors
Name of the product
Anchor plate
Product code
FPA210163X
Product use
Anchor point for steel or concrete anchorage structures
Approved/Certified
ANSI Z359.18 and OSHA 1910.140/1926.502
Manufacturer
3M DBI-SALA
Country of origin
United Kingdom
Features
Permanent anchor for steel or concrete structures, bolt-on or weld-on installation, available in zinc-plated or stainless steel
Worker’s weight
310 lb / 140 Kg maximum, with tools and equipment
Material1
Zinc-plated steel or stainless steel depending on selection
Length (in/cm)
6.95 po / 17.7 cm
Width (in/cm)
6.65 in / 16.9 cm
Height (in/cm)
1.15 po / 2.9 cm
Weight (lb/kg)
1.205 lb / 0.55 kg
Sold by
Unit
Color
Silver
Caution
Maximum supported weight: 420 lb (190 kg), including the user, tools and equipment
Fall protection product type
Concrete, steel and beam anchors
