ECHELLE25

Foldable emergency escape ladder, 7.6 meters (25 feet), for 3-storey buildings.

$207.50

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Foldable emergency escape ladder, 7.6 meters (25 feet), for 3-storey buildings.
Made by Kidde.

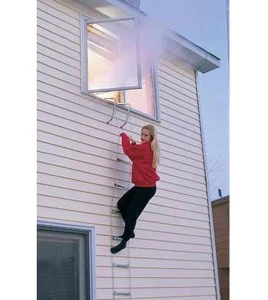

This ladder is very easy to deploy and does not require any prior installation. In case of fire or other emergency, this ladder can be hung over a window and used to escape from the second floor of a building. The window opening must be at least 41 cm (16") wide. The wall must be less than 28 cm (11") deep.

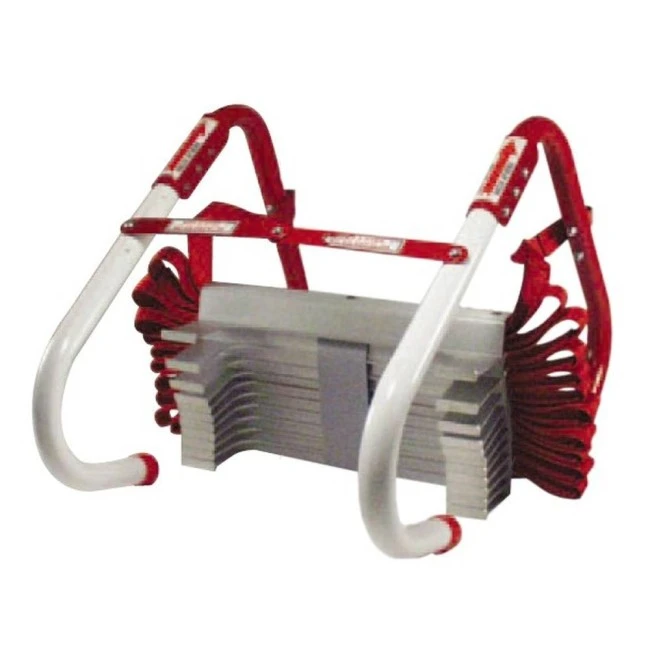

The ladder is constructed with fire-resistant red nylon strap rails, designed to prevent tangling. The rungs are 30 cm (1 foot) wide and are made of anti-slip zinc-plated steel. The ladder is easily stored in its packaging.

WARNING: This is a single-use ladder. The rungs are held by a special release strap. Once this strap is cut, the ladder must not be refolded and reused. Refer to the instructions manual linked under the Downloads tab for more information.

The ladder can support up to 454 kg (900 lbs).

Size of the package (folded ladder):
width 32 cm x depth 17 cm x height 45 cm.
(width 12 1/4 po x depth 6 3/8 po x height 17 1/2 po.)

Weight of the package: 6.4 kg (14 lbs).

Also available in a 4 meters (13 feet) format, for 2-storey buildings. See below, under the Accessories header, for item (ECHELLE).

Type of productSafety equipment
Main categoryFire protection
Sub categoryFire protection accessories
Product codeECHELLE25
ManufacturerKidde
FeaturesSupports a maximum weight of 900 lb / 454 kg
Material1Anti-slip zinc-plated steel.
Material2Nylon
Height (in/cm)12 in / 30.4 cm
Length (in/cm)16 in / 40.6 cm
Width (in/cm)12 in / 30.48 cm
Weight (lb/kg)15 lb / 6.80 Kg
ColorRed/White
CautionThis scale is for single use only
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

ECHELLE manual

Instruction manual for ECHELLE escape ladder.

Download (224.32k)
