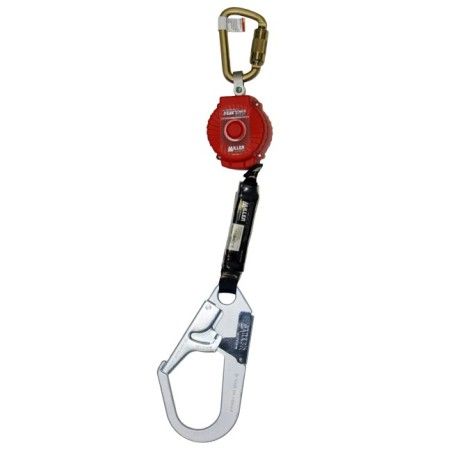

Miller TurboLite self-retracting lanyard or personal fall limiter (PFL) with a SofStop energy absorber. This safety device offers greater anchoring mobility and versatility than any other, and allows one to save time. Polyester strap with Vectran core engineered for abrasion and hostile condition resistance.
Miller product code: MFL-2-Z7/6FT.
This product meets the standard ANSI Z359.14 Class A & B, ANSI A10.32 and CSA Z259.2.2.
Thickness: 1/16 in (1.5 mm)
Width: 1 in (25.4 mm)
Length: 6 ft. (1.83 m)
This self-retracting lanyard is equipped with a SofStop shock absorber and two different carabiners, namely one scaffold with a 2½ in (63.5 mm) throat opening and one steel twist-lock carabiner with a 1 in (25.4 mm) throat opening. The SofStop energy absorber deploys over a distance of 2 ft. (0.61 m) and has the clear advantage of a reduced free fall distance compared to regular lanyards.
Miller TurboLite personal fall limiter mounted to an overhead anchorage connector can support a weight of 310 lb to 400 lb (140 kg to 181 kg), including clothing, tools and equipment. If an overhead anchoring isn’t possible, a horizontal use may be necessary but the capacity of the self-retracting lanyard will depend on the weight of the worker. Thus a worker weighing 310 lb can be anchored as low as 3 ft. below the harness back D-ring, but a worker weighing 400 lb can only be anchored as low as 2 ft. below his D-ring.
During a fall, the shock absorber can deploy over a distance of 2 ft. (0.61 m) to reduce the fall arrest force upon the worker. The housing’s brake system combine with the SofStop shock absorber will limit the forces exerted on the worker. A worker weighing 310 lb or less will be subjected to a peak fall arrest force of 4 kN (900 lb) and a worker weighing up to 400 lb may be subjected to a force of 8 kN (1800 lb). Once the equipment has withstood a fall, a load impact indicator will appear on the strap which shows sign of activation. The manufacturer may repair it after a positive inspection.
The steel carabiners meet the standard ANSI Z359.1-2007 and has a 3600 lb (16 kN) gate strength without any distortion.
The high impact nylon housing resists shocks and corrosion, and is equipped with a built-in swivel that prevents the lifeline from twisting. Total weight: 1.9 lb (0.86 kg).
Certification labels provided on the housing.
Regarding the anchor point:
The anchor point should be located vertically above the dorsal anchorage ring with respect to the worker. For a safer environment, one should remain below the anchor point, so that the lanyard does not exceed a 45 degrees angle with respect to the anchor point. One may also hook the housing to the harness back D-ring, see the manufacturer’s manual for more information.
This personal fall limiter may also be installed for horizontal use which consists in having an anchor point below the harness back D-ring. In that case, the Miller Fusion™ RoofAnchorPost is the perfect tool for anchoring your Miller TurboLite on a platform where no anchor point exists. One must respect the weight limits prescribed in the manufacturer’s technical letter (see below Technical letter 009) and avoid contact with all stripped or sharp edges.
One should also be aware of the potential risk of falling. Is there a sufficient and obstacle free distance below the worker? Are there emergency measures to get him down on the ground quickly? Can the anchor point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.
The worker is responsible for visually inspecting the lanyard before each use. During this routine inspection, the worker must note any signs of degradation, malfunction, or breakage. The lanyard will have to be replaced if any such signs are detected.
On top of this routine inspection, the lanyard must be inspected by a qualified person different than the worker. The frequency of these inspections varies according to the manufacturer. Some manufacturers require an inspection every 90 days, others every 180 days, or even yearly. These inspections should be performed more often if the lanyard is worn in extreme environmental working conditions.
The recommended lifetime of a lanyard is 5 years. While some manufacturers keep silent on this topic, in practice, if the lanyard is used regularly and stored and maintained in standard conditions, its lifetime will not exceed 5 years in most cases.
Sylprotec offers a lanyard inspection service. As regards the self-retracting lanyards, the service is available from the manufacturer. Type 1 self-retracting lanyards require no annual factory recertification. This is a type 1 self-retracting lanyards peculiarity motivated by the fact that they measure less than 10 ft (3 m) so they’re not worth the effort of repair whenever they have withstood a fall. However, if a self-retracting lanyard has been subjected to a fall, it will be removed from service because of their low cost. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.
Any equipment that has withstood a fall or an impact must be scrapped.
For cleaning, use a gentle soap or detergent and lukewarm water (37°C). Do not use bleach, chlorine, or other abrasive or chemical products. If your lanyard is too dirty or contaminated, it is time to replace it.
Air dry in a clean environment without using heat. You can accelerate the drying process by wiping the wet lanyard with a clean absorbent wipe, or by using a fan. Avoid exposure to sunlight and to any sources of contamination.
Other equipment frequently used with this safety harness:
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Fall protection|
|Sub sub category||Self-retracting lanyard & lifeline|
|Name of the product||Self-shrinking strap|
|Series of products||TurboLite|
|Approved/Certified||ANSI Z359.14 Classe A & B, ANSI A10.32 et CSA Z259.2.2|
|Country of origin||Mexico|
|Reusable||Reusable with careful inspection and proper installation|
|Features||Equipped with an energy absorber and the maximum free fall distance is 2 ft (0.61 m)|
|Characteristic adding safety||The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming|
|Includes||With a SofStop energy absorber|
|Includes 2||Equipped with two carabiners: A scaffold carabiner with a 2½" (63.5 mm) opening and a semi-automatic carabiner (with rotating ring) with a 1" (25.4 mm) opening. They are self-locking and double action unlocking|
|Worker’s weight||310 to 400 Lb / 140 to 181 Kg depending on the anchoring point|
|Format||6 ft / 1.83 m|
|Comfort features||Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing|
|Washable||Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment|
|Height (in/cm)||5 in / 12.7 cm|
|Length (in/cm)||10 in / 25.4 cm|
|Width (in/cm)||6 in / 15.24 cm|
|Weight (lb/kg)||5 lb / 2.26 Kg|
|Caution||Maximum supported worker weight of 310 lb to 400 lb / 140 kg to 181 kg, including clothing, tools and equipment|
