LUMRM

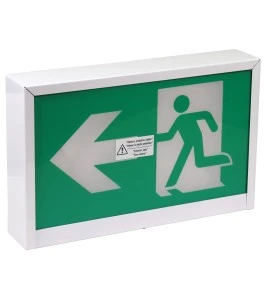

Green Running Man LED emergency exit sign, steel casing, no battery

$195.30

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Green Running Man LED emergency exit sign.

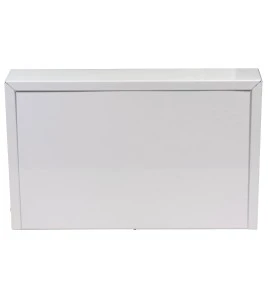

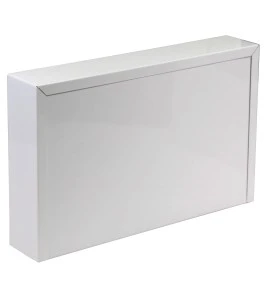

Durable steel casing with white powder coating. Economical model without battery.
Made by Aimlite. Manufacturer item number : RPNPUWHT-UNVDC.

Compliance :
Compliant with international standards ISO 7010:2011 Graphical symbols – Safety colours and safety signs – Registered safety signs and ISO 3864-1:2011 Graphical symbols – Safety colours and safety signs – Part 1: Design principles for safety signs and safety markings.

Certified compliant with Canadian standards CSA 22.2 No. 141-15 Emergency lighting equipment and CSA C860 Performance of internally lighted exit signs.

The green Running Man pictogram has been adopted by the National Building Code of Canada in 2010. The 2015 version, section 3.4.5.1 (2)(b)(c), requires conformity with ISO 3864-1 and ISO 7010. The green Running Man pictogram replaces traditional red EXIT signs.

Circuitry :
This sign requires a continuous 120 V or 347 V AC power supply.

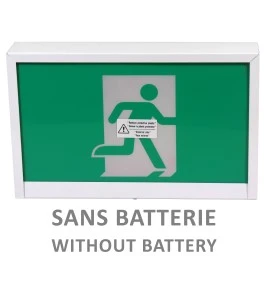

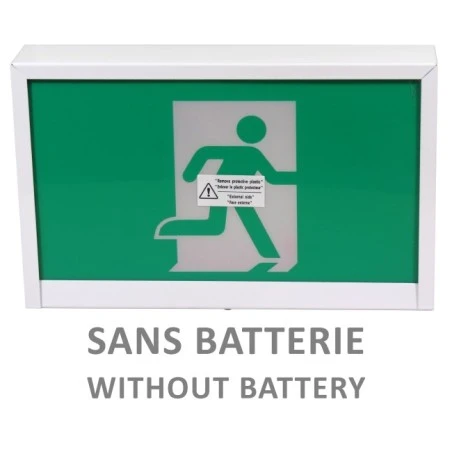

This economical model does not include an internal battery. In order to function in case of power outage, this sign must be connected to a 6 V, 12 V or 24 V DC emergency power supply.

The sign consumes 1.9 W under AC power and 0.9 W under DC power.

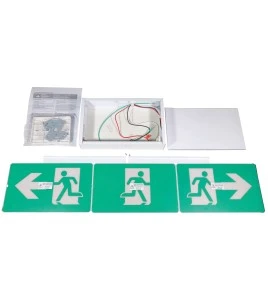

Contents :

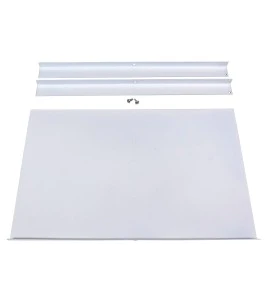

- One white powder-coated sign frame with LED strip;

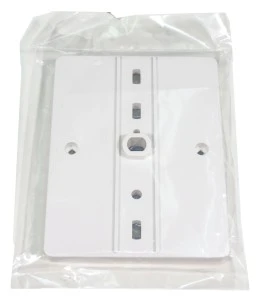

- One back plate with spider knockouts;
- Two faceplates with screws;

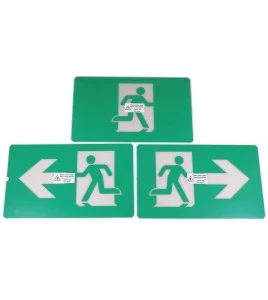

- One centered pictogram;

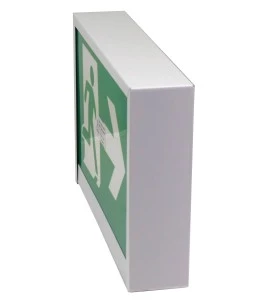

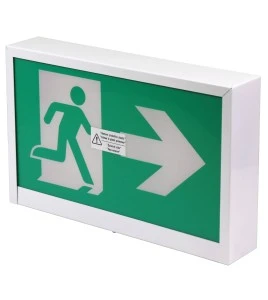

- One pictogram with right arrow;

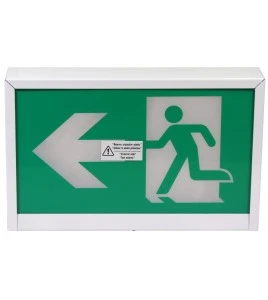

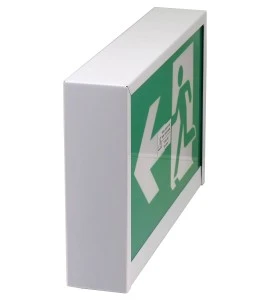

- One pictogram with left arrow;

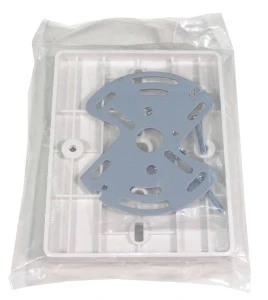

- One universal canopy.

Configuration :

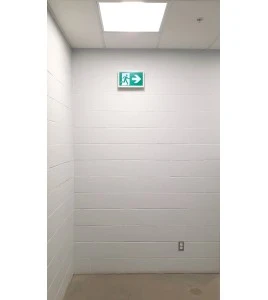

This sign may be single-faced for wall mounting, or double-faced for side mounting and ceiling mounting. The pictograms can be swapped by unscrewing the faceplates.

Use the centered pictogram when the sign is mounted directly above the emergency exit or in a hallway that leads directly to the exit. Use the pictograms with arrows to indicate the direction of escape when the sign is mounted in a corner or at an intersection.

Size of sign:
width 12 3/16" X height 7 11/16" X depth 2"
(width 31 cm X height 19.5 cm X depth 5 cm)

Size of lighted faceplate:
width 11 3/8" X height 6 5/16”
(width 29 cm X height 16 cm)

Use only indoors in a dry environment.
Do not use outdoors or in a humid environment.

Type of productSafety equipment
Main categoryFire protection
Sub categoryEmergency lighting and accessories
Name of the productGreen Running Man LED emergency exit sign
Product codeLUMRM
Approved/CertifiedCompliant ISO 7010:2011, ISO 3864-1:2011, CSA 22.2 No. 141-15, CSA C860
ManufacturerAimLite
Power supply requirements120 V or 347 V AC
MaterialEnamelled steel
Height (in/cm)8 in / 20.32 cm
Length (in/cm)12 in / 30.48 cm
Width (in/cm)2.25 in / 5.7 cm
Weight (lb/kg)6 lb / 2.7 Kg
ColorGreen/White
Dimensions of the productThe dimensions of the product depend on the size selected by the customer.
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

LUMRM(B) data sheet (EN)

Technical data sheet for LUMRM and LUMRMB Running Man emergency exit signs, by AimLite (English only).

Download (181.1k)

Permitted voltage drop (EN)

Voltage drop tables per Canadian Electrical Code (English only).

Download (66.59k)
