Peakworks Davit Confined Space Kit: Tripod 3-Way 60 ft + Winch 65 ft

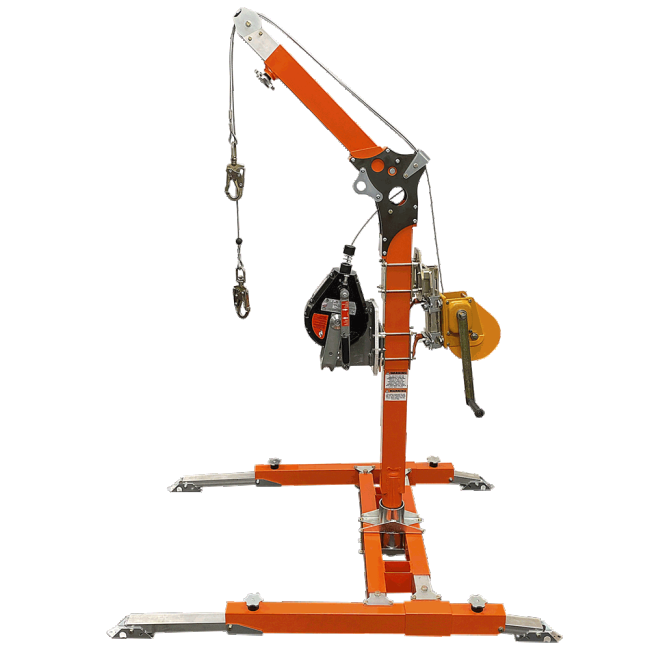

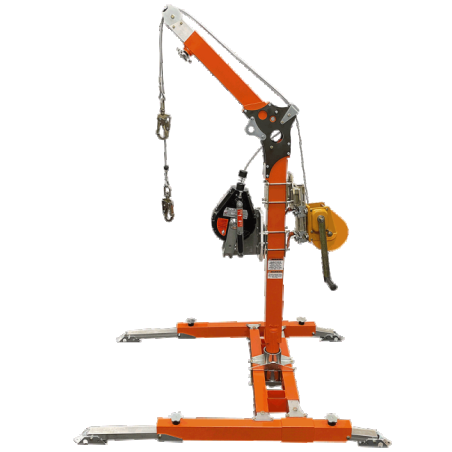

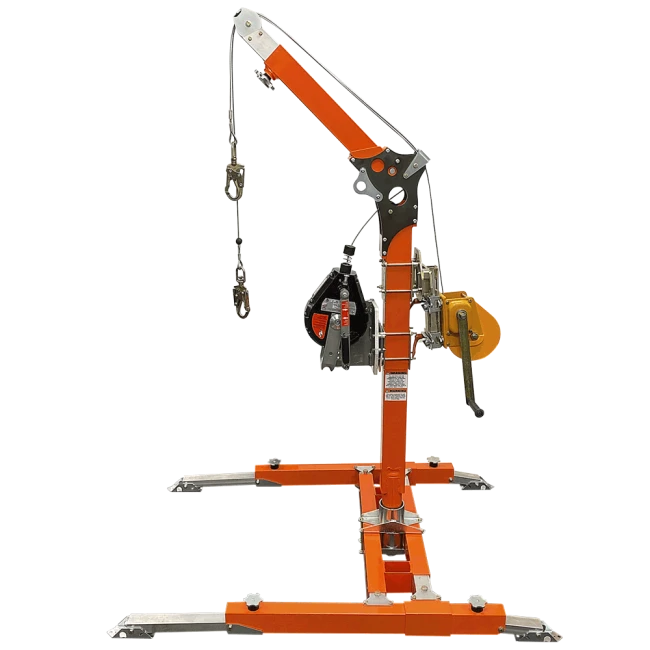

Peakworks Davit Confined Space System — Type 3 SRL 60 ft & Man Winch 65 ft (DSK-60)

The Peakworks DSK-60 davit system is an advanced professional solution for confined space operations that require more than a standard tripod. The davit is a cantilevered arm structure that positions the anchor point in overhang above the access opening, providing a horizontal reach of 28 in and a working height of 84 in. This geometry allows access to offset or obstructed openings that a symmetrically-legged tripod cannot cover. The complete system weighs 89 lb (40.4 kg) and includes the davit arm itself, a Type 3 rescue SRL, and a man/material winch — the three fundamental components of a CSA Z1006-compliant confined space rescue program. Manufacturer specifications: Width 28 in, Height 84 in, Weight 89 lb.

The V845534060 (SRL-73303-60) rescue SRL is a Type 3 device with a 5 mm (3/16 in) galvanized steel cable, 60 ft (18 m) in length, terminated with a snap hook. It provides both instant fall arrest for the worker and assisted recovery via a 4:1 mechanical advantage. The V84537065 (MW-65G) manual winch features a 5 mm galvanized steel cable on a 65 ft (20 m) drum with an integrated swivel hook, enabling controlled lowering and raising of personnel or materials up to 151 kg (310 lb). Both devices operate from the davit anchor points independently and simultaneously.

The davit arm structure is built from high-strength steel, delivering superior mechanical rigidity compared to a standard tripod for overhang access applications. Steel is chosen here for its mechanical properties under high dynamic loading and its ability to maintain arm geometry under load. ⚠ This product is a special order item only — additional lead time required.

Advantages of the DSK-60 Davit System for Difficult Confined Space Access

Horizontal Reach: Access to Offset Openings

The davit's articulated arm positions the anchor point directly over the opening even when the support structure must be placed to the side — for example when access is obstructed by piping, equipment, or a walkway. The 28 in reach is designed for common industrial configurations where a tripod cannot be centered over the opening.

Rigid High-Strength Structure for High Dynamic Loads

Unlike a deployable-leg tripod, an anchored davit offers greater resistance to horizontal forces, which is advantageous in rescue operations involving pendular movements or asymmetric loads. The 84 in working height provides adequate clearance for workers in heavy equipment.

Industries and Work Sites Where This Product Is Required

• Refineries and petrochemical plants — access to tanks and vessels with offset nozzles or connections
• Pulp and paper mills — confined spaces with obstructions around the opening perimeter
• Mining industry — shafts and raises with asymmetric access structure
• Civil engineering — caissons and structures with access constrained by the surrounding framework
• Shipbuilding and marine construction — confined spaces in hulls and double bottoms
• Food processing — silos and tanks with peripheral equipment blocking tripod placement
• Water treatment — basins and chambers with access obstructed by piping or fittings
• Industries with permanent confined spaces — fixed installation for recurring access and regular inspection

Installation, Use, and Inspection of the DSK-60 Davit System

The davit system requires an appropriate anchor base (floor sleeve or base plate, not included) that must be selected, installed, and validated by a qualified engineer based on floor or support structure characteristics. Before each use, inspect the davit arm (structure, pivot, anchor bolts), the SRL (galvanized cable, snap hook, shock indicator, Type 3 mechanism), and the winch (wire rope, brake, swivel hook). Verify that the reach is correctly positioned over the opening and all fasteners are properly torqued. Both devices must be tested unloaded before any operation. Per CSA Z1006, annual documented inspection by a qualified competent person is mandatory. Special order product — allow for lead time. Final sale, non-returnable.

FAQ — Peakworks Davit Confined Space System DSK-60

What is the difference between a davit and a tripod for confined space?

A tripod is positioned over the opening using three legs deployed on the surrounding floor — it is portable, fast to deploy, and suitable for the vast majority of standard confined spaces. A davit is a cantilevered arm anchored to a fixed base that provides access to offset or side-obstructed openings. The davit offers a horizontal reach (28 in for the DSK-60) that a tripod cannot replicate. The trade-off is greater weight (89 lb), the need for a fixed anchor base, and a design typically suited for recurring access at a fixed site.

Is the davit anchor base included in the kit?

No. The anchor base (floor sleeve or base plate) is not included in the DSK-60. It must be selected and installed based on floor or support structure characteristics, and validated by a qualified engineer. Contact Sylprotec for anchor base options compatible with your application.

What is the lead time for this special order product?

The DSK-60 is a made-to-order product (not carried in regular inventory). Lead times vary based on component availability at Peakworks. Contact Sylprotec for an accurate lead time estimate before placing your order.

Complementary equipment suggestions for your confined space system

To compare or expand your confined space program, see the Peakworks 3-way SRL 60 ft tripod kit for standard symmetric access (FPLRK1), the confined space winch kit 65 ft without SRL (FPLRK2), the all-in-one combo SRL 60 ft and winch on tripod (FPLRK3), the standalone Peakworks tripod 7 ft (2 m) with chain and pulley (FPLRKT) and the Koala Behr universal harness with quick-connect buckles, class A (FPH2000A).

Under "Accessories" at the bottom of the page, complete your setup with the Peakworks confined space Y-yoke lanyard (FPLRKL), the DBI-SALA 3M tripod base mount support (FPLR8005048) and the DBI-SALA 3M Advanced carry bag for 7 ft tripod (FPLR9503094).
