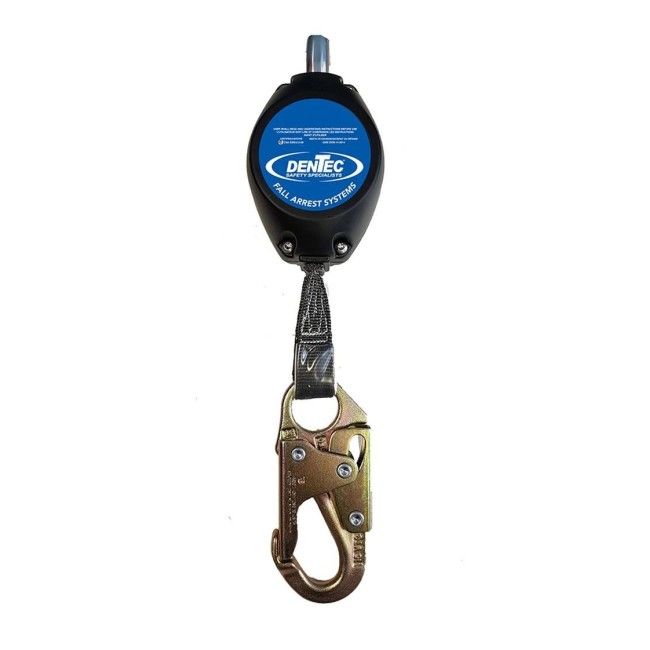

Dentec , 11 ft single leg, Self-Retracting Lifelines, 1 std carabiner
FPLR112115
$287.35
Dentec 11 ft self-retracting lifeline with kevlar webbing, internal absorber and 1 standard carabiner. Capacity 310 lb. Non-LE model, ANSI and CSA.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Dentec 11 ft self-retracting lifeline with kevlar webbing for fall arrest
The Dentec self-retracting lifeline (SRL) is a personal fall limiter equipped with an internal energy absorber. With a length of 11 ft (3.35 m), it retracts automatically to follow the worker's movements and greatly reduces the arrest distance compared with a conventional lanyard. Its webbing is made of kevlar, and the carabiner termination is protected by a UHMWPE sleeve.
Dentec Safety Specialist model 012115. This lifeline complies with ANSI Z359.14-2014 and CSA Z259.2.2-1998. Important: based on the previous CSA standard, it does not protect against sharp edges (leading-edge or LE applications). For that type of use, choose an LE model.
This SRL is fitted with one standard steel carabiner with a 7/8 in (22.22 mm) opening, self-locking with double action. Note that it does not come with a semi-automatic swivel-gate carabiner of ¾ in (such as FPAM88 or FPAM91). With a vertical anchorage, the limiter can support a worker weighing 310 lb (136 kg), including clothing, tools and equipment.
Webbing dimensions: width 1.0 in (25.4 mm), length 11 ft (3.35 m). The arrest distance varies with the anchorage layout; consult the manufacturer's manual for the conditions of use and the required clearance.
Advantages of the Dentec self-retracting lifeline
This SRL offers greater freedom of movement and a reduced arrest distance compared with traditional lanyards.
Lifeline features and safety
- Automatic retraction and internal energy absorber
- Kevlar webbing, termination protected by a UHMWPE sleeve
- Length of 11 ft (3.35 m), reduced arrest distance
- 1 standard steel carabiner, 7/8 in opening, self-locking double action
- Capacity of 310 lb (136 kg), including tools and equipment
- Compliant with ANSI Z359.14-2014 and CSA Z259.2.2-1998 (non-LE model)
Job sites and industries where this lifeline is required
- Construction and general work at heights
- Building maintenance and roofing work (away from sharp edges)
- Scaffolding and framing work
- Industrial maintenance and building mechanics
- Installation of equipment at heights
About the anchorage point
The anchorage point should preferably be located above the level of the harness dorsal D-ring and positioned vertically relative to the user. This lifeline is not designed for horizontal applications or sharp edges. The user must assess the fall distance, the clearance below the worker and the anchorage strength (5000 lb). For more information, consult the manufacturer's manual.
Self-retracting lifeline inspection
The worker is responsible for performing a routine inspection before each use. The worker must check the retraction and locking of the webbing, the fall indicator, the carabiner, and note any sign of degradation, wear or breakage. Replace the equipment at the first sign of failure. This SRL should also be inspected periodically by a qualified person other than the worker, according to the manufacturer's frequency and conditions. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.
Self-retracting lifeline maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the mechanism clean and dry. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Dentec self-retracting lifeline
What is the difference between an SRL and a lanyard with absorber?
The self-retracting lifeline retracts automatically and limits the fall distance, offering more freedom of movement and a shorter arrest than a conventional lanyard of the same length.
Is this lifeline suitable for sharp edges?
No. This model is not certified "Leading Edge" (LE): it must not be used where the webbing could run over a sharp edge. For those situations, choose an LE model.
What is the capacity of this lifeline?
It supports a worker with a total weight of 310 lb (136 kg), including clothing, tools and equipment, with a vertical anchorage.
Suggested complementary products
To complete your fall protection, also consider a self-locking carabiner (FPAM88), an anchorage sling (FPAE), a fixed anchorage point (FPA822), a concrete connector (FPAF075N), a Koala harness with quick buckles (FPH02474A), a Koala harness with grommets (FPH33102A), a Koala harness with pass-thru buckles (FPH33101A) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPLR112115
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Self-retracting lanyard & lifeline
- Name of the product
- Self retracting lifeline (SLR)
- Product code
- FPLR112115
- Approved/Certified
- Complies with ANSI Z359.14-2014 and CSA Z259.2.2-1998
- Manufacturer
- Dentec Safety Specialists
- Country of origin
- United State of America
- Format
- 11 ft / 3.35 m
- Reusable
- Reusable with careful inspection and proper installation
- Maintenance free
- Discard if damaged, contaminated, dirty or worn
- Features
- Maximum stopping distance is UNKNOW with a vertical anchor point
- Additional Features
- This self retracting lifeline does not protect workers from sharp edges also called Leading Edge (LE) applications
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Comfort features
- Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
- Characteristics of the strap or cable
- 1/16" (1.59 mm) thick Kevlar webbing, UHMWEP webbing end protection
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Fitted with a standard 7/8" (22.22 mm) opening steel carabiner. The carabiner is self-locking FPAM88 is not included with this equipment
- Includes
- Equipped with a load indicator that shows when the unit has been subjected to severe force
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Classification
- Type 1
- Material1
- Thermoplastic (TPE)
- Material2
- Kevlar
- Material3
- Steel
- Washable
- Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment
- Length (in/cm)
- 16.3 in / 41.5 cm
- Width (in/cm)
- 4.1 in / 10.5 cm
- Height (in/cm)
- 3.0 in / 7.62 cm
- Weight (lb/kg)
- Not disclosed by the manufacturer
- Sold by
- Unit
- Color
- Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.
- Does not include
- Does not include the semi-automatic carabiner to connect the self retracting lifeline to the anchor point
