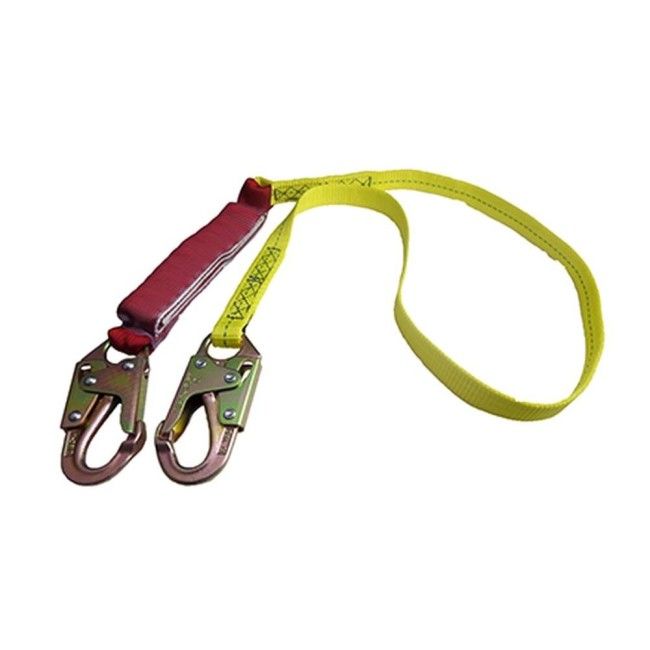

Dentec lanyard with energy absorber and 2 standard carabiners, 100-255 lbs
FPL111601-6
$57.50
Single Dentec polyester lanyard with Shock Pack energy absorber and 2 standard carabiners (¾ in opening). Capacity 100 to 255 lb. CSA and ANSI compliant.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Dentec lanyard with energy absorber and 2 standard carabiners for fall arrest
The Dentec fall arrest lanyard is a single polyester lanyard equipped with a Shock Pack energy absorber and 2 standard carabiners with double-locking action and a ¾ in (19 mm) throat opening. With a 1 in (25 mm) width, it can support a worker weighing 100 to 255 lb (45 to 115 kg), including clothing, tools and equipment. It is the ideal connector between a harness dorsal D-ring and an anchorage point for general work at heights.
Dentec Safety Specialists product code: 16L111601. This lanyard complies with CSA Z259.11-17 and ANSI Z359.13-13. It is available in a 6-foot version and fitted with certification labels at one end.
The energy absorber is designed to reduce the impact force of a fall below 675 lb (306 kg). During a fall, it deploys over a distance of 48 in (4 ft) to reduce the force experienced by the worker at arrest. Once the absorber has deployed, the lanyard and harness must be replaced: it is the sign that the equipment did its job and protected a life.
The two carabiners (hooks) are made of steel and are identical in size. They require a double unlocking action and meet ANSI Z359.1-2007, allowing them to withstand a force of 3600 lb (16 kN) without deforming. The carabiner closest to the energy absorber must be connected to the harness dorsal D-ring.
Advantages of the Dentec energy-absorbing lanyard
This single lanyard combines ease of installation, durability and compliance with Canadian and American standards.
Lanyard features and safety
- Shock Pack energy absorber limiting impact force below 675 lb
- 2 standard steel carabiners, ¾ in opening, 3600 lb resistance
- Absorber deployment over 48 in (4 ft) during a fall
- 1 in wide polyester webbing resistant to acidic chemicals
- Capacity of 100 to 255 lb (45 to 115 kg), including tools and equipment
- Compliant with CSA Z259.11-17 and ANSI Z359.13-13
Job sites and industries where this lanyard is required
- Construction and general work at heights
- Building maintenance and roofing work
- Scaffolding and framing work
- Industrial maintenance and building mechanics
- Installation of structures and equipment at heights
About the anchorage point
The anchorage point should preferably be located above the level of the harness dorsal D-ring and positioned vertically relative to the user. The user must assess the risks of a potential fall: is there enough clear distance free of obstacles below the worker? Are emergency measures in place to recover the worker quickly? Can the anchorage point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.
Safety lanyard inspection
The worker is responsible for performing a routine inspection before each use. The worker must note any sign of degradation, wear, malfunction or breakage, and replace the lanyard at the first sign of failure. This lanyard should also be inspected periodically by a qualified person other than the worker (from every 90 days to yearly depending on the manufacturer and conditions). The recommended lifetime of a lanyard is 5 years. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a lanyard and harness inspection service; to learn more, see the Services tab.
Fall arrest lanyard maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. If your lanyard is too dirty or contaminated, it is time to replace it. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Dentec energy-absorbing lanyard
What is the Shock Pack energy absorber for?
It deploys during a fall to reduce the arrest force experienced by the worker below 675 lb. Once deployed, the lanyard and harness assembly must be taken out of service.
What carabiners come with this lanyard?
Two standard steel carabiners with double unlocking action, a ¾ in opening, compliant with ANSI Z359.1-2007 and resistant to 3600 lb. The one closest to the absorber attaches to the harness dorsal D-ring.
What is the capacity of this lanyard?
It suits a worker with a total weight of 100 to 255 lb (45 to 115 kg), including clothing, tools and equipment.
Suggested complementary products
To complete your fall protection, also consider a self-locking carabiner (FPAM88), an anchorage sling (FPAE), a fixed anchorage point (FPA822), a concrete connector (FPAF075N), a Koala harness with quick buckles (FPH02474A), a Koala harness with grommets (FPH33102A), a Koala harness with pass-thru buckles (FPH33101A) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPL111601-6
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Lanyard
- Product code
- FPL111601-6
- Approved/Certified
- Complies with CSA Z259.11.17 and ANSI Z359.13-13
- Manufacturer
- Dentec Safety Specialists
- Country of origin
- United State of America
- Format
- 6 ft / 1.8 m
- Types of lanyards
- Single lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The energy absorber is designed to reduce the impact force of the fall below 900 lb (4 kN)
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with two standard carabiners with a ¾" / 19 mm opening. They are self-locking and require a double action to open
- Includes
- With an energy absorber Shock Pack
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 100 to 255 lb / 45 to 115 kg
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer.
- Length (in/cm)
- 11 in / 27.94 cm
- Width (in/cm)
- 11 in / 27.94 cm
- Height (in/cm)
- 2.5 in / 6.35 cm
- Weight (lb/kg)
- 3.3 lb / 1.49 Kg
- ***Size and weight according to selection***
- Based on the FPL5402-6
- Sold by
- Unit
- Color
- Yellow/Red
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 100 lb to 255 lb / 45 kg to 115 kg, including clothing, tools and equipment
