Peakworks Model SRL-70602-6LE, 6 ft twin leg with Dyneema webbing, 2 rebars hooks
FPLR70602-6LE
$739.40
Peakworks 6 ft twin-leg leading-edge self-retracting lifeline, Dyneema webbing, aluminum scaffold hooks. Internal absorber. Capacity 310 lb.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

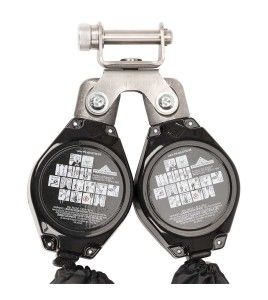

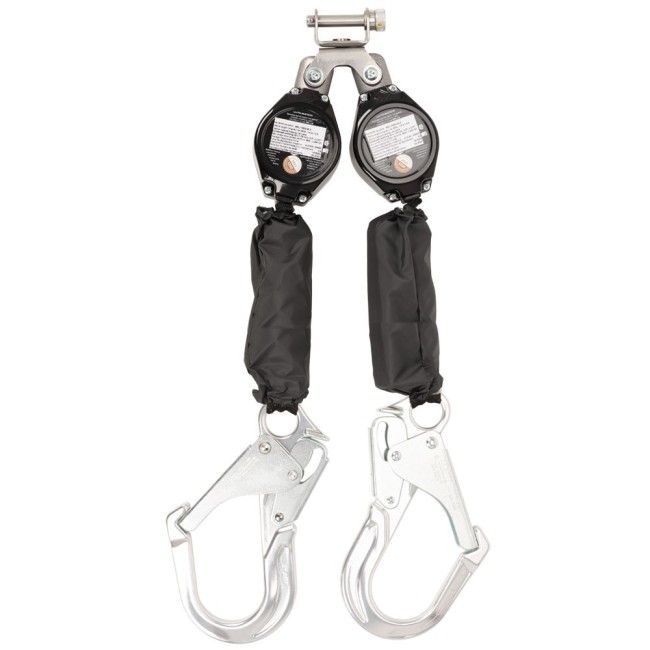

Peakworks 6 ft twin-leg leading-edge self-retracting lifeline with aluminum scaffold hooks
The Peakworks twin-leg (Y) self-retracting lifeline is a personal fall limiter with two legs to stay "100% tied off" during transfers, equipped with an internal energy absorber and a length of 6 ft (1.83 m). Its webbing is made of Dyneema® (0.8 in wide × 0.07 in thick), renowned for its cut resistance and suitable for leading-edge applications. Its aluminum scaffold hooks reduce the weight carried by the worker.
Peakworks product code: V845626006LE, model SRL-70602-6LE. This lifeline complies with ANSI Z359.14-2014 Class B and CSA Z259.2.2-2017. Designed for leading-edge (LE) applications, it protects against sharp edges according to the manual's conditions of use.
It is fitted with two aluminum scaffold hooks with a large 2-1/2 in (64 mm) opening, self-locking with double action. With a vertical anchorage, this fall limiter can support a worker weighing 310 lb (140 kg), including clothing, tools and equipment. The arrest distance varies with the anchorage layout; consult the manufacturer's manual for the required clearance.
Advantages of the Peakworks self-retracting lifeline
This twin-leg LE SRL combines continuous "100% tie-off", lightweight aluminum hooks and cut resistance.
Lifeline features and safety
- Twin-leg Y design to stay "100% tied off" during transfers
- Aluminum scaffold hooks 2-1/2 in (lightweight)
- Dyneema® webbing highly cut-resistant (leading edge)
- Internal energy absorber, length 6 ft (1.83 m)
- Capacity of 310 lb (140 kg), including tools and equipment
- Compliant with ANSI Z359.14-2014 Class B and CSA Z259.2.2-2017
Job sites and industries where this lifeline is required
- Construction and work at heights, including leading-edge applications
- Roofing work and areas near sharp edges
- Scaffolding and framing work
- Industrial maintenance and building mechanics
- Scaffold work at heights near sharp edges
About the anchorage point
The anchorage point must be positioned according to the manufacturer's instructions for leading-edge applications. The user must assess the fall distance, the clearance below the worker and the anchorage strength (5000 lb). The large-opening scaffold hooks attach directly to tubes; the twin-leg format keeps the worker tied off during transfers. For more information, consult the manufacturer's manual.
Self-retracting lifeline inspection
The worker is responsible for performing a routine inspection before each use. The worker must check the retraction and locking of the webbing, the fall indicator, the carabiners, and note any sign of degradation, wear or breakage. Replace the equipment at the first sign of failure. This SRL should also be inspected periodically by a qualified person other than the worker, according to the manufacturer's frequency and conditions. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.
Self-retracting lifeline maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the mechanism clean and dry. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Peakworks self-retracting lifeline
Why aluminum carabiners?
The aluminum scaffold hooks offer a large opening (2-1/2 in) to attach to tubes while reducing the total weight carried by the worker.
What is a "Leading Edge" (LE) lifeline?
An LE lifeline is designed to withstand abrasion over a sharp edge during a leading-edge fall, where the webbing or cable could run over a cutting edge. Follow the manufacturer's conditions of use.
What is the capacity of this lifeline?
It supports a worker with a total weight of 310 lb (140 kg), including clothing, tools and equipment, with a vertical anchorage.
Suggested complementary products
To complete your fall protection, also consider a self-locking carabiner (FPAM88), an anchorage sling (FPAE), a fixed anchorage point (FPA822), a concrete connector (FPAF075N), a Koala harness with quick buckles (FPH02474A), a Koala harness with grommets (FPH33102A), a Koala harness with pass-thru buckles (FPH33101A) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPLR70602-6LE
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Self-retracting lanyard & lifeline
- Name of the product
- Twing legs Self retracting lifeline for downslope application (SLR-LE)
- Product code
- FPLR70602-6LE
- Approved/Certified
- Complies with ANSI Z359.14-2014 Class B, and CSA Z259.2.2-2017
- Manufacturer
- Peakworks
- Country of origin
- Germany
- Format
- 6 ft / 1.83 m
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The maximum stopping distance is 1 ft (0.31 m) with a vertical anchor point and 4 ft (1.20 m) for a horizontal anchor
- Additional Features
- Self-retracting lanyards with the "LE" feature is designed to protect the worker when working near a sharp edge
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Comfort features
- Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
- Characteristics of the strap or cable
- Dyneema® webbing 0.07" (1.75 mm) thick
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with two 2-1/2" (64 mm) wide-opening aluminium scaffold-type carabiners. Carabiners are self-locking and unlock with a double action
- Setback requirements for horizontal use
- The minimum setback required to install the anchor point shall be a minimum of 12" (30 cm) from the edge
- The amplitude of the lateral movement in horizontal position
- When installed horizontally, the range of lateral movement must be limited to within 59" (1.50 m) on either side of the centerline formed with the anchor point
- Includes
- Equipped with a load indicator that shows when the unit has been subjected to severe force
- Includes 2
- Equipped with an external shock pact unit (for leading-edge applications)
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Classification
- B Class, LE
- Operating temperature
- For use in temperatures from -22°F to 122°F / -30°C to 50°C
- Form
- «Y»
- Material1
- Aluminium
- Material2
- Dyneema®
- Material3
- Steel
- Washable
- Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment
- Length (in/cm)
- 12 in / 30.48 cm
- Width (in/cm)
- 11.87 in / 30.14 cm
- Height (in/cm)
- 13 in / 33 cm
- Weight (lb/kg)
- Not disclosed by the manufacturer
- Availability
- Please note: To obtain this item, please allow 1 to 4 weeks for delivery
- Sold by
- Unit
- Color
- Black/Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.
