Confined Space Kit: Tripod, 65 ft (20 m) Man Winch and Bag

Peakworks Confined Space Kit with Man/Material Winch — 65 ft (CSK2-65)

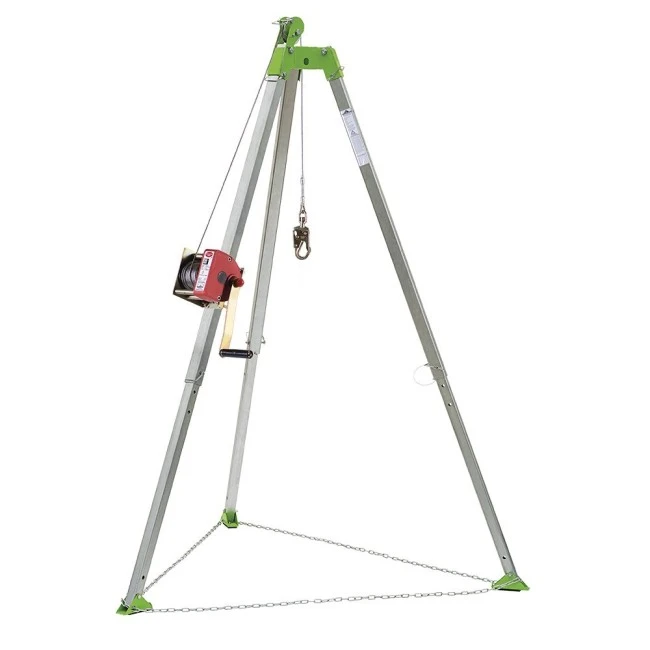

The Peakworks CSK2-65 confined space kit is the go-to solution when the primary need is controlled lowering and raising of personnel or materials in a confined space. It pairs a 7 ft (2 m) aluminum tripod with a V84537065 (MW-65G) man/material winch equipped with a 65 ft (19.8 m) galvanized steel wire rope. The winch attaches via a back plate and four bolts, with a carabiner and split pulley included in the kit. This streamlined configuration suits teams who already have a separate SRL for fall arrest and want to maximize their vertical handling capability on the job site.

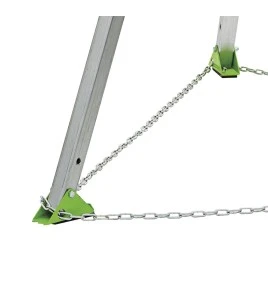

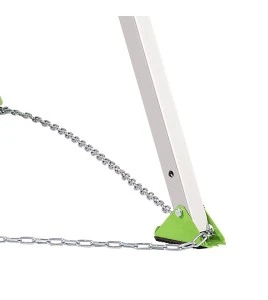

The Peakworks aluminum tripod is recognized for its robust leg-locking system and precise adjustability. Each leg adapts independently to the installation surface, whether it is an industrial floor, a manhole frame, or a sloped roadway. Non-slip rubber safety feet on each leg ensure optimal stability under dynamic loading during lifting operations. The steel head is equipped with a safety chain and two anchor points for simultaneous connection of the winch and a secondary fall arrest device.

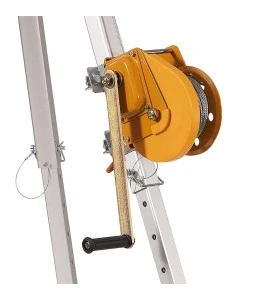

The MW-65G winch has a capacity of 151 kg (310 lb), covering the combined weight of the worker, tools, and protective clothing. Its 5 mm (3/16 in) galvanized steel wire rope resists corrosion in humid, chemically aggressive, or thermally challenging environments. The operating temperature range of −35°C to +35°C makes it usable on northern job sites throughout the year.

The high-strength aluminum frame and stainless steel hardware deliver extended service life despite heavy-use cycles. The material selection minimizes the total weight of the assembly, making transport between sites easier and reducing operator fatigue during frequent deployments.

Advantages of the CSK2-65 for Confined Space Handling

Versatile Man/Material Winch

Unlike a Type 3 SRL limited to personnel rescue, the MW-65G winch can lower and raise both personnel and materials interchangeably. This is a key advantage in industrial sectors where tools, parts, or containers must be regularly moved in and out of confined spaces.

Simple, Self-Sufficient Setup

The CSK2-65 kit is designed for single-person installation. The winch mounts via a standard back plate with four bolts — no welding or on-site mechanical adaptation required. The kit is ready to use after a simple fastener check.

Industries and Work Sites Where This Product Is Required

• Municipalities — entry into deep sewer manholes and handling of heavy equipment
• Oil and gas — lowering tooling and recovery inside tanks and vessels
• Chemical industry — transferring containers into buried tanks or reactors
• Water treatment — replacing submersible pumps and handling equipment in wet wells
• Civil engineering — work in deep wells and caissons requiring heavy-tool lowering
• Mining — material handling in raises and service shafts
• Food processing — cleaning and maintenance requiring equipment lowering into silos
• Utilities — maintenance of cable vaults and underground utility galleries with equipment

Installation, Use, and Inspection of the CSK2-65 Kit

Before each use, visually inspect the tripod (legs, locking, feet), safety chain, anchor points, and winch (wire rope, brake, swivel hook, back plate). Position the tripod over the opening, lock all legs, and secure the safety chain. Mount the winch on the upper anchor points via the back plate and verify all four bolts are properly tightened. Ensure a separate fall arrest device is in place for the worker before any descent — the winch alone is not a fall arrest device. CSA Z1006 requires annual inspection by a qualified competent person. Final sale — non-returnable product.

FAQ — Peakworks Confined Space Kit with MW-65G Winch

Does this kit include a fall arrest SRL for the descending worker?

No. The CSK2-65 kit includes only the tripod and the man/material winch. The winch provides controlled descent and ascent, but it is not a fall arrest device. A separate SRL or compliant fall arrest lanyard must be used to protect the worker in the confined space. For an all-in-one kit including a Type 3 SRL, see the FPLRK1 (SRL only) or FPLRK3 (SRL + winch) kits.

Can the MW-65G winch be used with a tripod from another manufacturer?

The MW-65G uses a standard back plate mounting with four bolts and can theoretically be adapted to other certified tripods or anchor structures with compatible attachment points. However, Peakworks certifies and warrants system performance only when original Peakworks components are used together.

What is the maximum recommended cable depth for this winch in a confined space?

The MW-65G is supplied with 65 ft (19.8 m) of galvanized cable, suitable for most industrial and municipal confined spaces (manhole depths, underground tanks, etc.). Beyond approximately 20 m depth, other engineered solutions may be required. Contact Sylprotec to validate the appropriate configuration for your specific application.

Complementary equipment suggestions for your confined space system

To optimize your confined space protection, see the 3-way tripod and SRL 60 ft confined space kit (FPLRK1), the all-in-one 3-way SRL 60 ft and winch combo kit (FPLRK3), the davit 3-way 60 ft system for offset access with winch (FPLRK4), the standalone Peakworks tripod 7 ft (2 m) with chain and pulley (FPLRKT) and the Peakworks confined space Y-yoke lanyard (FPLRKL).

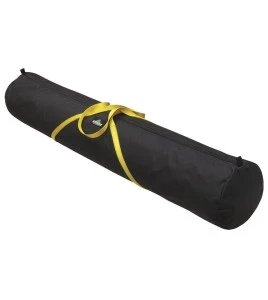

Under "Accessories" at the bottom of the page, complete your setup with the DBI-SALA 3M tripod base mount support (FPLR8005048), the DBI-SALA 3M Advanced carry bag for 7 ft tripod (FPLR9503094) and the larger DBI-SALA 3M carry bag size for 9 ft tripod (FPLR9503095).
