Lad-Saf DBI-SALA 3M tension indicator ring 9504239

Lad-Saf DBI-SALA 3M tension indicator ring for vertical safety system

3M purchase code: 7100310450, model: 9504239

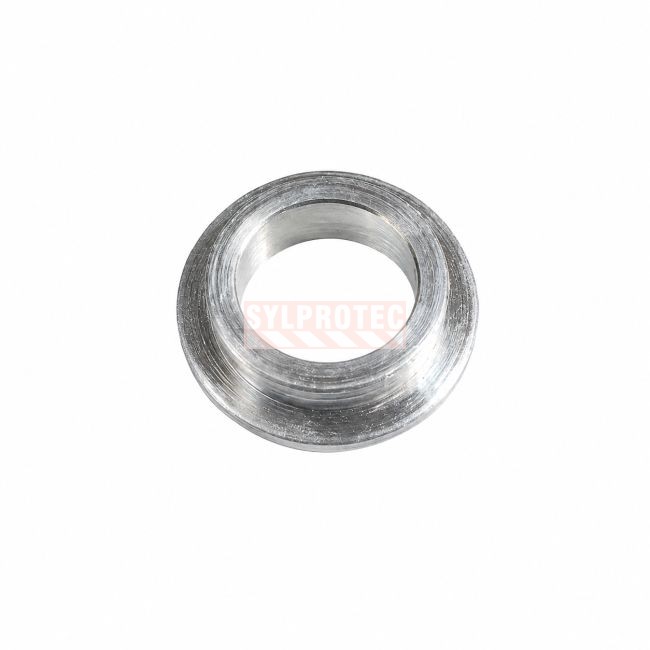

The Lad-Saf DBI-SALA 3M 9504239 tension indicator ring is a small metal washer designed to provide a visual confirmation that the cable of a Lad-Saf vertical safety system is correctly tensioned. Installed at the tensioned end of the system, usually at the bottom of the ladder near the tension rod assembly, it compresses as the installer tightens the tension hardware to the prescribed value. The position of the ring then becomes a simple visual reference that helps verify at a glance that cable tension has remained within the intended range after installation or maintenance.

During initial installation or retensioning, the ring is placed between elements of the tension assembly. As the tension rod is progressively tightened, the installer observes the deformation of the ring and confirms that it has compressed according to the indication provided by the manufacturer. This discreet accessory contributes to the overall performance of the Lad-Saf system by helping to maintain the correct cable tension, which is essential for the Lad-Saf X2 or X3 sleeve to travel and lock properly in the event of a fall.

Manufactured in the United States and compatible with Lad-Saf DBI-SALA 3M vertical cable systems on fixed ladders, the tension indicator ring integrates at the cable end without changing the behaviour of the other system components. On its own, it is not a fall arrest device but an end component that helps maintain the integrity of cable tension in support of ANSI Z359.16 and OSHA 1910.140 and 1926.502 requirements.

Benefits of the Lad-Saf tension indicator ring

• Provides a visual confirmation that the Lad-Saf cable tension has been correctly applied during installation or retensioning.
• Located at the tensioned end of the system, near the tension rod, without interfering with the movement of the Lad-Saf sleeve along the cable.
• Simple, passive accessory that makes routine cable tension checks easier for a competent person.
• Helps maintain system performance by supporting the cable tension conditions expected by the ANSI Z359.16 standard.
• Designed for Lad-Saf DBI-SALA 3M vertical cable systems installed on fixed ladders.

Features and safety of the tension indicator ring

• Product type: tension indicator ring for Lad-Saf vertical cable safety system.
• Approximate dimensions: height 0.25 in (0.6 cm), width 0.7 in (1.8 cm), length 0.75 in (1.9 cm).
• Approximate weight: 0.002 lb (very lightweight accessory that adds negligible load at the cable end).
• Material: metal (alloy not specified in the technical documentation, designed to work with the metallic parts of the tension assembly).
• Positioning: tensioned end of the Lad-Saf system, generally at the bottom of the ladder, integrated into the tension rod assembly.
• Compatibility: Lad-Saf DBI-SALA 3M vertical cable safety systems used with an X2 or X3 sleeve.
• Regulatory context: supports maintaining cable tension in a system designed to meet ANSI Z359.16 and used under OSHA 1910.140 and 1926.502 requirements.

Compatibility with the Lad-Saf system and sleeve

The tension indicator ring is not an anchorage point or a connector, but a component of the tensioned cable end. It is intended to work with a complete system that includes the upper and lower bracket assemblies, the pre-swaged 3/8 in cable, the cable guides and the Lad-Saf X2 or X3 sleeve. Adequate cable tension is critical for the sleeve to travel smoothly along the fixed ladder and to lock correctly in the event of a fall.

Before the system is placed into service, the installer follows 3M instructions to apply the prescribed tension using the tension rod and termination hardware. The indicator ring helps confirm that this tension has been reached by observing its compression. During periodic inspections, the position of the ring also serves as a quick reference: if the ring is no longer in the expected compressed position, cable tension must be checked and, if necessary, adjusted by a competent person.

Job sites and typical applications

• Vertical access on fixed ladders in industrial, manufacturing and processing facilities.
• Towers, tanks, silos, process structures and energy installations equipped with Lad-Saf systems.
• Sites where frequent cable tension checks are required to maintain regulatory compliance.
• Environments where a simple visual indication of proper cable tension helps maintenance and safety teams.

Installing and positioning the Lad-Saf tension indicator ring

The tension indicator ring is installed at the same time as the Lad-Saf cable tension assembly. It is inserted at the location specified in the 3M technical documentation and is progressively compressed as the tension rod is tightened. No changes are made to the existing bracket assemblies or cable guides, and the ring must never be used as a connection point for a lanyard or carabiner.

As with the rest of the Lad-Saf system, installation, initial tensioning and any retensioning must be carried out by a competent person in accordance with the manufacturer's instructions and local regulations. The indicator ring helps that person document and verify that the cable tension has been applied and maintained according to specification.

Inspecting the Lad-Saf tension indicator ring

Before each use of the Lad-Saf system, a visual inspection must be performed by the user or a competent person. This inspection includes the bracket assemblies, the cable, the cable guides and the tension indicator ring. The ring must be checked to ensure it is still in place, free of cracks, deformation or heavy corrosion, and that its compression still corresponds to the expected condition when the cable is correctly tensioned.

Any system that has arrested a fall or raises doubt about cable tension must be removed from service and evaluated by a competent person in line with ANSI Z359.16 and OSHA 1910.140 and 1926.502. Any repair or return to service of a Lad-Saf system must follow 3M DBI-SALA instructions or be performed by an authorized representative in writing.

Maintenance of the Lad-Saf tension indicator ring

The tension indicator ring typically requires little maintenance. It must nevertheless be kept clean, free of debris and reasonably protected from corrosion. When cleaning the Lad-Saf system, the ring can be wiped with a soft cloth lightly moistened with water and then allowed to air dry. No surface treatment or lubricant should be applied without the manufacturer's approval, to avoid changing the way the ring compresses or behaves in the assembly.

When the Lad-Saf system is not in use, storage should limit prolonged exposure to highly corrosive environments. Regular inspections of the entire cable termination, including the indicator ring, help detect deterioration early.

FAQ about the Lad-Saf tension indicator ring

What is the function of the tension indicator ring in a Lad-Saf system?

The ring provides a visual reference to confirm that the tension applied to the Lad-Saf cable is adequate. Its compression shows that the tension rod has been tightened into the intended range defined by the manufacturer.

Where is the ring installed on the system?

The ring is installed at the tensioned end of the Lad-Saf cable, generally at the bottom of the ladder, as part of the tension rod assembly. It does not replace bracket assemblies or cable guides, but completes the termination hardware.

Does the ring replace a formal inspection of the system?

No. The ring makes routine visual checks easier but does not replace a full formal inspection of the Lad-Saf system by a competent person as required by ANSI Z359.16 and applicable regulations.

Which components must be used with the ring?

It must be used with a complete Lad-Saf vertical cable safety system that includes bracket assemblies, a pre-swaged cable, cable guides and a Lad-Saf X2 or X3 sleeve connected to the sternal D-ring of a Class L safety harness.

Can the ring be replaced or adjusted on an existing system?

Any modification to the tension assembly, including replacement of the tension indicator ring, must follow 3M instructions and be carried out by a competent person. If the ring is damaged or no longer provides a reliable indication, the system must be removed from service until it is brought back into conformity.

Complementary suggestions for fall protection equipment

To complete your personal protective equipment for vertical access on a fixed ladder, add a Class L sternal D-ring safety harness (FPH140323XCAL), cut-resistant gloves (G378GKGVBE), safety glasses (YASF602), a protective helmet (TA80) held by a chin strap (TA14CS), a high-visibility garment (V5514F) and corded earplugs (OA111).

To build the complete vertical fall arrest system, this tensioning component is used together with other elements of the Lad-Saf DBI-SALA 3M range: a complete vertical cable safety system (FPLS6100219), a removable Lad-Saf sleeve selected to match the 3/8 in (9.5 mm) cable diameter: X2 (FPACC6160030) or X3 (FPACC6160054), intermediate cable guides and end-of-line guides, as well as a RollGliss R550 rescue and descent device (FPLR5503325). To protect the area at the base of the ladder during installation or maintenance, a DANGER barricade tape (ECT3RE9) is also recommended.
