Inner collar hood and hard hat kit 3M Versaflo S-665

Inner collar hood and hard hat kit 3M Versaflo S-665

3M manufacturer code: 7100307875, model S-665

This item is not kept in stock. Please allow 16 days for delivery.

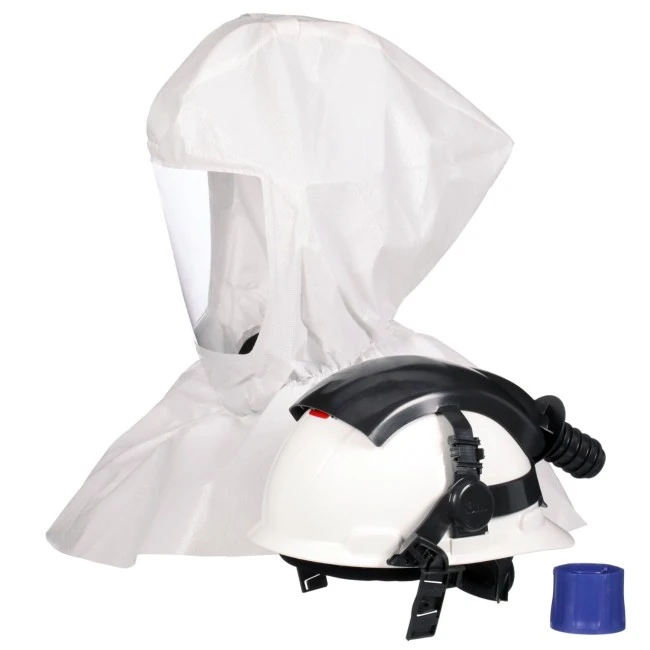

The 3M Versaflo S-665 assembly pairs an inner collar hood with a hard hat to prepare equipment for cleaning, painting and assembly. The S-605 polypropylene coated nonwoven polypropylene hood comes with the S-960 adapter and H-701SFR-UV hard hat. The textile can be replaced while keeping its role distinct from that of the reusable support. Before shop use, an approved tube and air supply must complete this assembly, which provides no filtration by itself.

Features and benefits of the inner collar hood

• S-605 inner collar hood is included in the assembly.
• Textile uses polypropylene coated nonwoven polypropylene.
• S-960 adapter mounts the hood on the specified hard hat.
• White H-701SFR-UV hard hat has a ratchet and UV indicator.
• Replaceable textile remains distinct from the hard hat and respiratory air supply.

Applications in assembly and cleaning

Cleaning and mechanical assembly stations in general manufacturing or transportation are among the uses to assess. Pharmaceutical and chemical settings are also listed, with air supply selected according to the hazard. For painting, do not infer vapour protection from the textile or hard hat; it depends on the complete respiratory system.

Compatibility, suspension and configurations

The S-665 includes S-605, S-960 and H-701SFR-UV. It is a hard hat assembly without an S-950 suspension to add. The tube and air supply must belong to the approved combination. NIOSH approval concerns the complete system without assigning a protection factor to the hood alone.

Installation and adjustment

Fit S-960 and S-605 following the H-700 hard hat instructions. Wear the brim facing backwards and adjust the ratchet. Check inner collar positioning and the respiratory connection before testing the combination. Do not add hard hat accessories not approved with S-960.

Use limitations

Do not use this system in atmospheres containing less than 19.5% oxygen, with unknown contaminant concentrations, or that are immediately dangerous to life or health (IDLH). The S-605 does not filter air. It is not intended for high heat, flames or sparks and is not rated fluid resistant. The S-960 assembly provides no electrical protection. ANSI/ISEA Z89.1-2014, Type I and CSA Z94.1-15, Type I concern H-700 hard hat impact protection in the described configuration.

Care, storage and replacement

Before use, check the inner collar, textile and visor, then the hard hat and adapter. Replace a soiled or damaged hood. Clean reusable elements according to their instructions and check attachments before refitting the textile. Keep spare parts clean during storage. The absence of natural rubber latex applies to S-series hoods.

FAQ: the S-665 inner collar hood and hard hat kit

What does the S-665 assembly include?

The S-605 inner collar hood, S-960 adapter and H-701SFR-UV hard hat. The tube and air supply remain to be selected.

Is the support S-950 suspension?

No. This configuration uses S-960 and the supplied hard hat. Do not combine this assembly with S-950 suspension.

Can the textile be renewed without changing the hard hat?

The S-605 is the corresponding replacement hood. Inspect the hard hat and adapter before reusing them with new textile.

Is this hood suitable for sparks?

No. It is not intended for sparks, flames or high heat. Choosing a hard hat does not change that textile limitation.

Does the assembly retain electrical protection?

No. The hood, S-960 and H-700 hard hat combination provides no electrical hazard protection.

Complementary suggestions

For a technician preparing the inner collar hood before checking an outdoor installation, plan winter gloves (GS18WTFN) with nitrile foam coating and a waterproof membrane for cold handling. Cee Tec glasses (YA12E93103) with yellow lenses serve outside the hood. An Americana climbing style helmet (TA222) remains separate equipment from the supplied assembly. The high visibility traffic worker shirt (VV17) and warning line (EFLAC) with pennants organize movement around the worksite.

For assembly replacements, the hood (RS605) renews the textile and the adapter (RS960) replaces the corresponding support. If the task calls for another textile choice, the hard hat (RS867) assembly uses an S-807 sealed seam hood. For a configuration without a hard hat, the suspension (RS855) assembly pairs an inner collar with reusable suspension. The industrial (RVTR600IHK) kit provides a separate powered configuration with a hard hat; select these alternatives as complete assemblies.
