Portable differential pressure monitor with an accuracy within 3% of full scale. Ideal for abatement

The differential pressure sensor: the gold standard for sensitive environment control

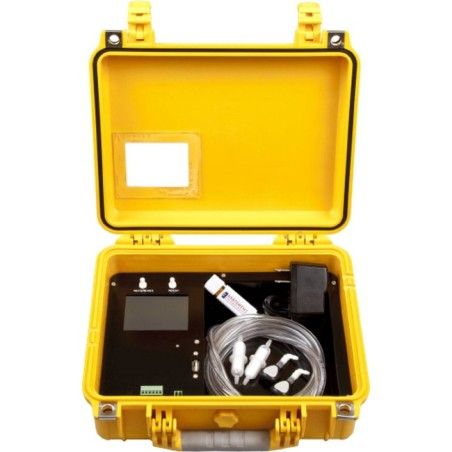

Need a reliable solution to monitor pressure between two spaces? The differential pressure sensor from Abatement Technologies is engineered to meet the highest standards in contamination control. Housed in an ultra-durable carrying case, it offers a mobile, long-lasting, and precise solution for maintaining pressure integrity in controlled zones.

A built-in viewing window on the top of the case allows users to check readings instantly without opening the unit. The measurement scale is available in inches of water (inAq) or pascals (Pa), with an accuracy of ±3% of full scale. Sold individually, this sensor is ideal for decontamination protocols, isolation rooms, and quality control applications.

Technical features of the differential pressure sensor

The Abatement Technologies differential pressure sensor is designed for professional use in critical environments:

• Measurement range: from -25 Pa (-0.1 inAq) to +25 Pa (+0.1 inAq)
• Accuracy: ±3% of full scale
• Readings visible through a built-in window on the case
• Integrated visual and audible alarms
• Programmable for interval-based readings
• Data export in CSV format via included USB key
• Lithium-ion polymer battery with up to 6 months of autonomy
• Operating temperature: 5°C to 55°C (41°F to 131°F)
• Dimensions: 12 in (W) x 10 in (H) x 5 in (D)
• Weight: 5 lb
• Includes ultra-resistant transport case

Included accessories with the differential pressure sensor

Each unit comes with a complete set of accessories for immediate deployment:

• 1 battery charger with 10 ft power cable
• 1 clear rubber hose (1/8 in inner diameter, 10 ft long)
• 2 quick-connect adapters for clear rubber tubing
• 2 90° elbow fittings (1/8 in)
• 2 barbed tips (1/8 in) for 10 µm particles
• 1 USB key (2 GB) for data transfer

Additional accessories such as a wall mount or compact printer are available upon request.

Why pair the AeroTrak 9303 particle counter with your pressure sensor?

For complete air quality monitoring, the AeroTrak 9303 particle counter is the perfect complement. It measures airborne particles from 0.3 to 25 µm with a flow rate of 2.83 L/min. Compliant with ISO 21501-4 and calibrated with NIST-traceable PSL spheres, it ensures high-precision particle analysis.

Equipped with a touchscreen, USB port, built-in alarms, and internal memory, the AeroTrak 9303 provides fast, reliable data on particulate contamination. Used alongside the differential pressure sensor, it offers a comprehensive solution for maintaining cleanroom and controlled environment standards.

FAQ about the differential pressure sensor:

What is the battery life of the sensor?

Up to 6 months in battery mode, depending on the frequency of programmed readings.

Can I view the data without opening the case?

Yes, a transparent window on the top of the case allows you to read measurements directly.

Is it suitable for hospital or pharmaceutical environments?

Absolutely. It’s designed for cleanrooms, isolation areas, laboratories, and any space requiring precise pressure monitoring.
